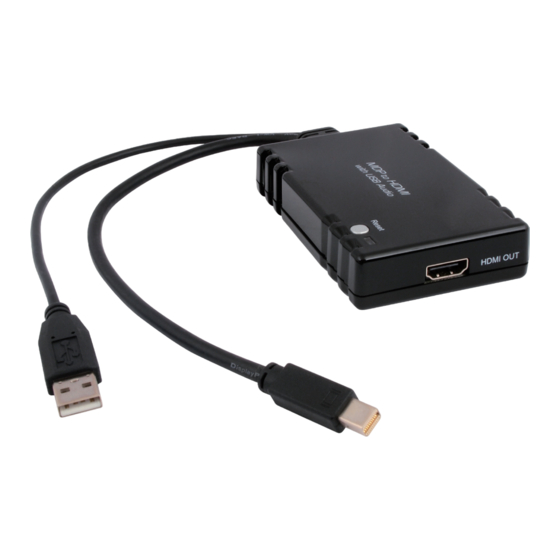

Mini-displayport to hdmi converter

Advertisement

Quick Links

CMDPH-2C
Mini-DisplayPort to HDMI
Converter
Operation Manual
CMDPH-2C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMDPH-2C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cypress CMDPH-2C

  • Page 1 CMDPH-2C Mini-DisplayPort to HDMI Converter Operation Manual CMDPH-2C...
  • Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
  • Page 3: Safety Precautions

    Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:  Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel ..............3 Top Panel ..............
  • Page 5: Introduction

    1. Introduction Having MAC /PC / Notebook to display on an HDTV or monitor may become easy with Mini DisplayPort to HDMI Converter. It allows users to do so by simple connection with built-in USB power cable. This dveice is HDMi v1.3(with Deep Color Video) &...
  • Page 6: Specifications

    6. Specifications TMDS Clock Frequency 2.7Gbps Input ports 1 x Mini-DisplayPort (Male type), 1 x USB Output port 1 x HDMI (Female type) Input Resolution 480i ~1080p, VGA ~ WUXGA Output Resolution 480i ~1080p, 1920 x 1200@60Hz, VGA~WUXGA I/O Audio Sample Rate Up to 48 kHz I/O Audio Support PCM 2CH...
  • Page 7: Operation Controls And Functions

    7. Operation Controls and Functions 7.1 Front Panel MDP & USB INPUT: Connect each one of this cable to your input source ① equipment’s output port for both MDP signal sending and power supply and or audio signal. There are 2 ways to output audio sound and one is from the source equipment’s speaker and the other is from USB to HDMI.
  • Page 8: Top Panel

    7.3 Top Panel . RESET: Press this key only when the image is not displaying. Press it repeatedly until the image turns out. . Power LED: The red LED will illuminate when the USB power is connected.
  • Page 9: Connection And Installation

    8. Connection and Installation Apple HDTV Monitor...
  • Page 10 Acronyms Acronym Complete Term HDCP High-bandwidth Digital Content Protection Mini DisplayPort...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CMDPH2C...
