- Page 1 CP-298D DVI to DVI Scaler Box Operation Manual CP-298D...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Hardware Description………………...……..….....…… Front Panel ................Rear Panel …………………………………………..…….… Top Panel ………………………….………………..…….… 8. Connection and Installation....…………..…..…..…... Acronyms …….………....…………..…..…...…... -
Page 5: Introduction
1. Introduction This Scaler Box is design to display your DVI images on the HDTV with better viewing image. It can upscale DVI input sources to DVI output for wide-range of HD resolutions; the resolution support XGA/UXGA/720p/1080p/ 1366 x 768/1440 x 900/1400 x 1050. This unit allows user to with a variety of output resolutions and adjust for the best picture quality. -
Page 6: Specifications
6. Specifications TMDS Clock Frequency 225MHz Input port 1 x DVI Output port 1 x DVI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 114 (W) x 65 (D) x 26 (H) Weight(g) Chassis Material Plastic Silkscreen Color Black Power Consumption 2.7W... -
Page 7: Hardware Description

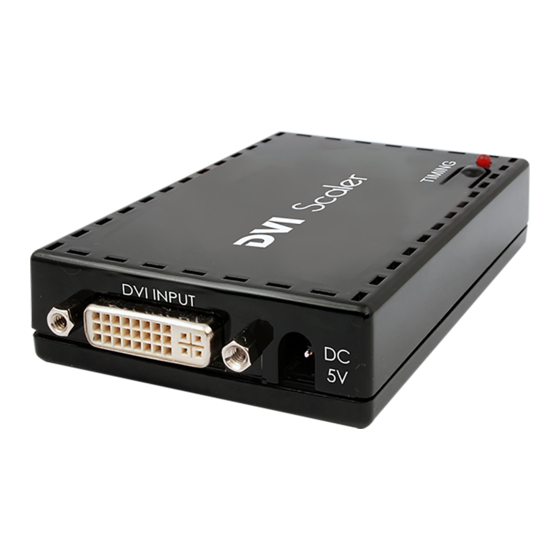

7. Hardware Description The following sections describe the hardware components of the unit. 7.1 Front Panel DVI INPUT ① DVI INPUT: This slot is where you plug your input source equipment with DVI cable for source signal sending. ② DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. -
Page 8: Top Panel
7.3 Top Panel ① Timing button: Press this button once to show both input and output display resolution and while OSD is still on press it again to select output resolution from 720p to 1080p/1280x800/1366x768/1920x1200(RB). ② Power LED: This LED will illuminate when power is connected. -
Page 9: Connection And Installation
8. Connection and Installation HDTV / LCD Monitor... -
Page 10: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Video Graphics Array WUXGA Wide Ultra Extended Graphics Array...
