Section 7. Retractable Starter - Kohler Command PRO CS Service Manual

WARNING: Spring Under Tension!
Retractable starters contain a powerful, recoil spring that is under tension. Always wear safety goggles when servicing
retractable starters and carefully follow instructions in this section for relieving spring tension.
Starter
Rope

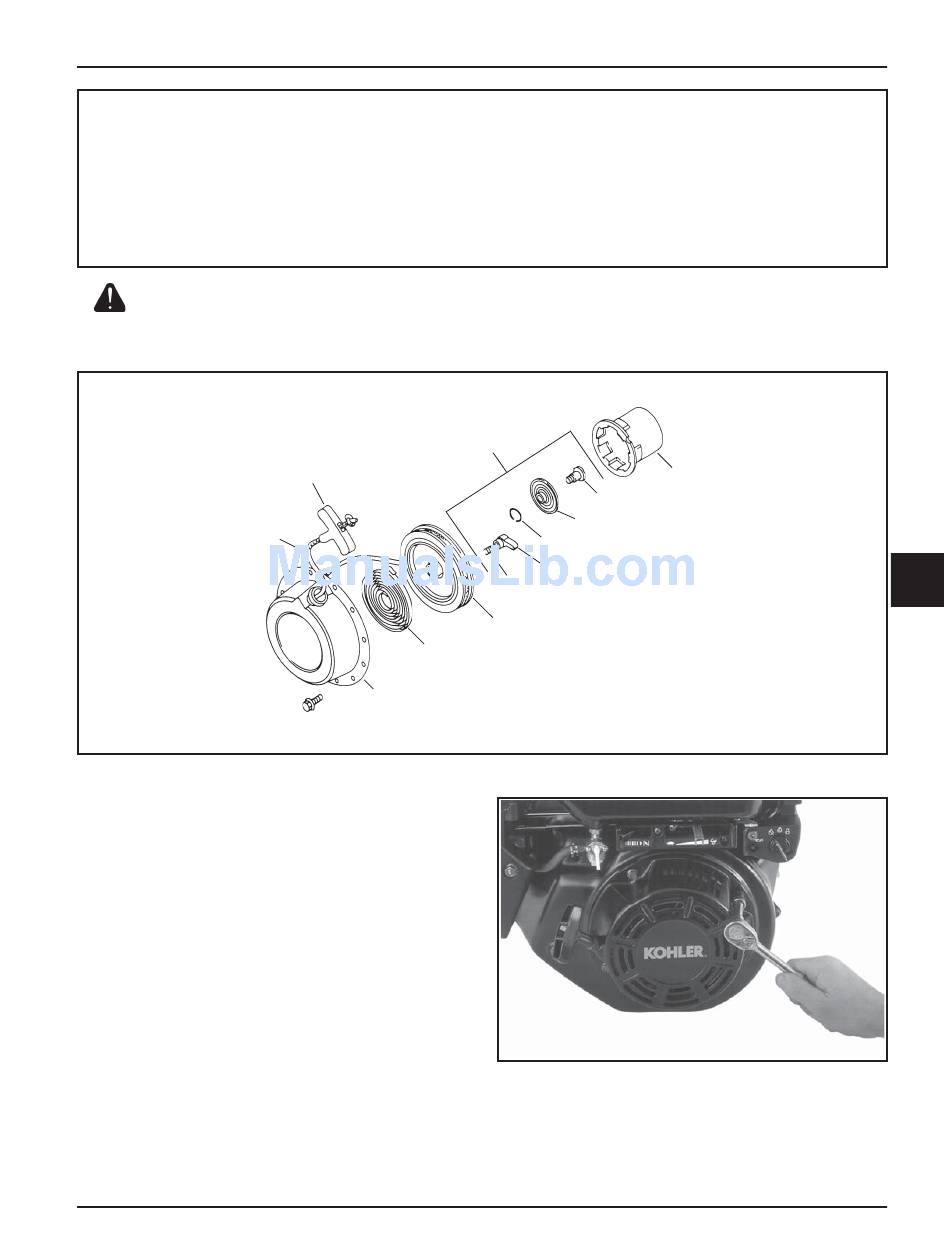

Figure 7-1. Retractable Starter - Exploded View.
To Remove Starter
1. Remove the hex flange screws (three on CS4 and
CS6, four on CS8.5-12) securing the starter
assembly to the blower housing.
2. Remove the starter assembly.
To Install Starter
1. Align the retractable starter with the mounting
locations on the blower housing, and install the
hex flange screws. Leave the screws slightly
loose.
Section 7
Retractable Starter
Pawl Repair
Kit
Starter
Handle
Recoil
Spring
Starter
Housing
Center Screw
Drive Plate
Friction Spring
Drive Pawl
Spring
Pulley
Figure 7-2. Installing Retractable Starter.
Section 7
Retractable Starter
Drive Cup
7
7.1
