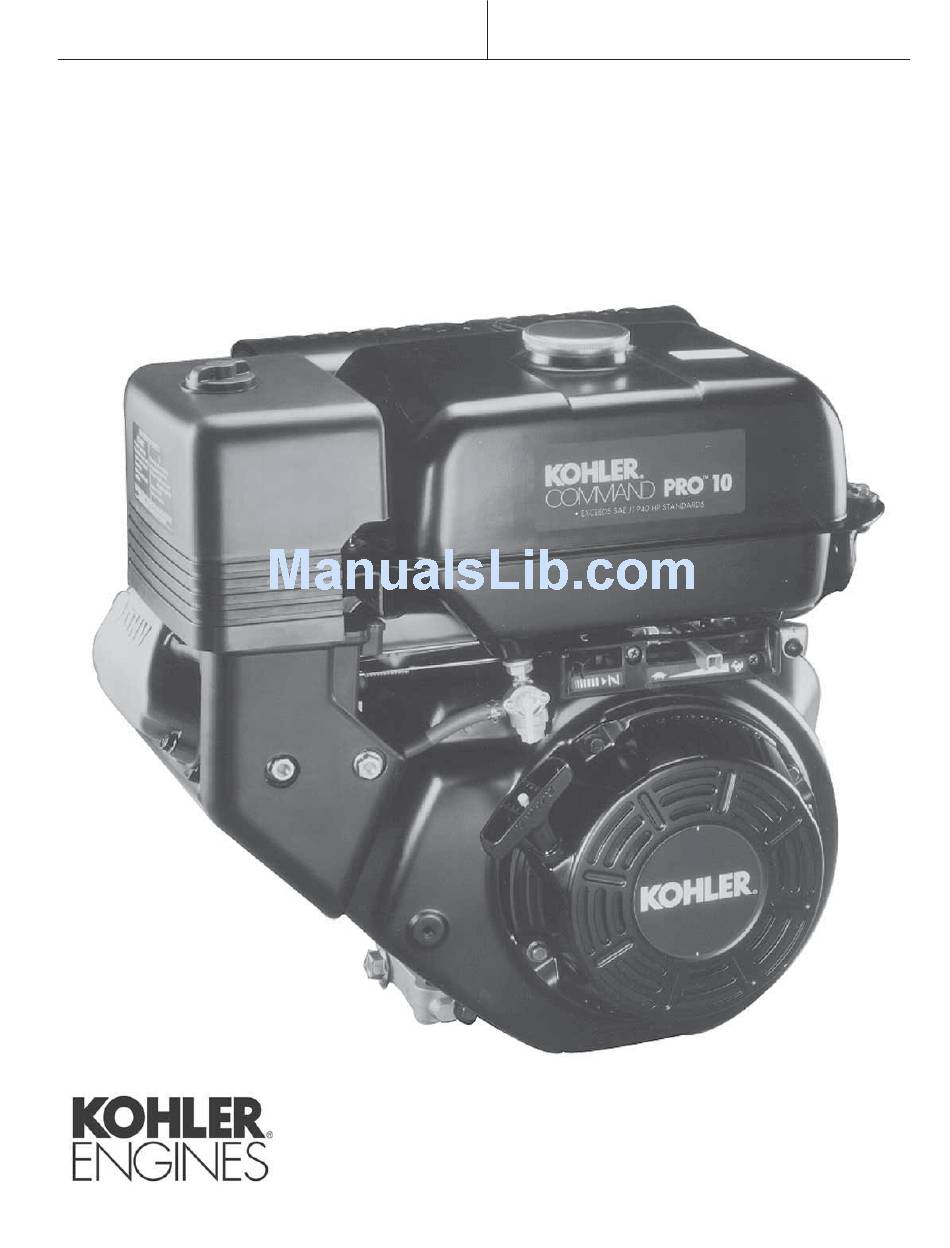

- Page 1 WNER ANUAL CS S OMMAND ERIES 4-12.75 HP ORIZONTAL RANKSHAFT...
-
Page 2: Safety Precautions
To ensure safe operations please read the following statements and understand their meaning. Also refer to your equipment owner's manual for other important safety information. This manual contains safety precautions which are explained below. Please read carefully. WARNING Warning is used to indicate the presence of a hazard that can cause severe personal injury, death, or substantial property damage if the warning is ignored. - Page 3 • Dependable, maintenance free electronic ignition ensures fast, easy starts time after time. • Kohler engines are easy to service. All routine service areas (like the oil fill/check plug, air cleaner, spark plug, and carburetor) are easily and quickly accessible.
-
Page 4: Oil Recommendations
Air Cleaner Air Cleaner Cover Retaining Knob Fuel Shut-Off Choke Lever Retractable Starter Figure 1. Location of Controls and Service Points on CS Engines. Oil Recommendations Using the proper type and weight of oil in the crankcase is extremely important. So is checking oil daily and changing oil regularly. -
Page 5: Fuel Recommendations
Gasoline/Alcohol blends Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline by volume) is approved as a fuel for Kohler engines. Other gasoline/alcohol blends are not approved. Gasoline/Ether blends Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline blends (up to a maximum of 15% MTBE by volume) are approved as a fuel for Kohler engines. -
Page 6: Cold Weather Starting Hints
Throttle Figure 7. Retractable Start Engine On/Off Switch. Control Extend the starting rope periodically and check its condition. If the rope is frayed, have it replaced immediately by your Kohler Engine Service Dealer. - Page 7 Do not make further attempts to start the engine until the condition is corrected. Do not jump start using another battery (refer to "Battery"). See your Kohler Engine Service Dealer for trouble analysis. 4. For a Cold Engine – Gradually return the choke control to the “off”...
-
Page 8: Maintenance Instructions
Maintenance, repair, or replacement of the emission control devices and systems, which are being done at the customers expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized Kohler service outlet. WARNING: Accidental Starts! Disabling engine. - Page 9 NOTE: Just because you can see oil in the crankcase doesn't mean the level is in the safe range. Bring the level up to the point of overflowing the filler neck. Filler Neck Bring Level Up To Point of Overflow (Cutaway Showing Proper Oil Level) Figure 10.
- Page 10 2. Do not wash the paper element or use pressurized air, as this will damage the element. Replace a dirty, bent, or damaged element with a genuine Kohler element. Handle new elements carefully; do not use if the sealing surfaces are bent or damaged.
-
Page 11: Ignition System
In the event starting problems should occur which are not corrected by replacing the spark plug, see your Kohler Engine Service Dealer for trouble analysis. Knob Seal Air Cleaner Cover... -
Page 12: Check Spark Plug
NGK plug is RN14YC. The service replacement is Champion ® RC14YC (Kohler part No. 66 132 01-S). Equivalent alternate brand plugs can also be used. 1. Before removing the spark plug, clean the area around the base of the plug to keep dirt and debris out of the engine. - Page 13 Figure 15. Fuel Tank Filter A serviceable fuel tank filter is located under the fuel tank cap, in the filler neck. Daily or as required clean filter of any accumulation as follows: 1. Remove the fuel tank cap and filter. 2.
-
Page 14: Carburetor Troubleshooting And Adjustments
Muffler Screen and Spark Arrestor CS8.5,CS10,CS12 CAUTION! The engine and muffler will be very hot after the engine has been run. Avoid touching the engine and muffler while they are still hot, with any part of your body or clothing. 1. -
Page 15: Troubleshooting
For example, a starting problem could be caused by an empty fuel tank. Some common causes of engine troubles are listed in the following table. Do not attempt to service or replace major engine components, or any items that require special timing or adjustment procedures. Have your Kohler Engine Service Dealer do this work. Possible Cause No Improper... -
Page 16: Parts Ordering
Include letter suffixes if there are any. See “Engine Identification Numbers” on page 5. Always insist on genuine Kohler parts. All genuine Kohler parts meet strict standards for fit, reliability, and performance. Major Repair Major repair information is available in Kohler Engine Service Manuals. -
Page 17: Specifications
Kohler Co.’s instructions and manuals. Our obligation under this warranty is expressly limited, at our option, to the replacement or repair at Kohler Co., Kohler, Wisconsin 53044, or at a service facility designated by us of such parts as inspection shall disclose to have been defective. -
Page 18: Manufacturer's Warranty Coverage
These warranty periods will begin on the date the engine is purchased by the initial purchaser. If any emission related part on the engine is defective, the part will be replaced by Kohler Co. at no cost to the owner. Kohler Co. is liable for damages to other engine components caused by the failure of a warranted part still under warranty. - Page 19 MAINTENANCE AND REPAIR REQUIREMENTS The owner is responsible for the proper use and maintenance of the engine. Kohler Co. recommends that all receipts and records covering the performance of regular maintenance be retained in case questions arise. If the engine is resold during the warranty period, the maintenance records should be transferred to each subsequent owner.
- Page 20 ENGINE DIVISION, KOHLER CO., KOHLER, WISCONSIN 53044 FOR SALES AND SERVICE INFORMATION IN U.S. AND CANADA, CALL 1-800-544-2444 www.kohlerengines.com FORM NO.: TP-2494 ISSUED: 8/98 REVISED: 8/05...
