Install Flywheel

WARNING: Damaging Crankshaft and
Flywheel Can Cause Personal Injury!
Using improper procedures to install the flywheel can crack
or damage the crankshaft and/or flywheel. This not only
causes extensive engine damage, but can also cause personal
injury, since broken fragments could be thrown from the
engine. Always observe and use the following precautions
and procedures when installing the flywheel.
NOTE: Before installing the flywheel make sure the
crankshaft taper and flywheel hub are clean,
dry, and completely free of lubricants. The
presence of lubricants can cause the flywheel
to be over-stressed and damaged when the
flange screw is torqued to specifications.

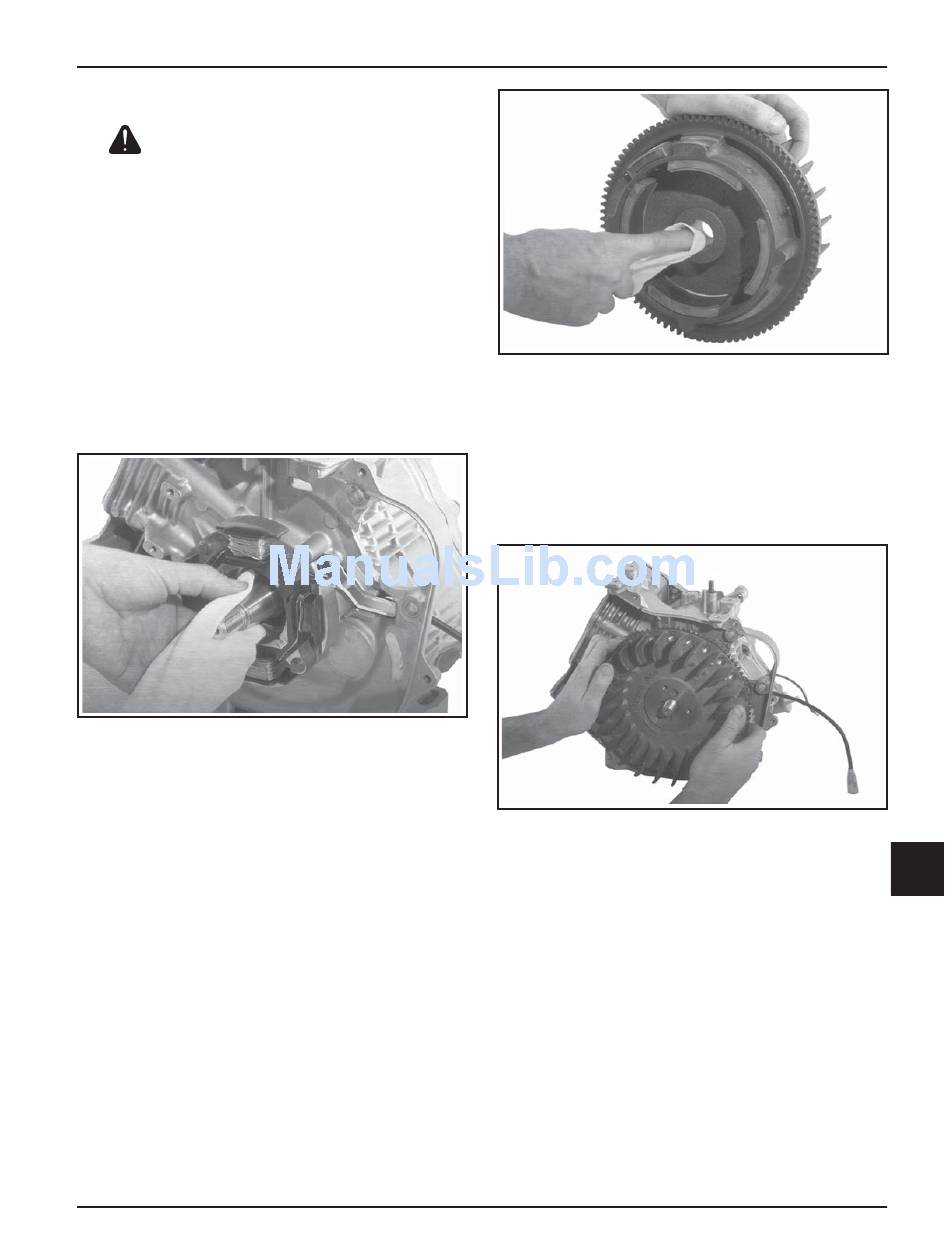

Figure 11-57. Clean and Dry Taper of Crankshaft.
NOTE: Make sure the flywheel key is installed
properly in the keyway. The flywheel can
become cracked or damaged if the key is not
installed properly.
1. Install the woodruff key into the keyway of the
crankshaft. Make sure that the key is properly
seated and parallel with taper of shaft.
Figure 11-58. Clean and Dry Flywheel Hub.
2. Install the flywheel onto the crankshaft being
careful not to shift the woodruff key.
3. Install the drive cup (with grass screen if so
equipped) engaging it with the flywheel. Hold in
position and install the large flat washer and hex
nut. Finger tighten to keep cup engaged.
Figure 11-59. Carefully Align Keyway to Key.
4. Use a flywheel holding tool and torque wrench to
tighten flywheel nut. Torque the hex nut to:
CS4, CS6, CS8.5 (spec. 95xxxx):
65 N·m (48 ft. lb.)
CS8.5 (spec. 92xxxx), CS10, CS12:
120 N·m (88 ft. lb.)
