Section 11
Reassembly

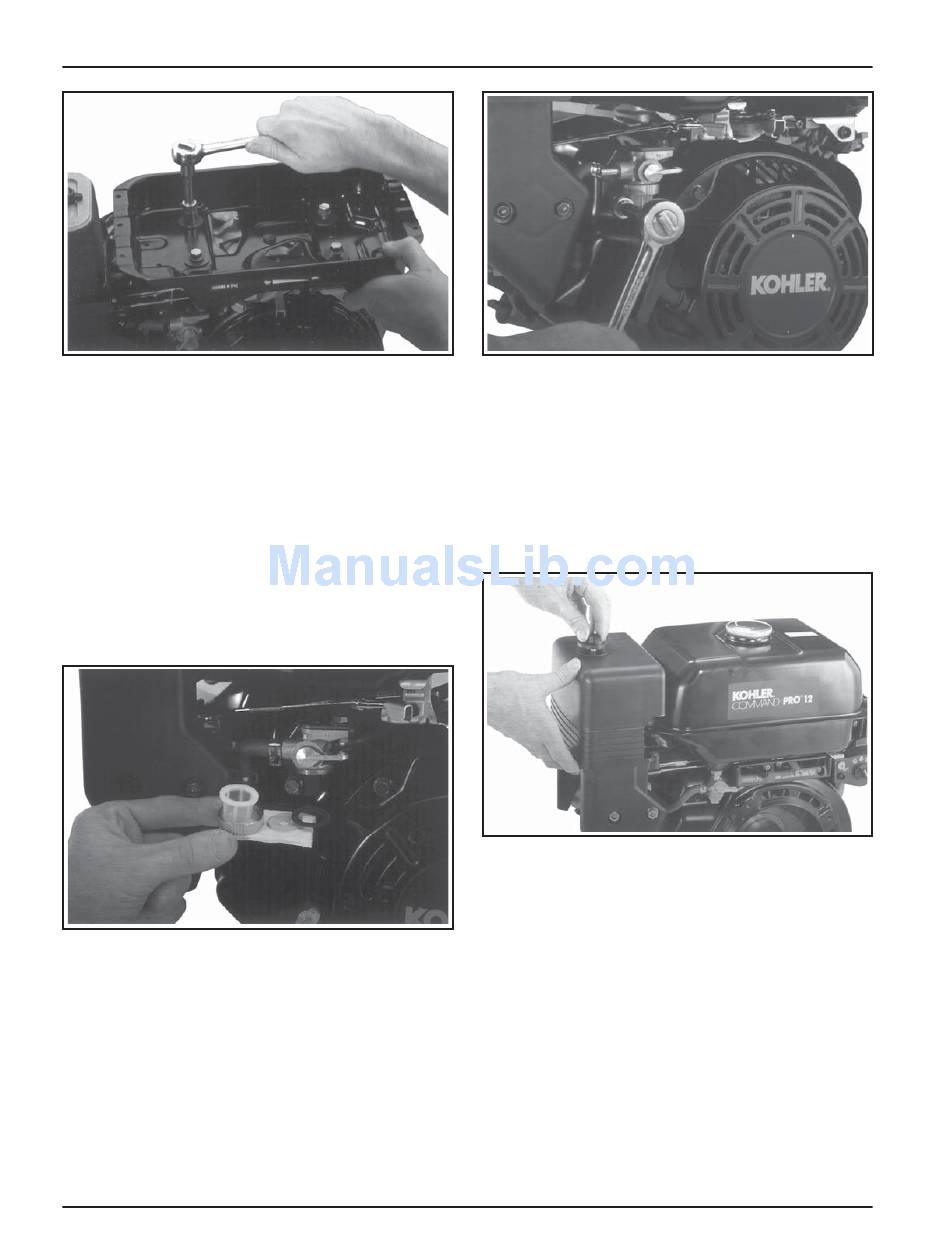

Figure 11-112. CS8.5 (spec. 95xxxx) Installing Fuel
Tank Support.
2. Install the fuel tank assembly, with the fuel line
connected to the outlet fitting, into the fuel tank
support. Route the fuel hose beneath the linkages
and align the mounting holes. Secure with the
four M6 hex flange screws. Torque the screws to
8-12 N·m (71-106 in. lb.).
3. If the fuel shut-off valve was removed or serviced
separately, reassemble it and secure it to the
mounting bracket. Torque the top mounting
screw to 8-12 N·m (71-106 in. lb.). See Figure
11-113.
Figure 11-113. CS8.5 (spec. 95xxxx). Shut-Off Valve
Details.
4. Connect the fuel line from the fuel tank to the
inlet fitting of the shut-off valve and secure with
the clamp. Mount the bracket/shut-off valve
assembly to the blower housing aligning the
indexing mark and screw hole. Install the hex
flange head screw and torque to 8-12 N·m
(71-106 in. lb.). See Figure 11-114.
11.30
Figure 11-114. CS8.5 (spec. 95xxxx). Mounting
Shut-Off Valve.
5. Connect the fuel line to the outlet of the shut-off
valve and the carburetor inlet. Secure with the
clamps.

Install Outer Air Cleaner Cover

1. Install the outer air cleaner cover onto the stud,
over the element. Secure with the knob.
Figure 11-115. Installing Outer Air Cleaner Cover
and Knob.
Install the Retractable Starter
1. Install the retractable starter using the hex flange
screws. Finger tighten the mounting screws only.
2. Pull the rope handle to engage the pawls,
centering the starter to the drive cup. Hold in this
position and torque the mounting screws to
6.5-7 N·m (57-62 in. lb.).
