Section 9
Disassembly

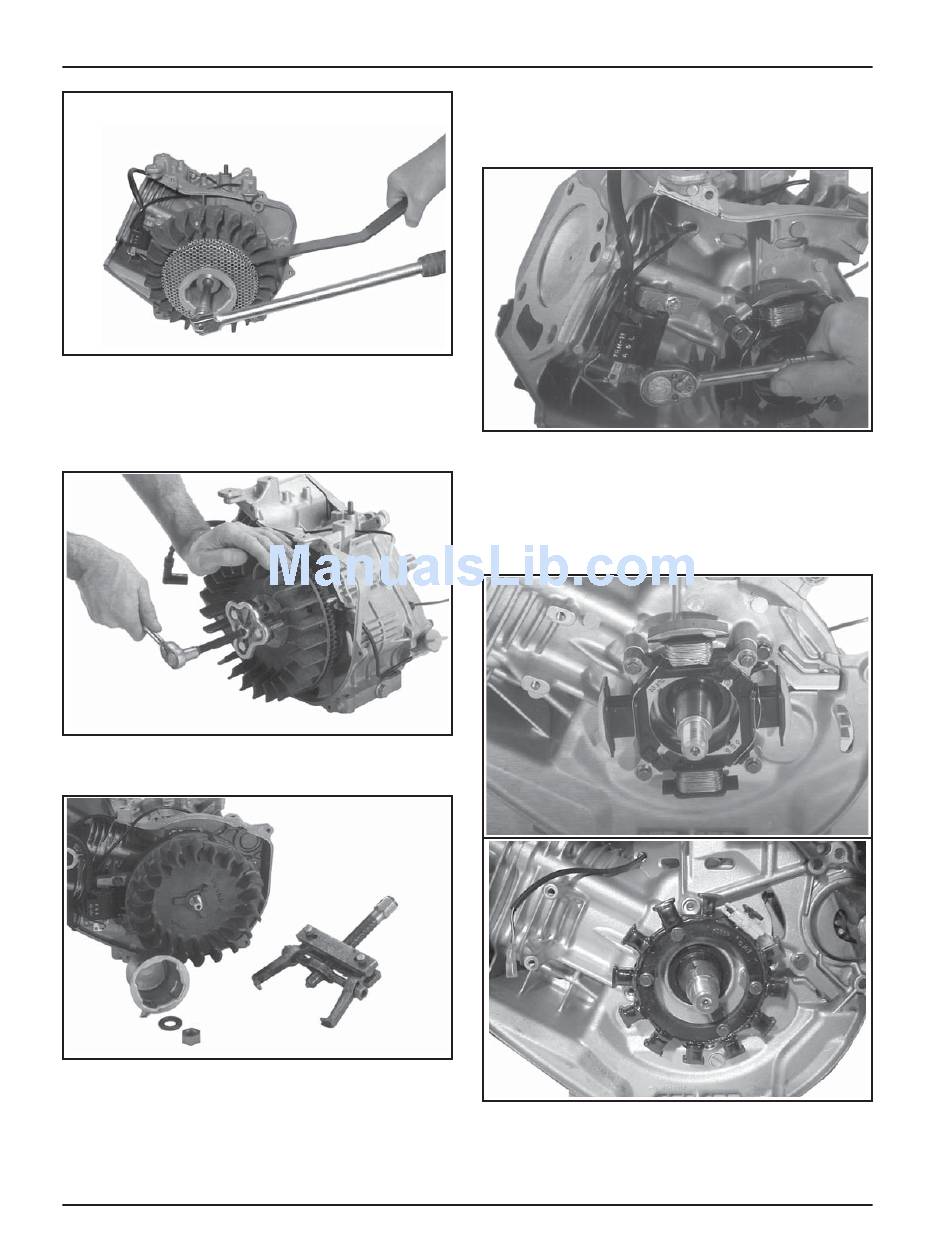

Figure 9-48. Removing Flywheel Nut Using Holding
Tool.
2. Remove the flywheel from the crankshaft using a
puller. See Figure 9-49 and 9-50.
Figure 9-49. Using Puller to Remove Flywheel on
CS8.5-CS12.
Figure 9-50. Use External Type Puller to Remove
Flywheel on CS4, CS6.
3. Remove the flywheel key from keyway.
9.12
Remove Ignition Module
1. Remove the two hex flange screws securing the
ignition module to the crankcase. See Figure 9-51.
Figure 9-51. Removing the Ignition Module Screws.
Remove Stator and Protective Shield (If
So Equipped)
1. Remove the mounting screw and protective
shield over the stator leads. See Figure 9-52.
Figure 9-52. Stator and Protective Shield.
Style 1
Style 2
