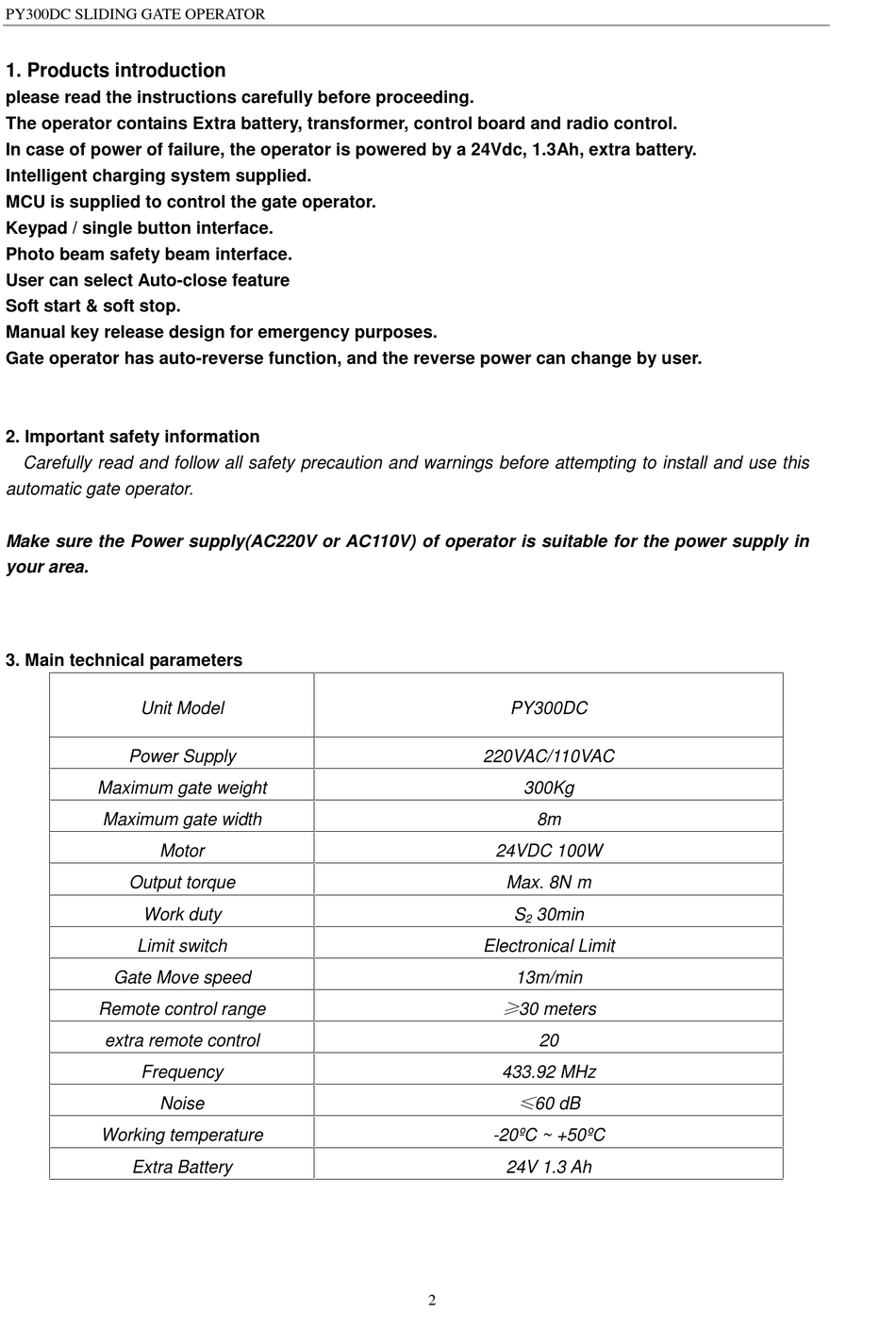

PY300DC SLIDING GATE OPERATOR

1. Products introduction

please read the instructions carefully before proceeding.
The operator contains Extra battery, transformer, control board and radio control.
In case of power of failure, the operator is powered by a 24Vdc, 1.3Ah, extra battery.
Intelligent charging system supplied.
MCU is supplied to control the gate operator.
Keypad / single button interface.
Photo beam safety beam interface.
User can select Auto-close feature
Soft start & soft stop.
Manual key release design for emergency purposes.
Gate operator has auto-reverse function, and the reverse power can change by user.
2. Important safety information
Carefully read and follow all safety precaution and warnings before attempting to install and use this
automatic gate operator.
Make sure the Power supply(AC220V or AC110V) of operator is suitable for the power supply in
your area.

3. Main technical parameters

Unit Model
Power Supply
Maximum gate weight
Maximum gate width
Motor
Output torque
Work duty
Limit switch
Gate Move speed
Remote control range
extra remote control
Frequency
Noise
Working temperature
Extra Battery
PY300DC
220VAC/110VAC
220V AC 300Kg
110V AC 8m
24VDC 100W
Max. 8N·m
S 30min
2
Electronical Limit
13m/min
≥
30 meters
20
100 (2 included) 433.92 MHz
≤
60 dB
-20ºC ~ +50ºC
24V 1.3 Ah
