JOYTECH PY300DC User Manual page 10

PY300DC SLIDING GATE OPERATOR
Set open and close positions
1. Press and hold SET until number '1' is indicated on the LED display.
2. Press and hold OPEN to set open position(now the door must be OPEN,, if not,please change the
motor wire red and black), release the button until the door has reached the desired position. (You
also can press CLOSE to move the door close, OPEN and CLOSE can be used to fine adjust the
door position.)
3. Press the SET to confirm the open position, now number '2' is indicated on the LED display.
4. Press and hold CLOSE to set close position, release the button until the door has reached the
desired position. (You also can press OPEN to move the door open, OPEN and CLOSE can be used
to fine adjust the door position.)
5. Press the SET to confirm the close position.
6. The door will do a complete open and close cycle.
Automatic close (0~90 seconds adjustable)
1. Press and hold OPEN until '─' is indicated on the LED display.
2. Press OPEN to increase the auto close time, press CLOSE to decrease time.
3. Set timer to '0', the automatic close function will disable.
4. Press SET to confirm the setting.
5. Add 10 second per number
NOTE: Automatic close function is available only when the door is in fully opened position.

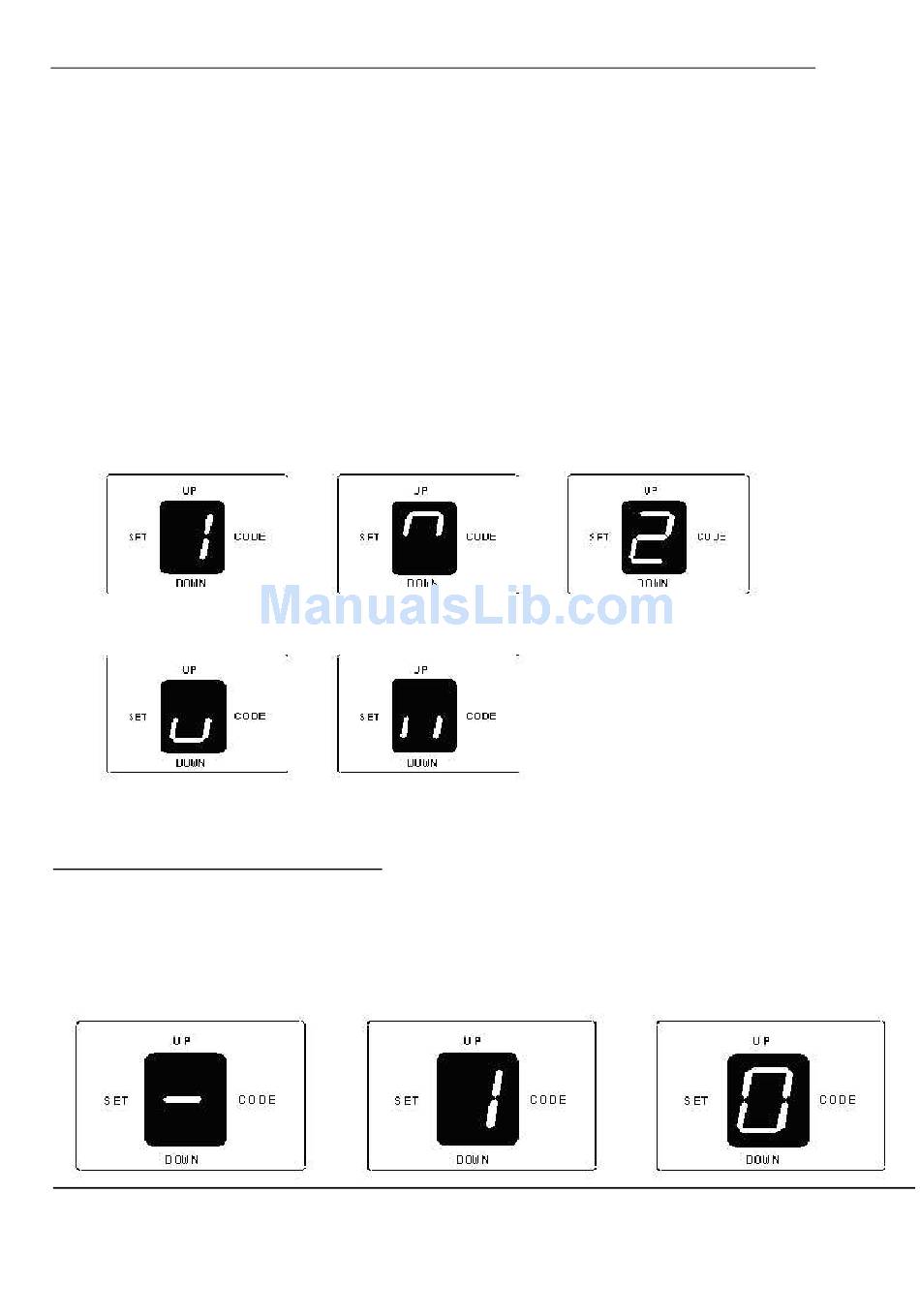

Fig.12
Fig.13
