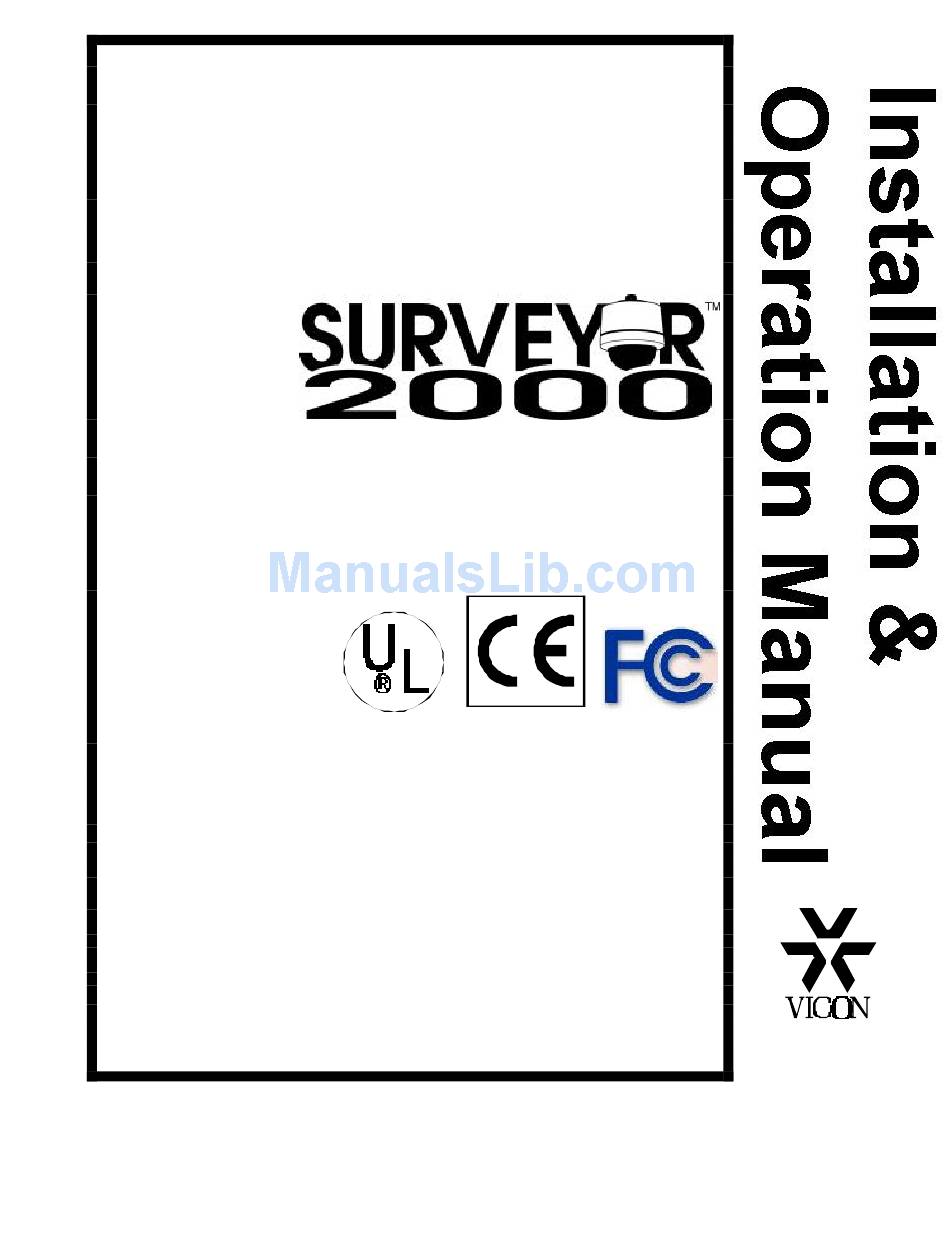

Vicon Surveyor 2000 Installation & Operation Manual

Vicon surveyor 2000 fixed camera dome
Hide thumbs Also See for Surveyor 2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual
XX035-01-01
FIXED CAMERA DOME
Vicon Industries Inc. does not warrant that the functions contained in this equipment
will meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life -critical situations and must not be used for this purpose.
Copyright © 2002 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8009-8035-01-01
Rev 402 Section 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surveyor 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Surveyor 2000

Summary of Contents for Vicon Surveyor 2000

  • Page 1 XX035-01-01 FIXED CAMERA DOME Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life -critical situations and must not be used for this purpose.

  • Page 3: Table Of Contents

    Contents Quick Installation..........................ii Introduction ............................1 Installation............................2 Unpacking and Inspection ........................2 Inspection for Visible Damage......................2 Inspection for Concealed Damage ......................2 Surveyor2000 Fixed Dome Components....................2 Mounting the Unit ..........................4 Using the Provided Scribe........................4 In-Ceiling Mounting ..........................4 Indoor Pendant ...........................

  • Page 4: Quick Installation

    Quick Installation In-Ceiling - No Access to Ceiling ii • • Quick Installation XX035-01-01 Rev 402 Surveyor2000 Fixed Camera Dome...
  • Page 5 In-Ceiling – Access to Ceiling Quick Installation • • iii XX035-01-01 Rev 402 Surveyor2000 Fixed Camera Dome...
  • Page 6 Pendant - Indoor iv • • Quick Installation XX035-01-01 Rev 402 Surveyor2000 Fixed Camera Dome...
  • Page 7 Pendant – Outdoor Quick Installation • • v XX035-01-01 Rev 402 Surveyor2000 Fixed Camera Dome...

  • Page 9: Introduction

    Introduction The information in this manual covers the installation, operation, and maintenance of the Surveyor2000 Series of Fixed Camera Domes. This unit should only be installed by a qualified technician using approved materials in accordance with national, state and local wiring codes. Read this manual through completely before attempting installation.

  • Page 10: Installation

    Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspection for Visible Damage Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the carrier’s freight bill.
  • Page 11 Lower Dome The dome is an assembly comprised of a 5.9 in. (148 mm) diameter acrylic shell, a color coordinated trim ring and a safety cord. Lower domes for the indoor versions have a smoked (gray tint) finish. Outdoor lower domes are clear and use four (4) screws for additional support.

  • Page 12: Mounting The Unit

    Mounting the Unit Using the Provided Scribe A small metal scribe is provided to assist in marking an accurate hole size in a ceiling tile. Use it as follows. 1. Place the ceiling tile on a large flat surface, face up. 2.
  • Page 13 1. Cut a 7-3/8 in. (187 mm) hole in the ceiling at the desired location. Remove the tile from a dropped ceiling if necessary. Feed all necessary flexible conduit pipe or cables down through the hole. 2. Remove the camera mounting plate from the enclosure by loosening the three (3) captive screws. 3.

  • Page 14: Mounting From Above The Ceiling

    Figure 3A Tie Wrap Location Mounting from Above the Ceiling Use this method of installation if there is access to the space above. The ceiling material must provide suitable strength to support the weight of the Surveyor2000 with the two flippers on the enclosure. Refer to the section on Optional Independent Support for installations requiring additional support.

  • Page 15: Optional Independent Support

    Figure 4 Mounting an In-Ceiling Installation with Access Above the Ceiling Optional Independent Support If it is necessary to provide independent support for the Surveyor2000 other than ceiling material, order the optional In-Ceiling Mount Model Kit, model S2000-MKT. It consists of a pre-assembled set of mounting rails and folding ring.

  • Page 16: Indoor Pendant

    Indoor Pendant The indoor pendant model mounts on a Vicon mount or a 1.0-in. vertical pipe. The pipe is a standard 1.0-in. NPT type and must be oriented vertically so the Surveyor2000 can effectively hang from the pipe. The mount must provide a support of suitable strength for the housing and Surveyor2000 weight.

  • Page 17: Outdoor Pendant

    Indoor Pendant Installation Outdoor Pendant The outdoor pendant model mounts on a Vicon mount or a 1.0-in. vertical pipe. The outdoor version includes a sunshield, heater and weather protection. The mount must provide a support of suitable strength for the sunshield, housing and Surveyor2000 weight.

  • Page 18: Cable Connections

    cable for termination and cut them. The approximate length of each cable should be 13 - 16 in. (330 - 406 mm). 9. On 5-50 lens models, remove the tie wrap that secures the lens to the cradle. Refer to Figure 3A. Continue with the section on Cable Connections.

  • Page 19: Camera Power Connections

    Camera Power Connections Note: Vicon systems and components, like most electronic equipment, require a clean, stable power source. Voltage irregularities such as surges, drops, and interruptions can affect the operation of your equipment and, in severe cases, damage certain components. Vicon strongly recommends the use of line conditioners, voltage regulators, and uninterruptible power supply (UPS) systems.

  • Page 20: Camera Synchronization

    Figure 8 Camera/Lens PC Board Table 2 Camera Power Connections Pin Number Function 24 VAC/VDC 24 VAC/VDC Return Ground Camera Synchronization Camera synchronization is DIP switch selectable, line locked or internal. If there is more than one unit in a system, the cameras have to be synchronized to ensure there is no disruption of video display.
  • Page 21 Key: AI – External Autoiris; EE – Internal Autoiris; LL – Line Lock; INT. – Internal Synchronization Figure 9 Switch Settings and Autoiris Adjustment Installation • • 13 XX035-01-00 Rev 302 Surveyor2000 Fixed Camera Dome...

  • Page 22: Camera Adjustments

    Final Installation In-Ceiling After all cabling is complete, reinstall the camera mounting plate if it was removed for no access to the ceiling from above installation. Align the holes in the mounting plate with the standoffs in the enclosure and tighten the three captive screws.

  • Page 23: Indoor Pendant

    Figure 11 In-Ceiling Mount Final Installation Indoor Pendant After all the cabling is complete, push the Surveyor2000 straight up into the housing. Verify that the two (2) slots on the Surveyor2000 snap into the housing clips. Do not use excessive force. In the event that it does not snap easily, remove the Surveyor2000 and check that cabling is not preventing proper installation.

  • Page 24: Outdoor Pendant

    Figure 12 Pendant Mount Dome Installation Outdoor Pendant After all the cabling is complete, push the Surveyor2000 straight up into the housing. Verify that the two (2) slots on the Surveyor2000 snap into the housing clips. Do not use excessive force. In the event that it does not snap easily, remove the Surveyor2000 and check that cabling is not preventing proper installation.

  • Page 25: Disassembly

    Disassembly The Surveyor2000 Fixed Camera Dome can be easily disassembled by removing the camera dome from the housing (pendant models) or the camera mounting plate from the enclosure (in-ceiling versions). A safety cord is always available to safely hang the camera mounting bracket or the camera dome assembly while assembling or disassembling.
  • Page 26 Figure 13 Disassembly 18 • • Installation XX035-01-01 Rev 402 Surveyor2000 Fixed Camera Dome...

  • Page 27: Operation

    Operation When power is applied to the camera, the Surveyor2000 fixed dome views the selected scene. Maintenance The Surveyor2000 Fixed Camera Dome requires no scheduled maintenance except for the occasional cleaning of the lower dome. Care and Cleaning of Lower Dome 1.

  • Page 28: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.

  • Page 29: Reference

    Caution: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. In all cases, coaxial cable impedance should be 75 ohms.

  • Page 30: Technical Information

    Technical Information ELECTRICAL Input Voltage: 24 VAC/VDC. Power Consumption: Indoor: 7 W. Outdoor: 32 W. Heat Equivalent: Indoor: 0.4 btu/min (0.1 kg-cal/min). Outdoor: 1.8 btu/min (0.46 kg-cal/min). Note: These figures represent the conversion of 100% of the electrical energy to heat. Actual percentage of heat generated will be less and will vary from product to product.
  • Page 31 Dimensions: In-Ceiling Height: 8.8 in. (223 mm). Total Diameter: 7.1 in. (180 mm). Dome Diameter: 5.9 in. (150 mm). Indoor Pendant Height: 9.4 in. (239 mm). Total Diameter:8.0 in. (203 mm). Dome Diameter: 5.9 in. (150 mm). Outdoor Pendant Height: 9.3 in. (236 mm). Total Diameter: 9.0 in.
  • Page 32 Table 3 Camera Specifications Model Image Color Resolution Sensitivity Synchronization Electronic Iris Signal-to-Noise Device (TV lines) fc (lux) (sec) Ratio Mono S2000FC-IC358/ 1/3” CCD, 2:1 Color 0.019 (0.2)* Internal/Line lock 1/60 – 1/100,000 >48 dB (AGC off) S2000FC-IC358C interlace, DIP switch NTSC/PAL selectable S2000FC-P358/...
  • Page 33 Lens Specifications Model Focal Length Field- View (mm) Horizontal Vertical S2000FC-IC358/ 3.5-8 varifocal S2000FC-IC358C with manual iris 77.6° 35.4° 57.6°- 26.6° S2000FC-P358/ 3.5-8 varifocal S2000FC-P358C with manual iris 77.6° 35.4 57.6°- 26.6° S2000FCA -W358/ 3.5-8 varifocal S2000FCA -W358C with manual iris 77.6°...
  • Page 34 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) &Infofax: 800-287-1207 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office...
