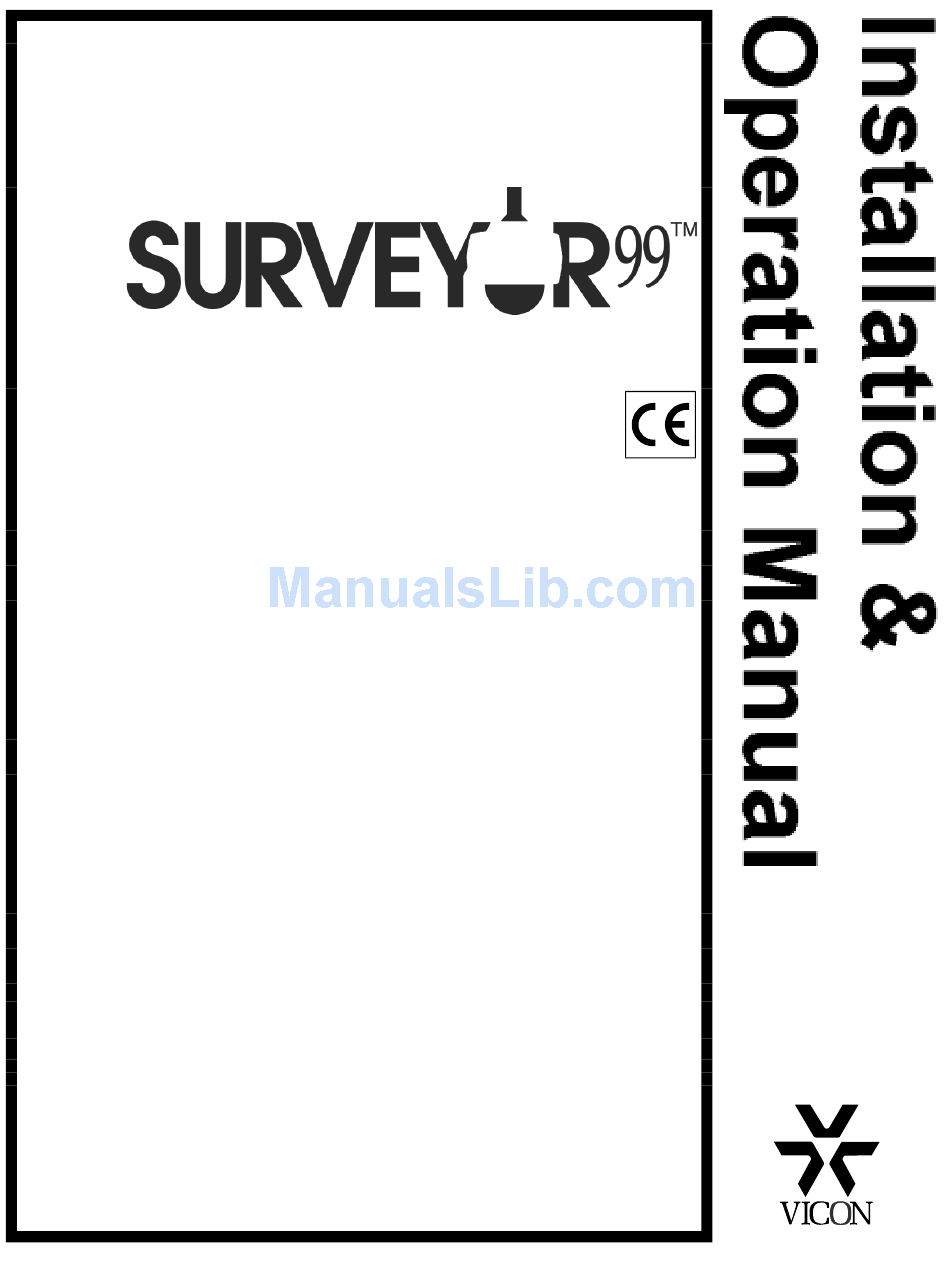

Vicon Surveyor 99 Installation & Operation Manual

Hide thumbs Also See for Surveyor 99:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual
XX002

Camera Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements
or that the operation will be entirely error free or perform precisely as described in the documentation. This system
has not been designed to be used in life-critical situations and must not be used for this purpose.
Copyright © 1999 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Teflon is a registered trademark of DuPont.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TELE: 516-952-CCTV (2288) FAX: 516-951-CCTV (2288) TOLL FREE: 800-645-9116
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8002-01-00 Section 1 Rev 799

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Surveyor 99 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon Surveyor 99

Summary of Contents for Vicon Surveyor 99

  • Page 1: Camera Dome

    XX002 Camera Dome Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.

  • Page 5: Fcc Notice

    FCC Notice NOTE: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception.

  • Page 7: Table Of Contents

    Contents FCC NOTICE........................III CONTENTS........................... I IMPORTANT SAFEGUARDS ..................... III INTRODUCTION ........................1 How to Use this Manual ..........................1 For experienced installers:........................1 For novice installers:..........................1 Accessory Kit ..............................2 Unpacking and Inspection ..........................2 Surveyor99 Components ..........................3 Enclosure..............................
  • Page 8 WIRING ..........................29 Typical Relay and Alarm Connections .......................30 Installing the Cables.............................31 For an In-Ceiling Installation........................31 For an Indoor or Outdoor Pendant Model Installation ................32 Using the Accessory Kit’s Termination Box and RJ-45 Cable for Wiring..........34 Using the Optional Alarm Kit (Surv99-ACL) ....................36 CONFIGURATION......................

  • Page 9: Important Safeguards

    Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
  • Page 10 This prevents damage to the video product due replacement parts specified by Vicon or that have the to lightning and power-line surges. same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other 15.

  • Page 11: Introduction

    Introduction The information in this manual covers the installation, configuration and operation of the Surveyor99 Camera Dome. This system should only be installed by a qualified technician using common hand tools and approved materials in accordance with national, state and local wiring codes. The Surveyor99 is a compact, intelligent, high-speed Camera Dome.

  • Page 12: Accessory Kit

    Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible.

  • Page 13: Surveyor99 Components

    Surveyor99 Components All Surveyor99 versions are comprised of an Enclosure, a removable Camera Drive, a Shroud and a Lower Dome as shown in Figure 1. This assembly is the heart of every prepackaged Surveyor99 unit. With the addition of a Housing and Sunshield, Surveyor99 can be equipped for in-ceiling, indoor or outdoor pendant mounting.

  • Page 14: Housing

    Housing The Housing is a molded plastic protective cover for the Enclosure. It is used in the Surveyor99 Indoor and Outdoor Pendant configurations. The Housing contains two Spring Clips that snap into the Enclosure and a 1.0-inch NPT Pipe flange mount.

  • Page 15: Installation

    Installation Installation is a simple process. Choose the installation type based on the specific unit purchased. All mounting hardware is provided for the three possible installation types. Quick Installation For experienced installers, follow these steps for fast installation. In-Ceiling Mount Model (no ceiling access provided) Use this method to quickly install, wire and configure an In-Ceiling Mount Model when...
  • Page 16 8. Insert Camera Drive into Enclosure, carefully aligning Captive Screws and mating standoffs. Tighten 3 Captive Screws. 9. Attach Lower Dome and power-up. Refer to the Maintenance Section for Lower Dome handling. This Surveyor99 is shown with typical wiring and configuration using Flexible Conduit. See Figure 4. The DIP switches are set as follows: DIP SWITCH S1 (Surveyor99 address): 1 - ON, 2 - OFF, 4 - OFF, 8 - OFF, 16 - OFF, 32 - OFF, 64 - OFF, 128 - OFF (THIS IS ADDRESS 1)

  • Page 17: In-Ceiling Mount Model (Ceiling Access Provided)

    In-Ceiling Mount Model (ceiling access provided) Use this method to quickly install, wire and configure the In-Ceiling Mount Model when there is sufficient room to work above the ceiling. Refer to Figure 5. 1. Cut a 7-3/8-inch (187 mm ) diameter hole in ceiling.
  • Page 18 This Surveyor99 is shown with typical wiring and configuration using the Romex Connector. See Figure 6. The DIP switches are set as follows: DIP SWITCH S1 (Surveyor99 address): 1 - ON, 2 - OFF, 4 - OFF, 8 - OFF, 16 - OFF, 32 - OFF, 64 - OFF, 128 - OFF (THIS IS ADDRESS 1) DIP SWITCH S2 (Surveyor99 configuration): 1 - ON (NTSC), 2 - OFF (VPS), 3 - OFF (DUPLEX), 4 - OFF (RS-422), 5 through 8 - OFF (not used) Figure 6...

  • Page 19: Indoor Pendant Model

    Indoor Pendant Model Use this method to quickly install, wire and configure an Indoor Pendant Model. Refer to Figure 7. 1. Install Mount or prepare a vertical 1.0- inch NPT Pipe. Feed all cables at least 16-inches (406 mm) through pipe opening and into top of Housing.
  • Page 20 This Surveyor99 is shown with typical wiring and configuration. See Figure 9. The DIP switches are set as follows: DIP SWITCH S1 (Surveyor99 address): 1 - ON, 2 - OFF, 4 - OFF, 8 - OFF, 16 - OFF, 32 - OFF, 64 - OFF, 128 - OFF (THIS IS ADDRESS 1) DIP SWITCH S2 (Surveyor99 configuration): 1 - ON (NTSC), 2 - OFF (VPS), 3 - OFF (DUPLEX), 4 - OFF (RS-422), 5 through 8 - OFF (not used) Figure 9...

  • Page 21: Outdoor Pendant Model

    Outdoor Pendant Model Use this method to quickly install, wire and configure an Outdoor Pendant Model. See Figure 10. 1. Install Mount or prepare a vertical 1.0- inch NPT Pipe. Feed all cables at least 16-inches (406 mm) through pipe opening and into top of Housing.
  • Page 22 This Surveyor99 is shown with typical wiring and configuration. See Figure 12. The DIP switches are set as follows: DIP SWITCH S1 (Surveyor99 address): 1 - ON, 2 - OFF, 4 - OFF, 8 - OFF, 16 - OFF, 32 - OFF, 64 - OFF, 128 - OFF (THIS IS ADDRESS 1) DIP SWITCH S2 (Surveyor99 configuration): 1 - ON (NTSC), 2 - OFF (VPS), 3 - OFF (DUPLEX), 4 - OFF (RS-422), 5 through 8 - OFF (not used) Figure 12...

  • Page 23: Detailed Installation

    Detailed Installation For novice or first-time installers, these steps provide the most thorough and accurate instructions. IN-CEILING MOUNT MODEL This version of Surveyor99 mounts in the ceiling. The Surveyor99 rests on the ceiling material and occupies the space between the lower ceiling and upper building frame. This section details 2 methods of installation. The first method can be used for ceilings with no access to the space above, as in a typical hard material ceiling.
  • Page 24 The ceiling material must provide a surface of suitable strength for the Surveyor99 weight of 4.5 lb (2.0 kg) on the area of the two Ceiling Clips. Refer to the Optional Independent Support sub-section installations requiring additional support. 1. Cut a 7-3/8-inch (187 mm ) diameter hole in ceiling at the desired location.
  • Page 25 b) Strip approximately 1 inch (25 mm) of insulation off all wires to be terminated in Terminal Blocks. Then strip approximately 0.25 inches (6 mm) of insulation off of each individual wire. c) Make all connections to Terminal Blocks TB1 and TB3 with reference to Table 1. On TB3, the COMMAND IN + (CI+) and COMMAND IN - (CI-) connections must be used for Simplex operation.
  • Page 26 2. Set switch 2 on DIP Switch 2 (S2) to the ON position (Vicoax mode). 3. Set switch 3 on DIP Switch 2 (S2) to either position as it does not affect Vicoax protocol operation. 4. Set switch 4 on DIP Switch 2 (S2) to either position as it does not affect Vicoax protocol operation. NOTE: DIP Switches labeled ON or CLOSED and OFF or OPEN have the same meaning.
  • Page 27 From Above the Ceiling (access to the space above) The ceiling hole is cut and the Surveyor99 is snapped into the hole and screwed up tight to the surface. The Enclosure’s Top Cover is removed and the Surveyor99 is wired and configured from above the ceiling.
  • Page 28 NOTE: Connectors that do not fit through the Strain Relief Fitting must be cut off and re-terminated after passing the cable through. It is recommended to pass any RJ-45 Connectors through the fitting first. BNC type connectors do not fit through the fitting and must be terminated later. 4.
  • Page 29 NOTE: Failure to loop the cables can prevent later removal of the Camera Drive from the Enclosure. Figure 17 Close-Up View - In-Ceiling Configuration with Cables 9. Configure the Surveyor99 communication and address DIP Switches as follows: a) If RS-422 Mode will be used: 1.
  • Page 30 3. Set switch 2 on DIP Switch 2 (S2) to the OFF position (VPS/NOVA mode). 4. Set switch 3 on DIP Switch 2 (S2) to the appropriate communication mode (SIMPLEX/DUPLEX). 5. Set switch 4 on DIP Switch 2 (S2) to the appropriate communication protocol (RS-422 or RS-485) position as specified in Table 2.
  • Page 31 Optional Independent Support If it is necessary to provide independent support for the Surveyor99, other than the ceiling material, order the optional In-Ceiling Mount Model Kit. It consists of a set of Mounting Rails, a folding Ring and the necessary hardware as shown in Figure 19.

  • Page 32: Indoor Pendant Model

    INDOOR PENDANT MODEL The Indoor Pendant Model mounts on a Vicon Mount or a 1.0-inch vertical Pipe. The pipe is a standard 1.0- inch NPT type and must be oriented vertically so the Surveyor99 can effectively hang from the pipe.
  • Page 33 b) Strip approximately 1 inch (25 mm) of insulation off all wires to be terminated in Terminal Blocks TB1 and TB3. Then strip approximately 0.25 inches (6 mm) of insulation off of each individual wire. c) Make all connections to Terminal Blocks TB1 and TB3 with reference to Table 1. On TB3, the COMMAND IN + (CI+) and COMMAND IN - (CI-) connections must be used for Simplex operation.
  • Page 34 2. Set switch 2 on DIP Switch 2 (S2) to the ON position (Vicoax mode). 3. Set switch 3 on DIP Switch 2 (S2) to either position, as it does not affect Vicoax protocol operation. 4. Set switch 4 on DIP Switch 2 (S2) to either position, as it does not affect Vicoax protocol operation.

  • Page 35: Outdoor Pendant Model

    OUTDOOR PENDANT MODEL The Outdoor Pendant Model mounts on a Vicon Mount or a 1.0-inch vertical Pipe in the same manner as the Indoor version. The Outdoor version includes a Sunshield, Heater and weather protection. The Mount is installed with all the cables run through it and the 1.0-inch NPT Pipe is prepared with Teflon Tape for the Housing and the Surveyor99 installation.
  • Page 36 8. Route each cable from the inside top of the Housing down to the Fan’s Bracket and then comfortably over to its mating connector on the Communications/Power Supply Board. Add 1-inch (25 mm) of extra length to each cable for termination and cut them. The approximate length of each cable should be 13 - 16 inches (330 - 406 mm).
  • Page 37 4. Set switch 3 on DIP Switch 2 (S2) to the OFF position (SIMPLEX/DUPLEX). 5. Set switch 4 on DIP Switch 2 (S2) to the appropriate communication protocol (RS-422 or RS-485). b) If Vicoax Mode will be used: 1. Set switch 1 on DIP Switch 2 (S2) to the appropriate video mode (PAL or NTSC).
  • Page 38 NOTES 28 • • • • Installation XX002 Rev 799 Surveyor99 Dome System...

  • Page 39: Wiring

    Wiring Wiring is done with runs of cable for power, video and control. Optional wiring can be installed for the Relay Output and 4 Alarm Inputs. All cables enter the Enclosure from the top on all pendant installations and through the Conduit Fitting on all In-Ceiling installations.

  • Page 40: Typical Relay And Alarm Connections

    Typical Relay and Alarm Connections Alarm Input and Relay Output type signals are also carried on individually-shielded twisted-pair cable sets. The signals are defined in the following descriptions. Alarms 1-4 are electronic TTL (transistor-transistor logic) type inputs that are driven by a dry contact type switch.

  • Page 41: Installing The Cables

    Installing the Cables WARNING: Disable the AC power to prevent installer injury and damage to the unit. Cables are installed using 2 different methods, depending on the installation type. For the In-Ceiling installation, cables are routed from above the ceiling through a Conduit Fitting on the Enclosure to the board. For the Pendant installation, cables are routed from the inside of the Housing through a Cable Clamp to the Communication Power Supply Board.

  • Page 42: For An Indoor Or Outdoor Pendant Model Installation

    8. Make all connections to Terminal Blocks TB1 and TB3 with reference to Table 1. On TB3, the COMMAND IN + (CI+) and COMMAND IN - (CI-) connections must be used for Simplex operation. For Half Duplex operation, the additional signals RESPONSE OUT + (RO+) and RESPONSE OUT - (RO-) must also be used.
  • Page 43 WARNING: If Vicoax mode is being used, DO NOT wire TB3 for control, as this will cause the Camera Dome Program to lock up upon power-up. 6. Reinstall the Terminal Blocks TB1 and TB3 into the Communication Power Supply Board at the proper block frames.

  • Page 44: Using The Accessory Kit's Termination Box And Rj-45 Cable For Wiring

    Figure 31 cut off and terminated later. Use of Accessory Kit Cabling NOTE: Use only the supplied Vicon RJ-45 cable or shielded equivalent. Recommended Use of the Termination Box with Flexible Conduit...
  • Page 45 6. Verify correct wiring and replace the Termination Box’s cover. 7. Proceed to the Configuration Section of this manual for information on setting the 3 Termination jumpers. NOTE: Use only the supplied Vicon RJ-45 cable or shielded equivalent. Figure 34 Block Diagram - Daisy Chained Surveyor99s When wiring several consecutive Surveyor99s, follow the previous steps for each Camera Dome.

  • Page 46: Using The Optional Alarm Kit (Surv99-Acl)

    Using the Optional Alarm Kit (Surv99-ACL) This optional Alarm Kit consists of a Termination Box and RJ-45 Cable. It is used to assist in using connector J2, an RJ-45 socket on the Power Supply/Communication Board. Connector provides access to the 4 alarm inputs. The RJ-45 Cable has one male end, which plugs directly into connector J2, and open wires on the other, which connect to the Termination Box.
  • Page 47 CONNECTOR/PIN CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME NUMBER BNC (female) VIDEO (J1) Video output VIDEO TERMINAL BLOCK POWER (TB1) TB1-1 TB1-2 Neutral TB1-3 No connection RJ-45 ALARM (J2) J2-1 ALARM1 Alarm input 1 J2-2 VSSA Ground J2-3 ALARM2 Alarm input 2 J2-4 Ground VSSA...
  • Page 48 NOTES 38 • • • • Wiring XX002 Rev 799 Surveyor99 Dome System...

  • Page 49: Configuration

    Configuration The Surveyor99 must be configured for its address and mode and termination setting when using RS-485 protocol. The address and mode are set using the two 8-position DIP Switch banks S1 and S2. It is necessary to determine which communication mode, Camera/Lens Module type and Surveyor99 address is required prior to configuration.
  • Page 50 DIP SWITCH 1 (S1) ADDRESS (NOVA/VPS MODE) SWITCHES SWITCHES SWITCHES Table 2 DIP Switch 1 (S1) Settings for NOVA/VPS Mode 40 • • • • Configuration XX002 Rev 799 Surveyor99 Dome System...

  • Page 51: Setting The End-Of-Line Jumpers Jp1, Jp2 & Jp3 For Rs-485 Protocol Operation

    Setting the End-of-Line Jumpers JP1, JP2 & JP3 for RS-485 Protocol Operation NOTE: DIP Switch 2 (S2) switch 4 must be set to the ON position (RS-485) for daisy chain operation enabled End-of-Line jumpers to work effectively. The End-of-Line jumpers do not affect RS-422 mode.
  • Page 52 NOTES 42 • • • • Configuration XX002 Rev 799 Surveyor99 Dome System...

  • Page 53: Disassembling The Surveyor99

    Disassembling the Surveyor99 The Surveyor99 can be easily disassembled by simply removing the Camera Dome from the Housing or the Camera Drive from the Enclosure. The In-Ceiling Mount Model requires removal of the Camera Drive and the Pendant models require removal of the Camera Dome Assembly. A Safety Cord is always available to safely hang the Camera Drive or Camera Dome Assembly while assembling or disassembling.
  • Page 54 NOTES 44 • • • • Disassembling the Surveyor99 XX002 Rev 799 Surveyor99 Dome System...

  • Page 55: Operation

    If the Surveyor99 fails to power-up correctly, go to the Troubleshooting sub-section of this section. When initial power-up has been completed and verified, Surveyor99 can be setup and operated in a normal fashion using a Vicon remote operator keypad, VPS/NOVA unit or through a PC running ProTech software.

  • Page 56: Verifying Proper Operation

    Surveyor99. Power-on the control device and verify that it boots up. Set up the control device for operation with the Surveyor99 in accordance with its Installation and Operation Manual. For a Vicon model V1300X-RVC or V1300X-DVC keypad connected directly to the Surveyor99 or through a CPU, use the following procedure to access Surveyor99 programming: 1.

  • Page 57: Troubleshooting

    4. Press the PP ENTER key again. The PRESET LED display remains with the number 95. The monitor will display the power-up test screen (Figure 40) for the duration of its initial testing. 5. The Surveyor99 then switches to the opening screen (Figure 41). This screen will display the Camera Dome Program version, current date/time, the current address and a request to send communications to baud detect.
  • Page 58 NOTES 48 • • • • Operation XX002 Rev 799 Surveyor99 Dome System...

  • Page 59: Maintenance

    Maintenance The Surveyor99 requires no scheduled maintenance; however, the Lower Domes require occasional cleaning. Care and Cleaning of Metallized Domes 1. Always handle the Lower Dome by the flange and avoid touching the inside surface, as acid in a fingerprint can etch the coating. Use the recommended cleaning procedure in Step 4. 2.
  • Page 60 NOTES 50 • • • • Maintenance XX002 Rev 799 Surveyor99 Dome System...

  • Page 61: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 62 NOTES 52 • • • • Shipping Instructions XX002 Rev 799 Surveyor99 Dome System...

  • Page 63: Reference

    CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. In all cases, coaxial cable impedance should be 75 ohms.

  • Page 64: Twisted-Pair Cable

    Twisted-Pair Cable CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances.

  • Page 65: Technical Information

    Technical Information ELECTRICAL Drive Type: Electrical motorized pan and tilt, electronic control. Camera Types: Units available in monochrome (EIA/CCIR) and color (NTSC/ PAL). Input Voltage: 20 - 34 VAC. Wire Size for Specified Cable Run Lengths: See Table 6. Wire Size (AWG) (Annealed Distance: Indoor Unit, ft (m) Distance: Outdoor Unit, ft (m)
  • Page 66 Fuse: F1: 2AG, 1.25 A 250 VAC, slo-blo. F2: 2AG, 2.5 A 250 VAC, slo-blo. Radio Frequency Emission Rating: FCC Class A . European Community (CE) Standards: EN 50081-1 generic emissions. EN-50082-1 generic immunity. OPERATIONAL Pan Speed: Variable, 0.25 - 300°/ sec. Autopan Speed: Variable, 3 - 45°/ sec.
  • Page 67 V1466 series NOVA CPUs, V1400-DVC System Console and V1300X-DVC desktop keypad or V1300-RVC rack- mounted keypad. Control Software: Vicon’s ProTech software (or compatible) run on a standard PC-type computer with an RS-422/485 half duplex protocol interface. Control Format: RS-422/485 data, simplex or half duplex protocol at 4800, 9600 or 19,200 baud or Vicon’s Vicoax II protocol...
  • Page 68 ENVIRONMENTAL Operating Temperature Range: Indoor: 35 to 140°F (2 to 60°C). Outdoor: -40 to 140°F (-40 to 60°C). Operating Humidity Range: Indoor: up to 90% relative, noncondensing. Outdoor: 100% relative. Storage Temperature Range: -40° to 150° F (-40° to 65° C). Storage Humidity Range: Up to 90% relative, noncondensing.
