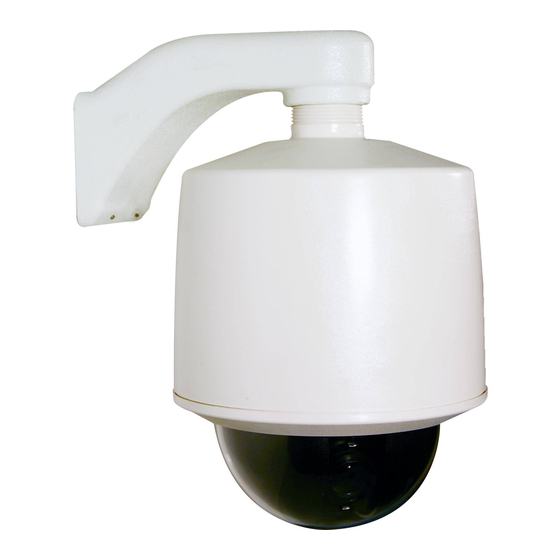

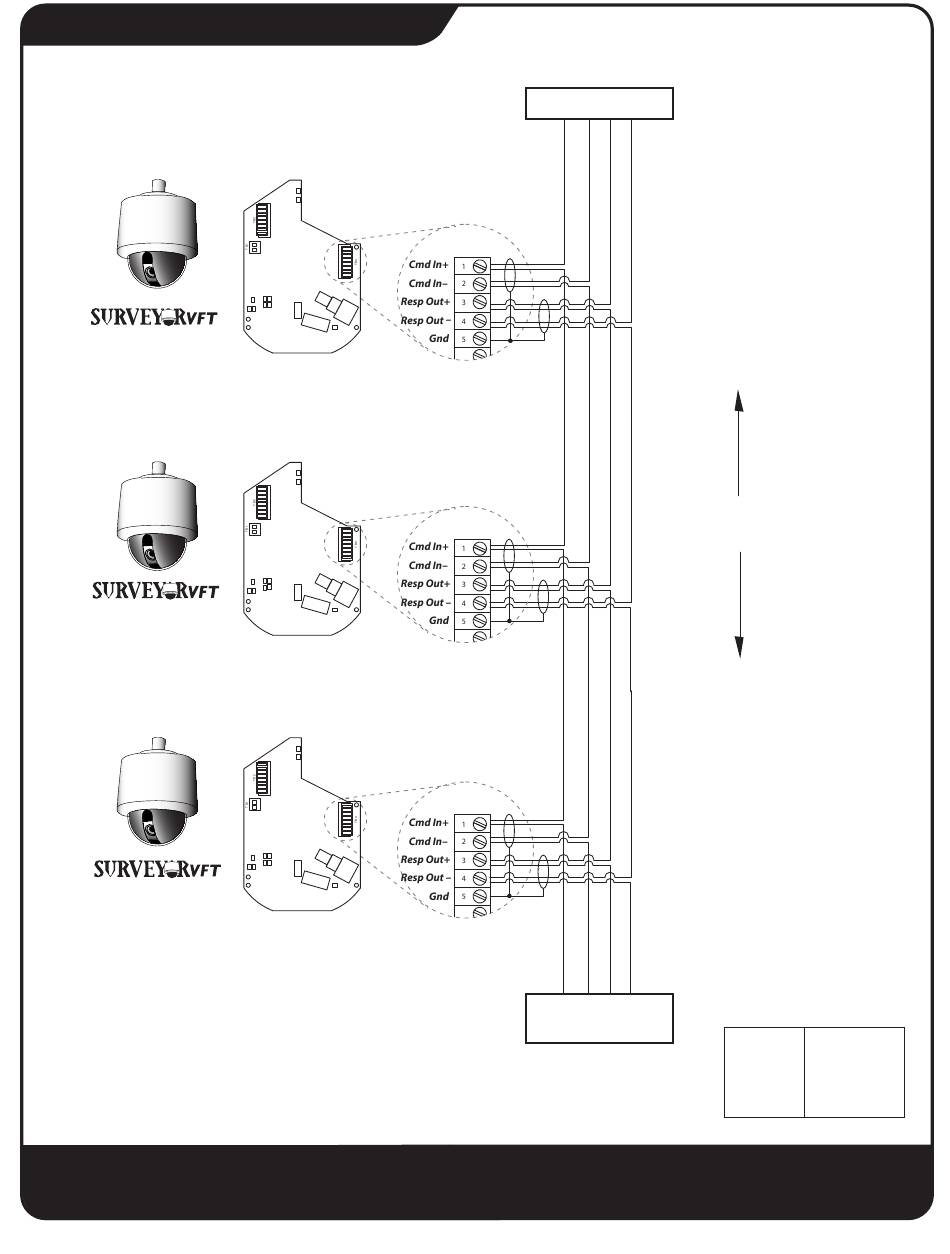

SVFT Daisy Chain Configuration
Coaxial
Note: Main board (not shown)
switch SW2 pole 4 must
be set to ON for RS-485.
Coaxial
Note: Main board (not shown)
switch SW2 pole 4 must
be set to ON for RS-485.
Coaxial
Note: Main board (not shown)
switch SW2 pole 4 must
be set to ON for RS-485.
Model #: SVFT
Terminal Block
Part #: 8004-8089-08-00
Terminal Block
Part #: 8004-8089-08-00
Terminal Block
Part #: 8004-8089-08-00
Part #: XX045-70-00
Vicon Industries • www.vicon-cctv.com
To Control Unit
TB3
TB3
TB3
Up to 32 SVFTs
in a Chain
Dual shielded
twisted-pair cable
(see table).
Max distance
5000 ft (1524 m )
end to end.
Dual shielded
twisted-pair cable
(see table).
Dual Shielded Twisted Pair
Cable Recommendations
Cable Type
Max Distance
Belden 9406
5000 ft (1500m)
Belden 9402
5000 ft (1500m)
Belden 8723
8000 ft (2400m)
Belden 8162
15000 ft (4600m)
Belden 9729
15000 ft (4600m)
Belden 9182
25000 ft (7600m)
Date: 6/14/04
