ViconNet 8.0 Software
Installation Guide

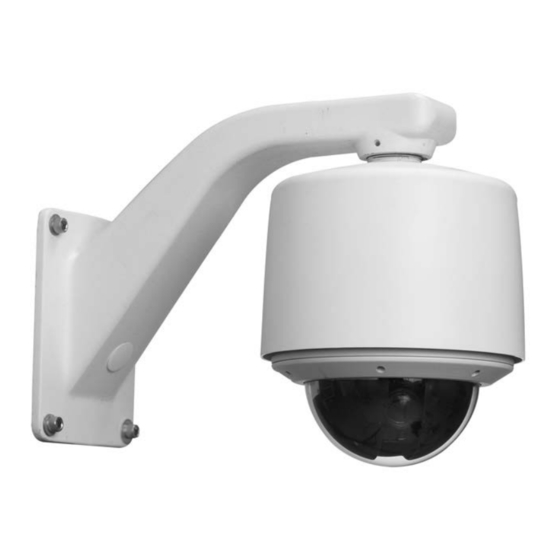

Surveyor® MKII Analog Camera Domes
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8283-00-00 Product specifications subject to change without
notice. Issued: 9/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
XXYYY-XX-XX
XX283-00-00
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Related Manuals for Vicon Surveyor MKII PTZ SV36W
Summary of Contents for Vicon Surveyor MKII PTZ SV36W
- Page 1 Surveyor® MKII Analog Camera Domes XX283-00-00 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will Tel: 631-952-2288) Fax: 631-951-2288 meet your requirements or that the operation will be entirely error free or perform Toll Free: 800-645-9116 precisely as described in the documentation.
-
Page 2: Chapter 1 Introduction
Introduction Chapter 1 Introduction This chapter provides general information about Surveyor MKII Analog PTZ Domes. Refer to the end of this chapter for the organization of the rest of this manual. The chapter consists of the following topics: Topic Page General Information Organization of this Manual Surveyor MKII Analog PTZ Dome... -
Page 3: General Information
The Surveyor MKII Analog PTZ Dome provides video transmission over coaxial cable. It can be used with Vicon’s Valerus and ViconNet or other Video Management Systems (VMS) via a compatible encoder. The Surveyor MKII Analog PTZ Dome is designed for easy installation and serviceability. - Page 4 Surveyor MKII Analog PTZ Dome Maintenance and Reference: Describes basic system maintenance, reference information, shipping instructions and technical specifications for the camera dome. Note Always check the Vicon website, www.vicon-security.com, for the latest updated manuals. Surveyor MKII Analog PTZ Dome...
-
Page 5: Chapter 2 Installation
Chapter 2 Installation Chapter 2 Installation This chapter provides installation information for the Surveyor MKII Analog PTZ Dome. The chapter consists of the following topics: Topic Page Installation Quick Installation Detailed Installation Surveyor MKII Analog PTZ Dome... -
Page 6: How To Use This Manual
Installation Installation Caution This unit should only be installed by a qualified technician using common hand tools and approved materials and wiring methods in accordance with the National Electrical Code ANSI/NFPA 70, state and local wiring codes. All interconnecting equipment or accessories must be UL Listed. Any mention in this manual of alarm inputs/outputs have not been evaluated by UL to be used for burglar alarm functionality. -
Page 7: Accessory Kits
Refer to the Wiring section of this manual for details on using the supplied removable termination blocks. Unpacking All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. - Page 8 Installation Components All Surveyor MKII units are comprised of a Housing, a Camera Drive, a Shroud and a Lower Dome. These components may be packed in separate boxes within the main box. Housing The housing for the Surveyor MKII outdoor pendant configuration has a die- cast aluminum housing with a sunshield.
- Page 9 Chapter 2 Installation Quick Installation - Outdoor Surveyor MKII Analog PTZ Dome...
-
Page 10: Detailed Installation
Pendant Mount Installation The outdoor model mounts on a variety of Vicon mounts or a 1.5-inch vertical pipe with an appropriate coupling. The pipe is a standard 1.5-inch NPT type and must be oriented vertically so the Surveyor MKII can effectively hang from the pipe. - Page 11 2-10 Chapter 2 Installation 5. Apply the provided anti-seize lubricant to the first 2-3 unpainted threads of the housing. 6. Lift the housing/sunshield up to the mount and feed the cables through its top opening. 7. Place the housing onto the 1.5-inch pipe and screw clockwise, looking up at the housing.
- Page 12 2-11 Installation 13. Swing the customer interface board back into place. If interface board was completely removed, be sure to reinstall it correctly, with the black connector near the wall of the housing. After wiring is complete, dress cables up over board. 14.
- Page 13 2-12 Chapter 2 Installation lower dome up and verify that it snaps into place on both sides. See Figure below. 19. Tighten the 4 trim ring captive screws to hold the lower dome in place. Verify proper orientation of the grommet. On the impact- resistant version, there are 6 screws.
-
Page 14: Chapter 3 Wiring
3-13 Wiring Chapter 3 Wiring This chapter will describe how to wire, configure and operate the Surveyor MKII Analog PTZ Dome. The chapter consists of the following topics: Topic Page Wiring the Surveyor MKII Analog PTZ Dome ..........3-14 Typical Relay and Alarm Connections ............3-15 Installing the Cables .................. - Page 15 3-14 Chapter 3 Wiring Wiring the Surveyor MKII Analog PTZ Dome Wiring is done with runs of cable for power, video and control. Optional wiring can be installed for the alarm input. Power Power cables carry AC power and are usually a two-conductor type ranging in size from 20 to 16 AWG.
-
Page 16: Typical Relay And Alarm Connections
3-15 Wiring COMMAND IN ± (TX): A signal from the CPU that causes some function to occur in the Surveyor MKII. Typical Relay and Alarm Connections Alarm input and relay output type signals are also carried on individually- shielded twisted-pair cable sets. The signals are defined in the following descriptions. - Page 17 3-16 Chapter 3 Wiring Since dry contact switches are normally defined in terms of their inactive or “normal” state, the following holds true: NORMALLY CLOSED (NC) = ACTIVE HIGH (OPEN) NORMALLY OPEN (NO) = ACTIVE LOW (CLOSED) To Dome The “active” state can be programmed through the Surveyor MKII web browser interface.
-
Page 18: Installing The Cables
3-17 Wiring Installing the Cables Warning Disable the AC power to prevent installer injury and damage to the unit. Cables are routed from the inside of the housing to the customer interface board. There should be minimal wire slack at all connection points. After wiring is complete, dress the cables so they are up over the board. - Page 19 3-18 Chapter 3 Wiring Wiring Connections Table Not used Surveyor MKII Analog PTZ Dome...
-
Page 20: Installation Configurations
The star configuration requires the use of a Distribution Line Control, such as Vicon’s V1400X-IDL that can support up to 10 domes. Refer to the figure below for an illustration of sample configurations. - Page 21 3-20 Chapter 3 Wiring If the Surveyor MKII is wired in a daisy-chain configuration, the last dome in line must be terminated using DIP switch S1 on the on the CI board. Refer to the figure below. Turn both poles ON for termination. The default setting is OFF.
- Page 22 Vicon/Pelco protocol (note that NTCIP is not supported at this time); the proper Vicon or Pelco protocol will be detected. There is a label on the drive mechanism with DIP switch details if it is preferable to manually make these settings.
- Page 23 Technical Specifications for the Surveyor MKII Analog PTZ Dome. The chapter consists of the following topics: Topic Page Operation 4-23 Maintenance 4-25 Shipping Instructions 4-26 Cable Recommendations 4-27 Technical Specifications 4-28 Vicon Standard Equipment Warranty 4-30 Surveyor MKII Analog PTZ Dome...
- Page 24 4-23 Operation, Maintenance and Reference Operation Following the complete installation of the Surveyor MKII, it is necessary to perform an initial power-up test to verify proper operation. When this is complete, the dome can be setup and operated. Setup an appropriate monitor and connect the video out cable from the dome to the monitor.
-
Page 25: Verifying Proper Operation
4-24 Chapter 4 Operation, Maintenance and Reference Verifying Proper Operation Set up a remote keypad via RS-422/485 to the Surveyor MKII. Power-on the control device and verify that it boots up. Set up the control device for operation with the Surveyor MKII in accordance with its manual. To access the Main Menu, send a Save preset 94 command. - Page 26 4-25 Operation, Maintenance and Reference Maintenance The Surveyor MKII requires no scheduled maintenance; however, the lower domes require occasional cleaning. The clear and smoked domes are referred to as acrylic type domes. The chrome and gold domes are referred to as metallized type domes. All domes require careful handling and occasional cleaning.
-
Page 27: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 28: Coaxial Cable Recommendations
Coaxial Cable Recommendations Caution Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms. -
Page 29: Technical Specifications
4-28 Chapter 4 Operation, Maintenance and Reference Technical Specifications Electrical Input Voltage: 24 VAC Power Consumption: <40 W (including heater) Certifications: CE; FCC Class A International Protection (IP) Ratings: IP66 Camera and Optics Image Device: 1/4-inch CCD progressive scan Zoom: 36X optical;... - Page 30 Range: -4 to 140° F (-20 to 60° C) Rain/Wind: Heavy rain up to 4 in./hr at winds up to 90 mph when mounted on standard Vicon wall mount Compliance: International Protection (IP) Rating IP66 Surveyor MKII Analog PTZ Dome...
-
Page 31: Vicon Standard Equipment Warranty
“autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. - Page 32 Except as provided in this written warranty and to the extent permitted by law, neither Vicon nor any affiliated shall be liable for any loss, (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory.
- Page 33 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
