Quick Guide
XX282-20-00

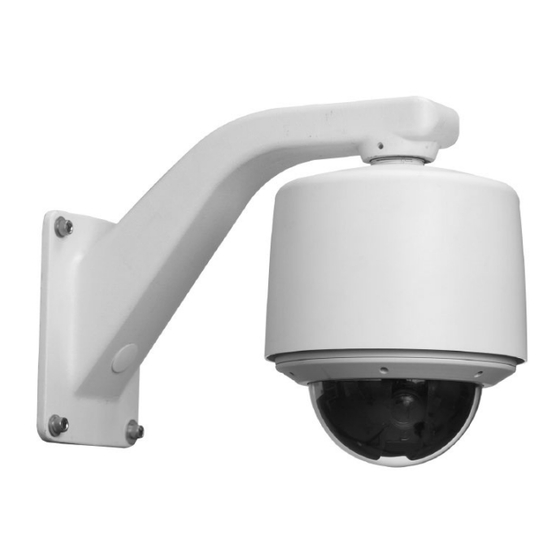

Surveyor® MKII Series
Network Camera Domes
Vicon Industries Inc.
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8282-20-00
Issued: 1116
Product specifications subject to change without notice.
Copyright © 2016 Vicon Industries Inc. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Vicon Surveyor MKII Series XX282-20-00
Summary of Contents for Vicon Surveyor MKII Series XX282-20-00
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
- Page 2 The Surveyor MKII supports high-profile H.264 or M-JPEG compression. The dome supports ONVIF open architecture connectivity to enable integration into third party software recording solutions, as well as Vicon’s Valerus and ViconNet VMS. The Surveyor MKII is designed for easy installation and serviceability.
-
Page 3: Installation
Quick Operation Guide Installation Outdoor and Impact-Resistant Pendant The Customer Interface (CI) board is packed separately with the mechanism. This has to be snapped into the housing. - Page 4 Quick Operation Guide Pressurized The Customer Interface (CI) board is packed separately with the mechanism. This has to be snapped into the housing.
-
Page 5: Wiring And Setup
Quick Operation Guide Wiring and Setup CONNECTOR/PIN CONNECTOR TYPE CONNECTOR/PIN LABEL SIGNAL NAME NUMBER TERMINAL BLOCK POWER (J2) J2-1 J2-2 Neutral TERMINAL BLOCK ALARM (J11) J11-1 ALARM 1 Alarm I/O 1 J11-2 Ground J11-3 ALARM 2 Alarm I/O 2 J11-4 Ground J11-5 ALARM 3... - Page 6 Quick Operation Guide Pressurized Cable Preparation Be sure to connect the plastic tube to the pressure sensor on the Customer Interface board. Using the prefabricated cable. Using a customer prepared cable...
-
Page 7: Using The Web Browser Interface
The camera dome defaults to using DHCP. The Surveyor MKII login screen displays. Note that the Discovery tool utility for the Surveyor MKII is available on Vicon’s website, vicon-security.com, under Learn and Support, Software Downloads. The utility will not be included in the dome’s accessory kit. - Page 8 Quick Operation Guide Login The initial screen prompts the user to login with a user name and password. Upon first use, the default user name is ADMIN (upper case) and the password is 1234. It is recommended to modify the password of the admin user to ensure security of the system.
- Page 9 Quick Operation Guide The Setting area allows for configuration of a variety of controls. • The System tab screen provides network, time zone settings and advanced settings for importing files, setting defaults and reboots. • The Network screen provides settings for FTP, SMTP, HTTPS, 802.1X, QoS, IGMP, SIP, MDA, DDNS, UPnP and IP filter.
- Page 10 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
