Installation

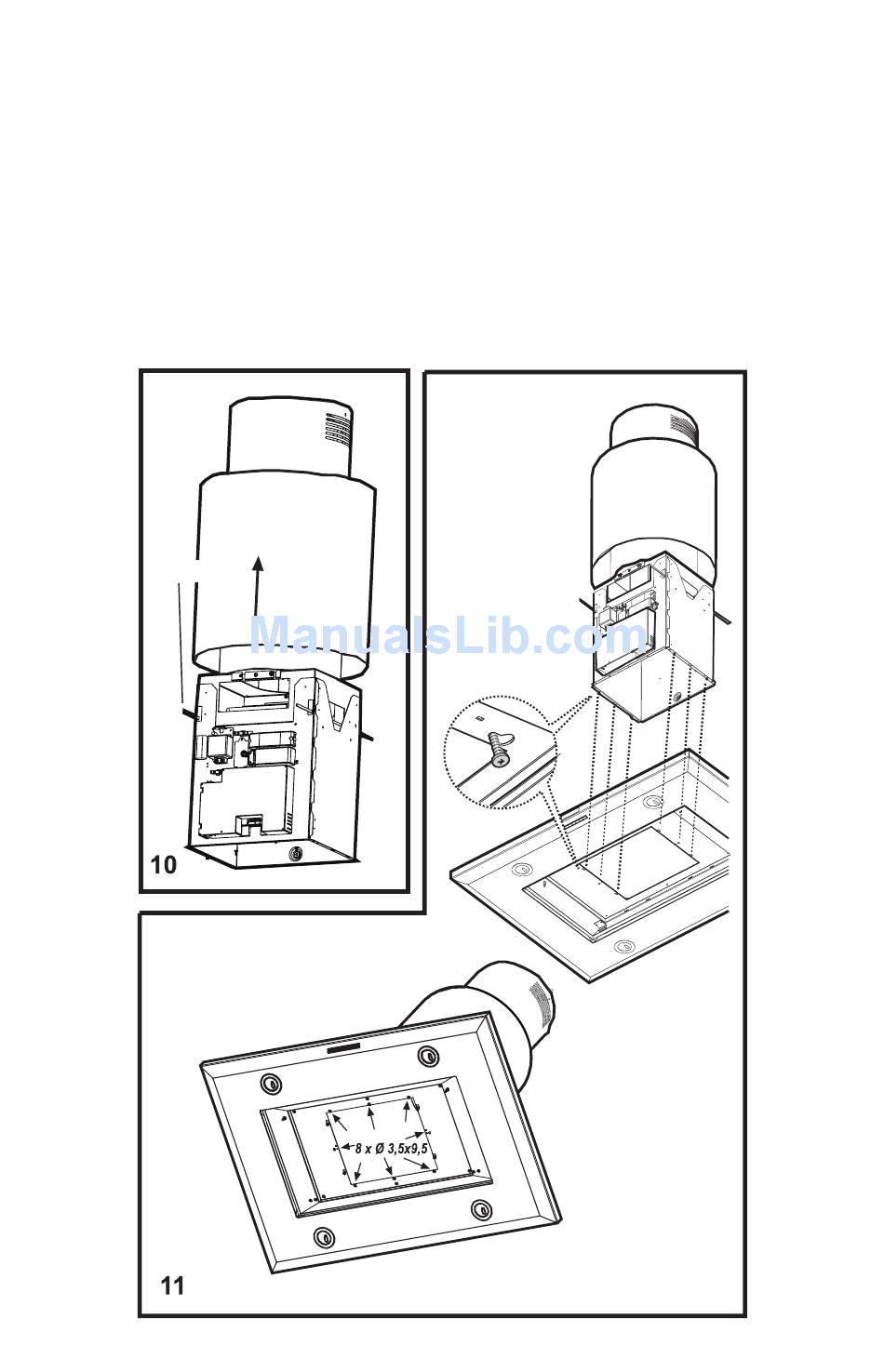

Fig. 10
• Insert the lower chimney flue onto the motor
unit (check that the re-edged side is facing
upwards) and to keep it temporarily in position,
insert the two temporary support rods into the
side slots on the motor unit.
Place the lower flue on the rods.
Note: this is essential as it makes the installation
easier.
Rods
Fig. 11
• Hook the hood onto the motor unit using the 4
screws previously screwed onto the unit and
the hook slots on the hood.
• Fix securely using 8 screws fixing from the
bottom and tighten all the screws.
