Installation

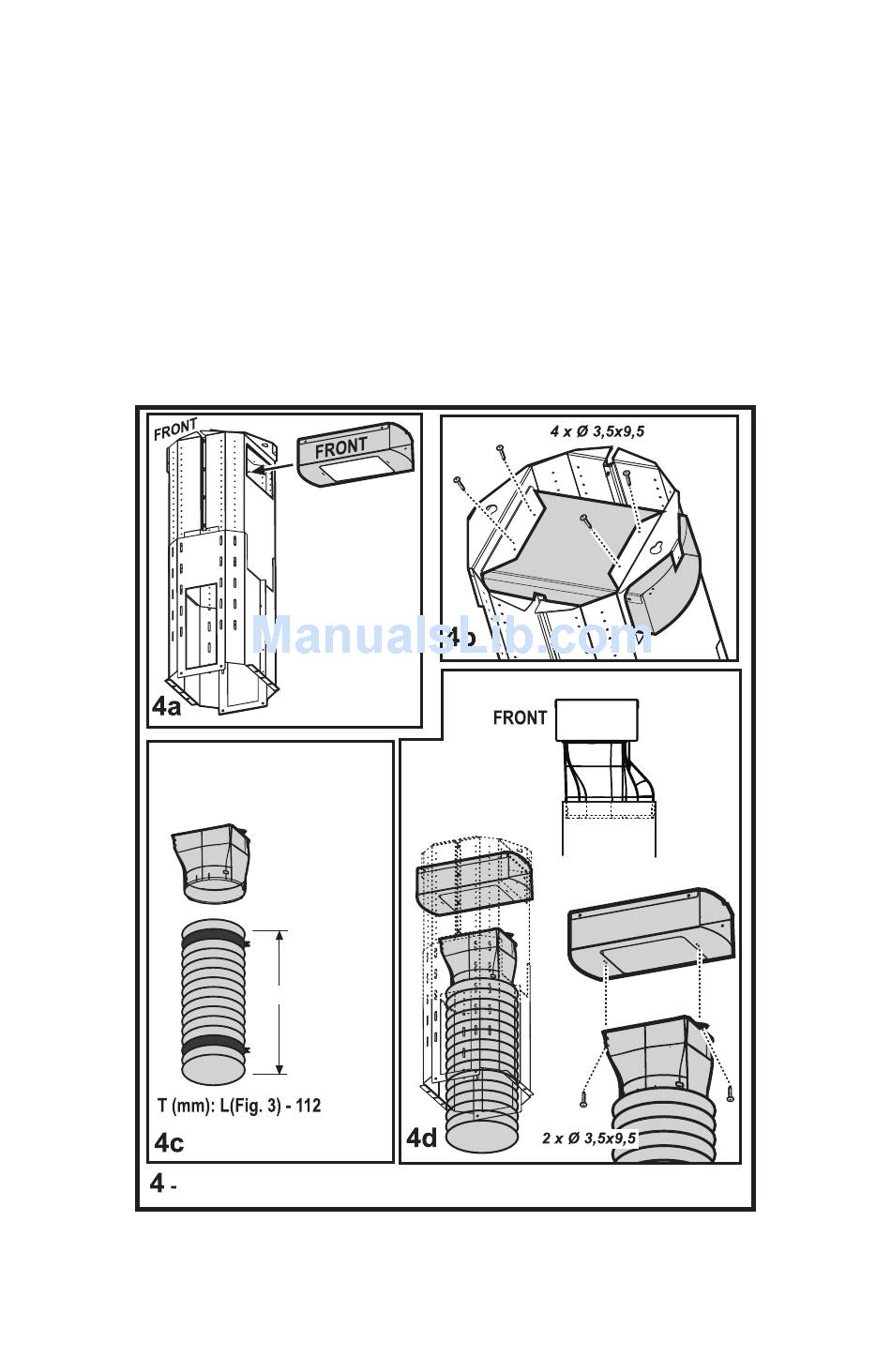

Fig. 4
• Recirculation mode only: fix the deflector to the
frame:
a. Insert the deflector from one side of the
frame so that the rectangular hole at the centre
is facing downwards.
b. Fit the deflector with 4 screws from the top
of the frame.
Recirculation mode only
T recirculation
mode
8
c. Connect a suitable extraction pipe to the
connection ring provided. It should be long
enough ( with a diameter of 150mm) to reach
the connection ring on the motor unit when it is
installed. Use the mathematical formula in the
diagram to do this.
d. Insert the pipe with the connection ring
upwards and fix it to the deflector with 2 screws.
SIDE VIEW
Deflector
Connection
ring
Exhaust
Vent
Pipe
