Instruction Manual
HDMI® Audio/Video Over IP Extender Kit
ST12MHDLAN
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/15/2013
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST12MHDLAN
Summary of Contents for StarTech.com ST12MHDLAN
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/15/2013...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Preparing Your Site ........................... 3 Hardware Installation Using Gigabit LAN Network ..............4 Hardware Reset Procedure ........................6 EDID Copy ..............................6 Factory Default Setting ........................... 6 Specifications ..................7 Technical Support ..................8 Warranty Information ................8... -
Page 4: Introduction
Introduction The ST12MHDLAN HDMI® Over IP Extender kit lets you extend an HDMI® audio and video signal over a Gigabit LAN network. The kit includes both the extender and receiver for a complete all-in-one solution, and offers a highly scalable installation when used with additional ST12MHDLANRX receiver units (sold separately). -
Page 5: Receiver Unit

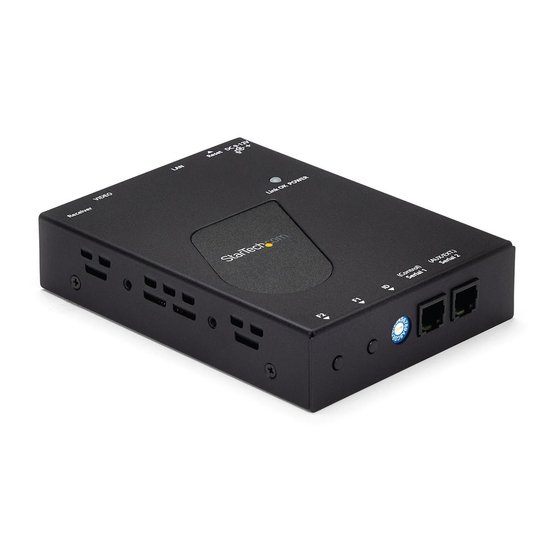

Transmitter Unit 1. F2 (Not Active) 1. Power Jack 2. F1 (Used during factory 2. Network Status LED default setting) 3. Reset Button 3. Dip Rotary Switch (Used to 4. LAN Port (RJ-45 Connector) pair Transmitter to Receiver) 5. Video In 6. -
Page 6: Preparing Your Site
Preparing Your Site NOTE: The ST12MHDLAN HDMI® extender kit can use a Gigabit LAN Network to extend the signal. Most Gigabit Network portals have a cable length restriction of 330 ft. (100m). Refer to the manufacturer of the equipment to determine the length restriction and ensure the Transmitter Unit, and Receiver Unit(s) are all within the restricted range of the nearest network portal. -
Page 7: Hardware Installation Using Gigabit Lan Network
Hardware Installation Using Gigabit LAN Network 1. Install Transmitter Unit a) Position the Transmitter Unit near the video source (i.e. Computer, Blu-ray Player). b) Connect an HDMI cable from the video source device (i.e. computer, Blu-ray Player) to the “Video In” port on the Transmitter Unit. c) Connect the provided Transmitter Unit power supply. - Page 8 (Optional) Point to Point Hardware Installation without Gigabit LAN Network NOTE: While range is reduced to a maximum of 330 feet (100 Meters) the ST12MHDLAN HDMI® extender kit also allows for extending the signal without a Gigabit LAN Network by connecting the Transmitter directly to the Receiver using CAT5e/6 cabling.
-
Page 9: Hardware Reset Procedure
Hardware Reset Procedure NOTE: If video signal does not appear on the display a hardware reset can be performed on the Transmitter Unit, or individual Receiver Units. 1. Press the reset button on the device using a pin point tool, such as a ballpoint pen or a bent paper clip. -
Page 10: Specifications
Specifications Maximum Digital Resolutions 1920x1200 @60Hz Supported Resolutions 1920 x 1200 (1080p) Wide Screen Supported Audio Specifications Stereo Sound Interface HDMI® Cabling Cat 5e UTP or better Audio Rack-Mountable HDMI® Industry Standards HDCP Daisy-Chain 1x HDMI® (19 pin) Transmitter Connectors 1x RJ-45 1x HDMI®... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
