VTA-7570T User's Manual
3.11

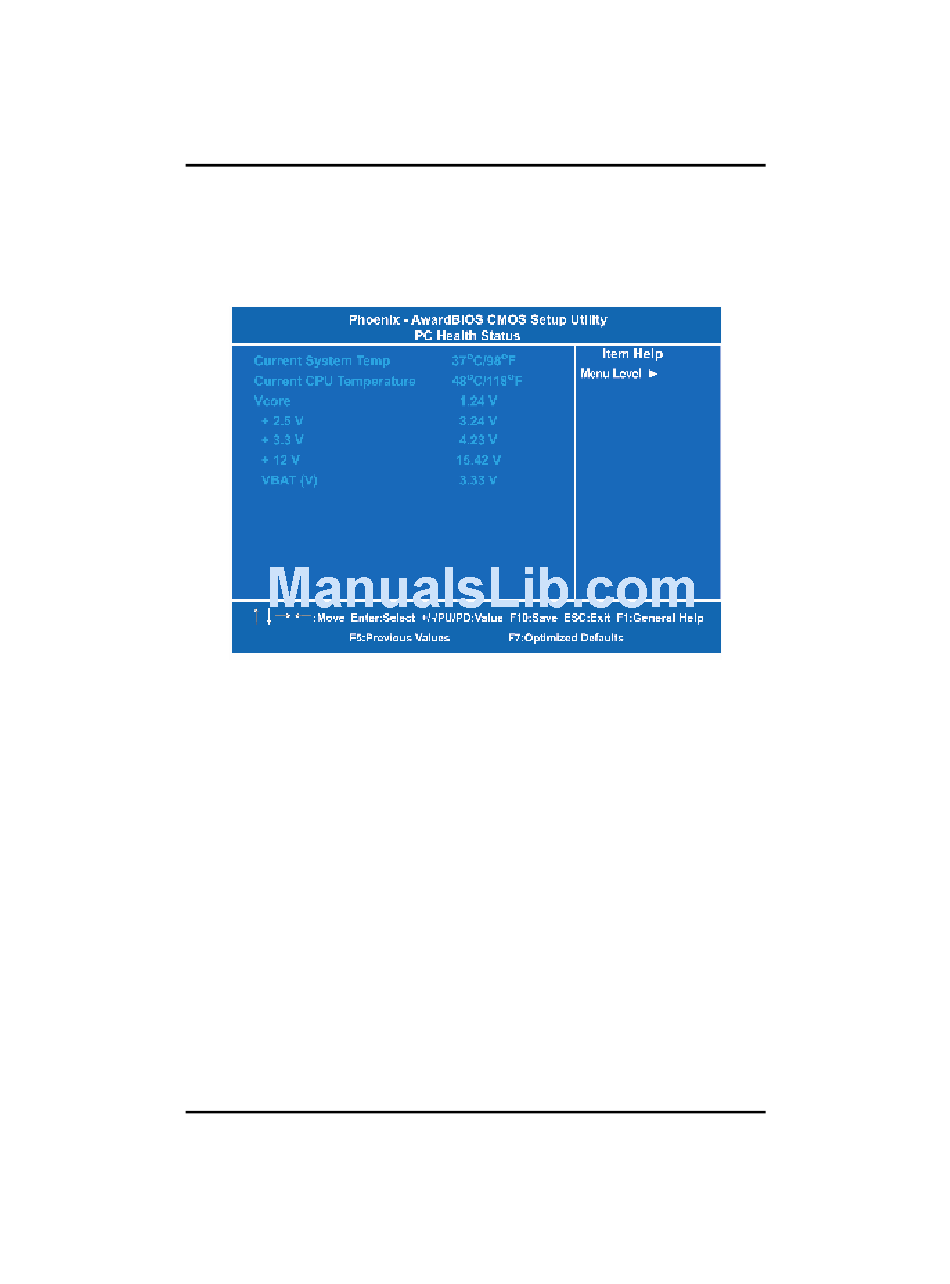

PC Health Status

This section supports hardware monitoring that lets you monitor those
parameters for critical voltages, temperatures and fan speed of the
board.
l Current SYSTEM Temp
Show you the current system temperature.
l Current CPU Temp
The current system CPU temperature will be automatically detected by
the system.
l Vcore 2.5V/3.3V/+12V/VBAT(V)
Show you the voltage of 2.5V/3.3V/+12V/VBAT.
Press <Esc> to return to the Main Menu page.
32 PHOENIX-AWARD BIOS UTILITY
