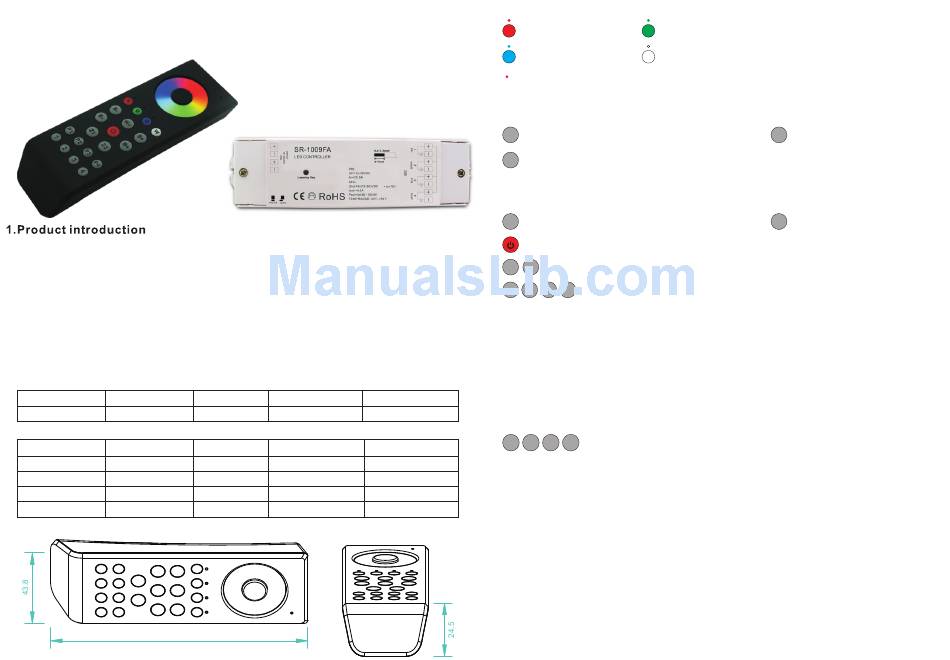

Sunricher SR-2819T User Manual

RF RGB(W) Remote controller User
SR-2819T
Easy RGB(W) remote controller is a wireless color controlling system that consists of a sender
and a receiver or several receivers. By selecting switch status, you can set the system as RGB 3-
channel output, or RGBW 4-channel output. Using Easy RGB(W) remote controller, you can get
whatever color you want; you can choose any color from RGB(W) to adjust so as to mix more than
100 mi l l ion kinds of colors.
With built-in 10 kinds of color changing modes, you can easily switch color changing modes and
adjust speed and brightness. "Function Pause" enables RGBW LED to stay at your favorite color
under the situation of color changing modes, which operation is simple but functional.
2.Performance Parameter
Remote
Operation Voltage
Part No.
SR-2819T 4.5VDC
Receiver
Part No. Iuput Voltage

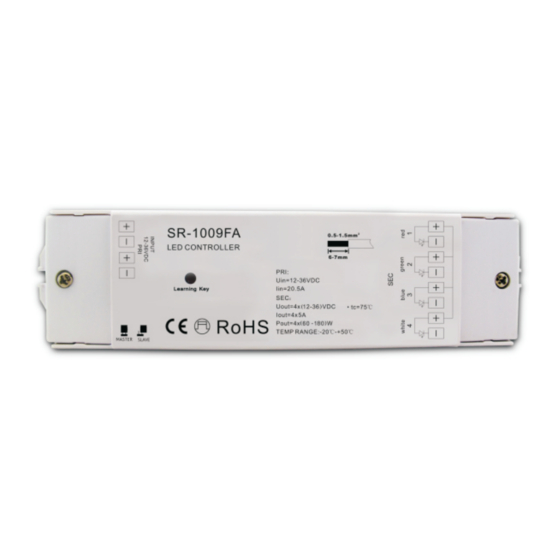

SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
3.Product Size
131.6
Manual
Operation DIMENSIONS
Frequency ø/h (mm)
load 3pcs 7 AAA (1.5V)
434MHz/868MHz 43.8x131.6x24.5
Output
Current
4x5A
4x(60-180)W
4x8A 4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
4.Button introduction
R "R"button and indicator
B
"B"button and indicator
Working status indicator, the sender is in dormant status when the indicator is off. The sender
is under working when the indicator is flashing rapidly. If the indicator continues flashing at the
frequency of 1 second, it indicates that the sender batteries low and needs to replace new
batteries.
S- Slow down the speed when color is changing
W+
With this button it shall be getting three shades of white color (cold white, neutral white and
warm white; a mixture of RGB colors), and to get white color while using the controller in
RGB-mode.
This function needs to be available in RGBW-mode as well to get a versatile white color
range
B-
Brightness down
Turn ON/OFF
Z1 Z2
:2 zones
P1 P2 P3 P4
Each program shall be speed selectable from 20 seconds (most fast) to 15 minutes (slowest).
When you press the button first, the program starts, after a second press, it pauses, then after
pressing again, the program continues.
The programs shall include the following:
- smooth color change (red, yellow, green, turquoise, blue, pink, white)
- smooth change of warm color range (red, yellow, pink, hot pink and mixed warm colors)
Remarks
- smooth change of cold color range ( blue, green, turquoise, light blue, white,mixed cold colors)
batteries
- hard color change (red, orange, yellow, green, light blue, dark blue, pink)
1 2 3
Remarks
Constant voltage
Constant voltage
Constant current
5.Operation
Constant current
5.1 Do wiring according to connection diagram and install battery into remote control.
5.2 How to learn&delete ID process?
a. Wake up the remote by any button except touch color wheel.
b. Press at learning button on receiver.
c. Press any zone button(which you desire to control) on remote.
d.Then touch color wheel.
e.Connected LED light will blink to confirm zone designation.
f.Press learning button on receiver for over 5 seconds until connected LED light flash off,
then delete the learned ID. If you want to learn receiver into another zone, please follow
learning ID process operation 2.
G "G"button and indicator
W
"W"button and indicator
:4 programs.
4
:4 buttons for storable colors. The user can chose his 4 favorite colors by
using the color-wheel or the color change programs and can save each one by
pressing the particular button for 3 seconds.
S+ Speed up when color is changing
B+
Brightness up
