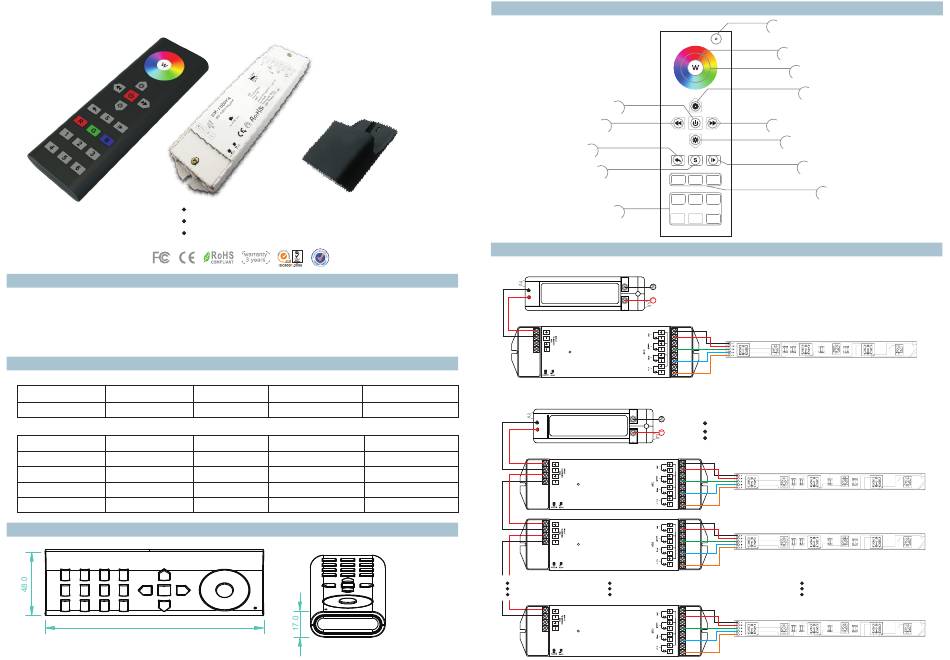

Sunricher SR-1009F Series Manual

RF wireless LED remote controller
Model:SR-2819 with SR-1009Fxx

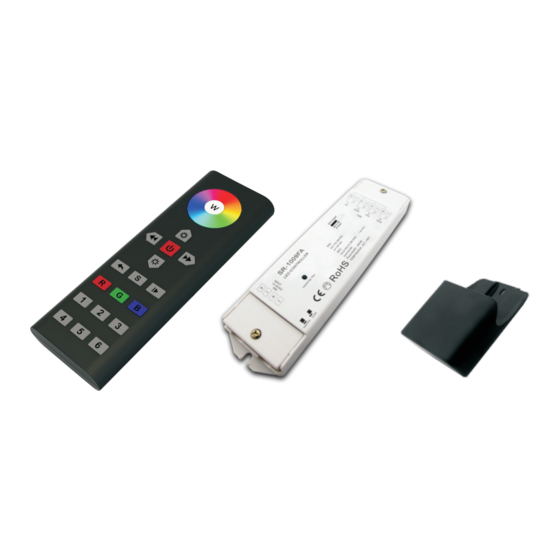

Product introduction
SR-2819 RGBW remote controller has 6 different zones. It can get Red/ Green/ Blue/ White color directly. The
remote controller can save up to 6 colors or 6 modes into corresponding buttons (1-6 positions) for each zone.
You can choose any color through color wheel. you can set the system as RGB 3-channeloutput, or RGBW 4-
channel output
Parameter
Remote
Operation Voltage
Part No.
SR-2819 3.6VDC
Receiver
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
Product Size
140.0
Six zones/areas
Press-button RGBW controller
Receivers work with WIFI-RF convertor to be controlled by smart phone
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 48x140x16
Current Output
4x5A
4x(60-180)W
4x8A 4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Brief introduction of buttons
Speed down under dynamic mode
Return previous status button
Save button: save up to 6 colors
or modes into 6 positions
6 zones: each zone can save
Wiring diagram
1)Receiver Connection Diagram for Single Unit
Remarks 2) Receiver Connection Diagram for Multiple Units
load 3pcs 7 AAA (1.5V)
batteries
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
ON/OFF of all zones
R G B
(6-zone buttons)
1 2 3
5
6 color or modes 4 6
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Note:
Power Supply One receiver can work with 1-8pcs SR-2819
110V-230VAC
12-36VDC
One SR-2819 control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
LED CONTROLLER
Learning Key
SR-1009FA
Learning Key LED CONTROLLER
SR-1009FA
LED CONTROLLER
Learning Key
Indicator: indicate the state of
remote control
White channel: the 4th channel
Touch color wheel
Brightness: dim up
Speed up under dynamic mode
Brightness: dim down
Pause/Run button: 10 modes
built-in
R/G/B channels
