Sunricher SR-1005 Series User Manual

SR-2809&SR-1005XX RGB Remote controller

User Manual

RF Touch RGB remote controller is a wireless color controlling
system that consists of a sender and a receiver or several receivers
Using RF Touch RGB remote controller, you can get whatever color
you want, you can choose any color to adjust so as to mix more than
100 million kinds of colors. With built-in
kinds of color changing mode, you can easily switch color changing
modes and adjust speed and brightness. "Function Pause" enables
RGB LED to stay at your favorite color under the situation of color
changing mode, which operation is simple but functional.
There are three working frequencies for option: 434MHZ
868MHZ or 915MHZ, which are suitable for Europe, Americas and all
global market demands .All products completely comply with
European CE regulations and American FCC regulations.
2.Performance Parameter
2.1 Sender: (model: SR-2809)
Working frequency:434MHZ/868MHZ/915MHZ (optional)
2.2 Receiver (model: SR-1005TA/SR-1005FA/SR-1005FA3/SR-1005FA7)
Input Voltage：12-36VDC
Output Voltage：12-36VDC
Input Current：3CH×3A max (SR-1005TA)
3CH×5A max (SR-1005FA)
3CH×350mA (SR-1005FA3)
3CH×700mA (SR-1005FA7)
Output power：3CH×(36-108W) max (SR-1005TA)
3CH×(60-180W) max (SR-1005FA)
3CH×(4.2-12.6W) (SR-1005FA3)
3CH×(8.4-25.2W) (SR-1005FA7)
Working Frequency：434MHZ/868MHZ/915MHZ ( optional)

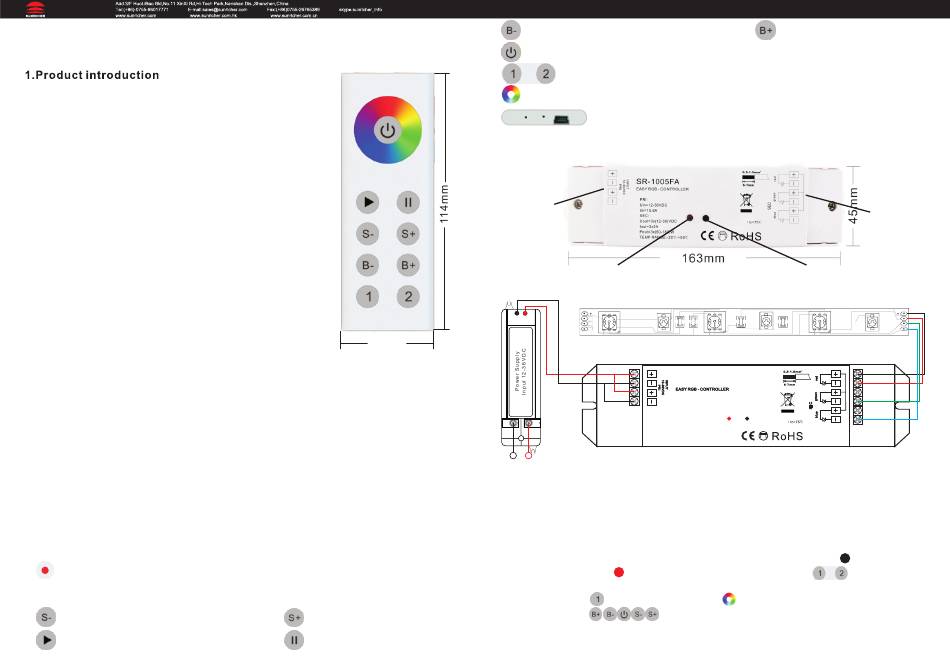

3.Components description

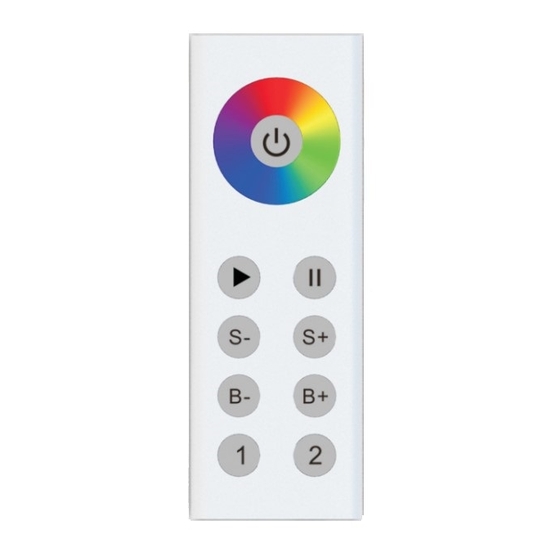

3.1 Sender (model：SR-2809)
Working status indicator, the sender is in dormant status when the indicator is off. The
sender is under working when the indicator is flashing rapidly. If the indicator continues
flashing at the frequency of 1 second, it indicates that the sender batteries low and needs to
be recharged.
Slow down the speed when color is changing
Multifunction button, used for selecting
，
41mm
Speed up when color is changing
Pause
Brightness down
Multifunction button, used for turn ON/OFF and white output
Figure 1-2 is for selecting receiver's ID and ID itself to turn ON/OFF
Touch wheel for selecting R/G/B colors
left indicator will be on when charging, middle indicator is for reset switch,
right one is for USB socket.

3.2 Receiver (Model: SR-1005TA/SR-1005FA/SR-1005FA3/SR-1006FA3)

Power input
socket
Receiver ID code learning indicator and
for receiving message
R
G
B
N L
110-240V
4.Basic Usage

4.1 Install battery

Initial using RF Touch RGB remote controller, Needs remote control charging

4.2 Receiver learning ID

Initial using RF Touch RGB remote controller must learn the ID of the receiver, the purpose of
learning ID code is to make a certain receiver which can correspond the sender.
The method of Receiver learning ID is as follows: press the ID learning button
the ID learning indicator is on, then press one of the number button
press the number that you want this receiver to be, E.g. If you want this receiver to be No. 1,
please press button first, then touch the wheel
the sender, such as etc. to transmit signal to the Sender, after Receiver receives
the signal from the sender, the indicator will flash a few times and then turns off, then receiver ID
is activated. If the ID activation is failed at the first time, please repeat the previous procedures.
Brightness up
Receiver ID code learning Button
RGB color changing LED light
SR-1005FA
PRI:
Uin=12-36VDC
Iin=15.8A
SEC:
Uout=3x(12-36)VDC
Iout=3x5A
Pout=3x(60-180)W
TEMP RANGE:-20℃-+50℃
on the sender,
on the sender,
,or you can press any functional button on
RGB output
socket
R
G
B
