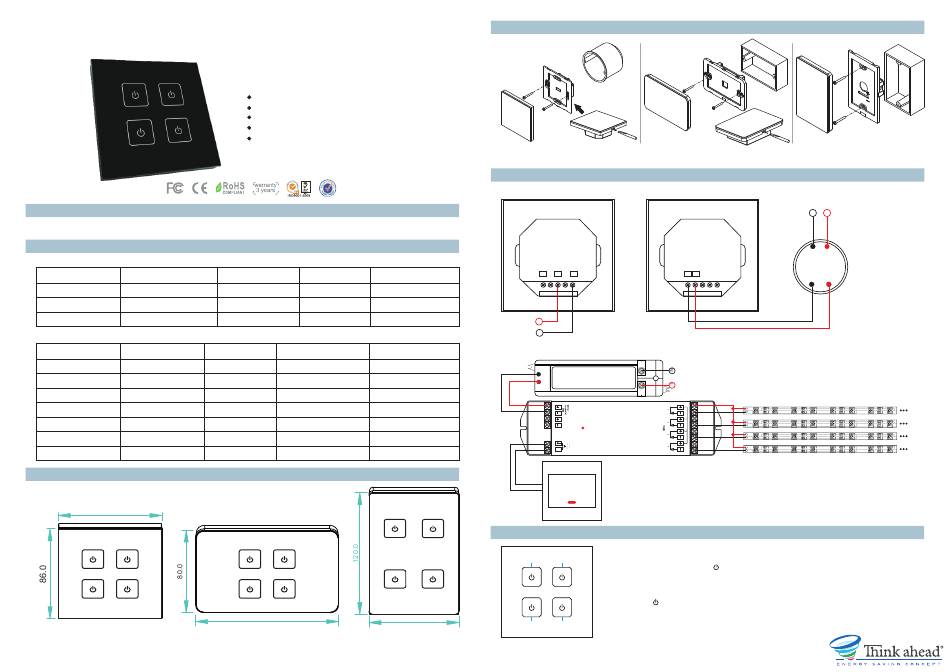

Sunricher SR-2805T2 User Manual

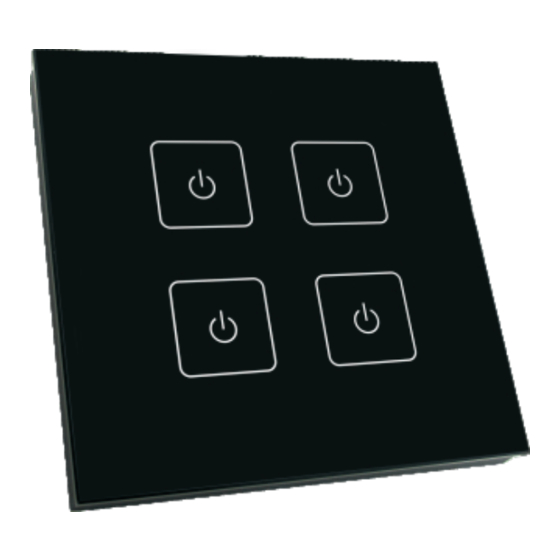

4 zone RF wireless wall mounted touch dimmer remote
Feature
This is a RF Wireless full touch wall mounted dimmer Remote 4 zones

Parameter

Remote
Operation Voltage
Part No.
SR-2805T2 12-24VDC/110-240VAC
SR-2805T2(IT) 12-24VDC/110-240VAC
SR-2805T2(US) 12-24VDC/110-240VAC
Receiver
Iuput Voltage
Part No.
SR-2501N 12-36VDC
SR-2501NEA 12-36VDC
SR-2502N 12-36VDC
SR-2503N 12-36VDC
SR-2501NS 12-36VDC
SR-2502NS 12-36VDC
SR-2503NS 12-36VDC

Product Size

86.0
SR- 2805 T2
SR-2805T2
4 zones
Touch sensitive
Glass interface
Back lighting for finding in the dark
Italian/ Australian, US wall mounted size available as well.
Output
RF Frequency Control distance
RF Wireless Signal 434MHz/868MHz About 30m
434MHz/868MHz About 30m
RF Wireless Signal
RF Wireless Signal 434MHz/868MHz About 30m
Current Output Remarks
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W Constant current
1x8A 1x(96-288)W
Constant voltage
1x350mA 1x(4.2-12.6)W Constant current
1x700mA 1x(8.4-25.2)W
Constant current
120.0
SR- 2805 T2(IT) SR- 2805
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at

Installation

SR- 2805 T2

Wiring diagram

1)Sender Connection
SR-2805T2-AC
L N
L
110V-230VAC
N
2)Receiver Connection Diagram
Power Supply
12-36VDC
Learning Key
GND
PUSH

Operation

Zone 1 Zone 2
Zone 3 Zone 4
75.0
T2(US)
SR- 2805 T2(IT)
Diagram
SR-2805T2-DC
GND Vin
110V-230VAC
SR-2501N
RF Easy Dimmer
4x5A
User manual when work with SR-2501/2/3N, SR-2501/2/3NS for single color:
1.Pairing with remote: connect well receiver, short press learning key on receiver,
then immediately touch any of ,to assign the receiver in any of the zone you want,
the led light will flash, means well paired.
You can pair endless of receivers to any of the zones you want.
2.Short touch to turn ON/OFF the light,long touch it to dim up brightness, long touch
it again to dim down, long touch it again to dim up, so it's a up-down-up-down circulation.
3.If you want delete the receiver's learning data, just long press for 5 seconds the
learning key on receiver, the reciever will be deleted the learning, be set as factory
defaults.
SR- 2805 T2(US)
110V-230VAC
N L
Power Supply
12-24VDC
