RF Wireless Single Color/Dual Color Remote
Important: Read All Instructions Prior to Installation

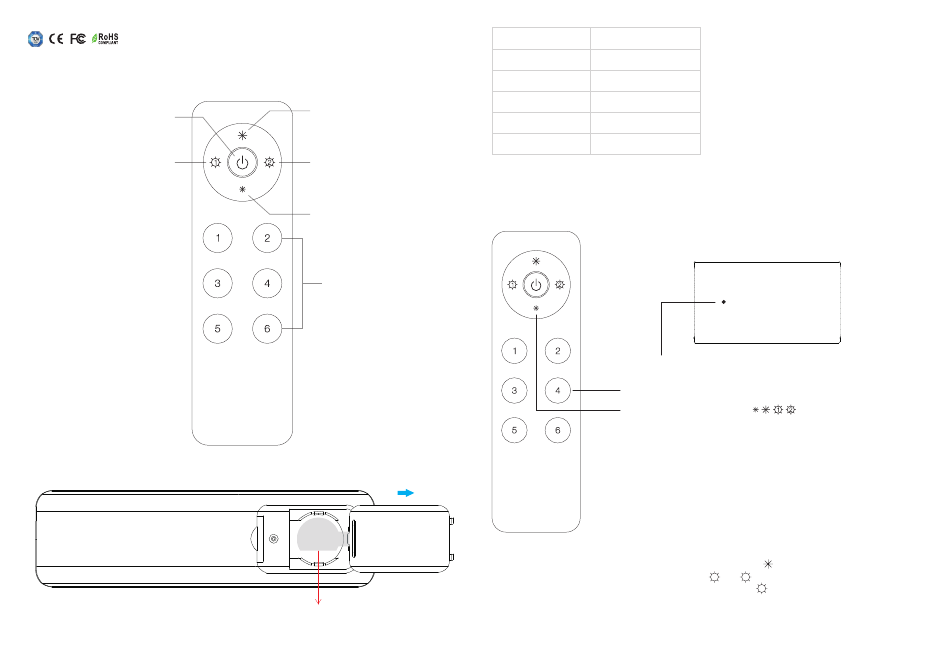

Function introduction
On/Off
Control the receiver's channel 1
and channel 3.
Press and hold down to adjust
warm white between 0%-100%
Only work with dual color,
it's useless for single color.
Note:Before the first use, please remove the protective film on the battery.
09.2803A.04459
Press and hold down to increase light
intensity smoothly
Control the receiver's channel 2
and channel 4.
Press and hold down to adjust
cool white between 0%-100%
Only work with dual color,
it's useless for single color.
Press and hold down to decrease light
intensity smoothly
6 zones control.
Click to choose the zone,
Press and hold down to turn
on/off the zone
Front side
Back side
Product Data
Output
RF signal
Operation Frequency
868/915/434MHz
Power Supply
3V(1xCR2025 battery)
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
136.3x38.9x10.7mm
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with RF receiver
Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 2:Click the "Learning Key" button on RF receiver to set it into pairing status
Step 3:Choose and click a zone number(e.g. zone 4)
Step 4:Click any of the four buttons
the RF receiver flicker once means the receiver is paired with zone 4 successfully.
Note: one receiver can be paired with max 8 remote controls.
Switch between single color mode or dual color mode:
Single color mode:
Choose a zone
(e.g. zone 4), press and hold down 4
then zone 4 was under single color mode. Under this model,
Dual color mode: Choose a zone(e.g. zone 4), press and hold down 4 &
then zone 4 was under dual color mode.
• Control 6 zones of receivers separately
• Single color/dual color controller
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
RF LED Receiver
Learning Key
, LED lights connected with
&
together about 5-10 seconds,
1
and
2
will not working.
1
together about 5-10 seconds,
