Sunricher SR-2819T Series Quick Manual

RF & WiFi RGBW Controller

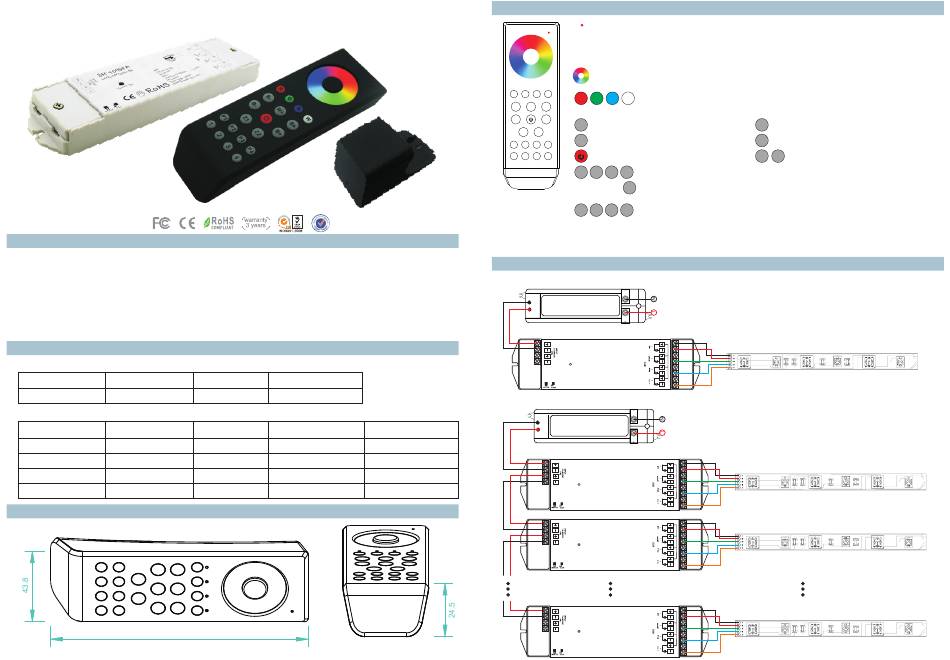

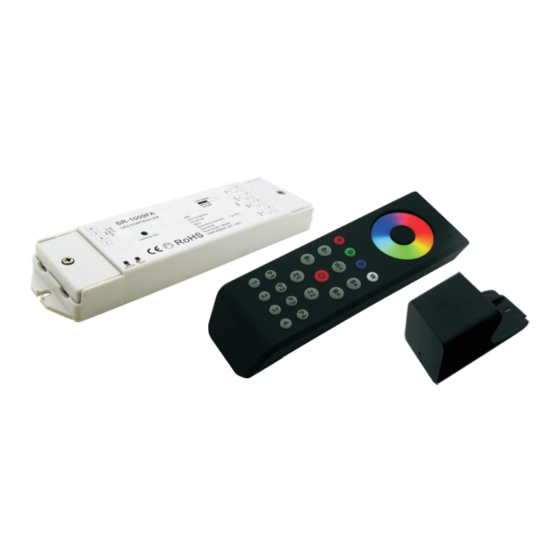

SR-2819T with SR-1009FA series

Product introduction

RF RGB(W) remote controller is a wireless color controlling system that consists of a sender
and a receiver or several receivers. By selecting switch status, you can set the system as RGB 3-channel
output, or RGBW 4-channel output. Using Easy RGB(W) remote controller, you can get whatever color you
want; you can choose any color from RGB(W) to adjust so as to mix more than 100 mi l l ion kinds of colors.
With built-in 10 kinds of color changing modes, you can easily switch color changing modes and adjust speed
and brightness. "Function Pause" enables RGBW LED to stay at your favorite color under the situation of color
changing modes, which operation is simple but functional.

Parameter

Remote
Operation Voltage
Part No.
SR-2819T 4.5VDC
Receiver
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC

Product Size

131.6
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 43.8x131.6x24.5
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA 4x(4.2-12.6)W Constant current
4x700mA 4x(8.4-25.2)W
Constant current

Brief introduction of buttons

R G B W
S- W+ S+
B- B+
Z1 Z2
P1 P2 P3 P4
1 2 3 4

Wiring diagram

1)Receiver Connection Diagram for Single Unit
Power Supply
12-36VDC
Learning Key
2) Receiver Connection Diagram for Multiple Units
Remarks
Learning Key
Learning Key
Learning Key
Working status indicator, the sender is in dormant status when the indicator is off. The
sender is under working when the indicator is flashing rapidly. If the indicator continues
flashing at the frequency of 1 second, it indicates that the sender batteries low and
needs to replace new batteries.
Touch wheel for selecting R/G/B colors
R G B W
Short press: switch on/off each channel;
Long press: dim up/down each channel
S- Speed down when color is changing
Brightness down
B-
Turn ON/OFF
P1 P2 P3 P4 Each button built-in 2 modes
Short press: RGB mixed white: CW,NW,WW in circle;
W+
Long press : switch OFF RGB channels
1 2 3 4
4 buttons for saving 4 colors or modes each zone. If you like a color or mode,
just long press any of the 4 buttons over 2seconds to save it. Short press to get
that saved color or mode.
110V-230VAC
SR-1009FA
LED CONTROLLER
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
S+ Speed up when color is changing
Brightness up
B+
2 zones
Z1 Z2
