Sunricher SR-1009XX User Manual

SR-2818&SR-1009XX full touch RGBW
remote controller User Manual
1.Brief introduction
SR-2818 RGBW remote controller is full touch remote
controller which has 8 different zones. It can get Red/ Green/
Blue/ White color directly. The remote controller can save up
to 8 colors or 8 modes into corresponding buttons (1-8
buttons) for each zone. You can choose any color through
color wheel. There is a USB port to charge internal battery.
2.Performance Parameter
2.1 Sender: (SR-2818)
Operation voltage: 3.6VDC
Operation frequency: 434MHZ / 868MHZ
Battery: Lithium battery.

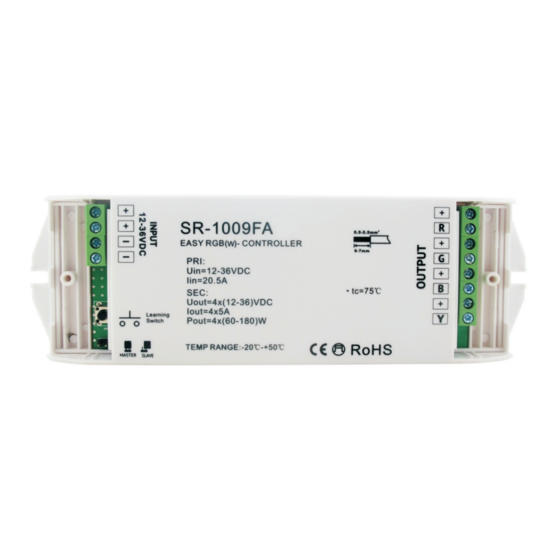

2.2 Receiver: (SR-1009FA/ SR-1009F3/ SR-1009F7))
Input voltage: 12-36VDC
Output voltage: 12-36VDC
SR-1009FA: 4 channels x 5A, 4channels x (60-180W)
SR-1009F3: 4 channels x 350mA, 4 channels x (4.2-12.6W)
SR-1006F7: 4 channels x 700mA, 4 channels x (8.4-25.2W).
Note: SR-2818 can also control WIFI receiver (SR-1009FAWi/ SR-1009F3Wi/ SR-1009F7Wi).
When WIFI receivers are not controlled by software, then you can use SR-2818 remote. The
operation will be the same.
1

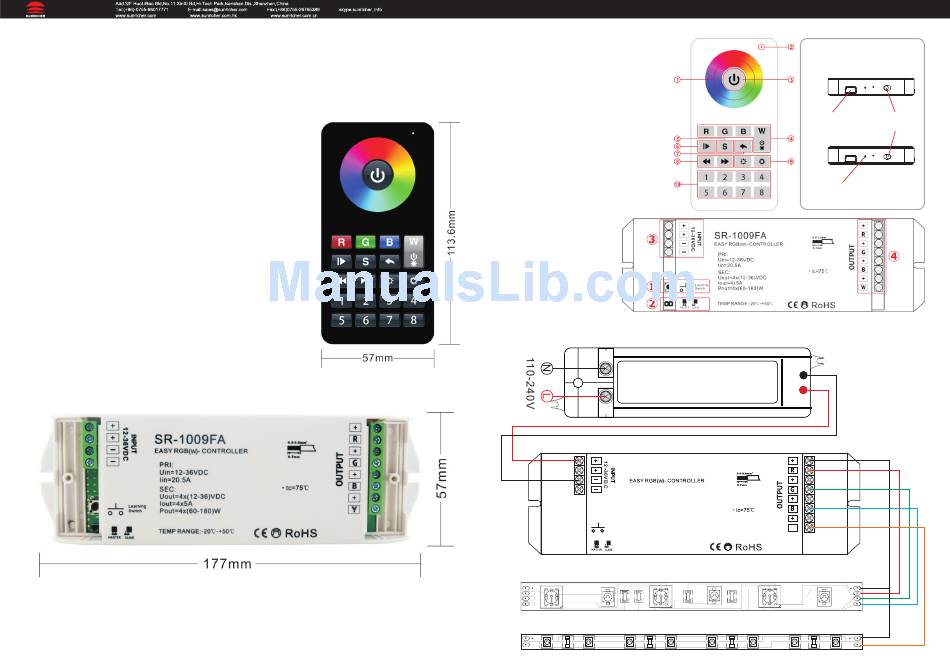

3.Brief introduction of buttons
①
Color wheel
②
Indicator
③
ON/OFF button
④
R/G/B/W button
⑤
Save color button
⑥
Play & Pause button
⑦
Return previous status button
⑧
Speed down & speed up button
⑨
Brightness button
⑩
Zone button
①
Learning button
②
Jumper
③
12-36VDC input
④
4 channels output
4.Wiring Diagram
Power Supply
Input 12-36VDC
SR-1009FAWi
PRI:
Uin=12-36VDC
Iin=20.5A
SEC:
Uout=4x(12-36)VDC
Iout=4x5A
Learning
Pout=4x(60-180)W
Switch
TEMP RANGE:-20℃-+50℃
R
G
B
W
Bottom
USB port OFF
ON
Indicator will be on while remote is charging.
Indicator will be off while it's full power.
W
R
G
B
W
2
