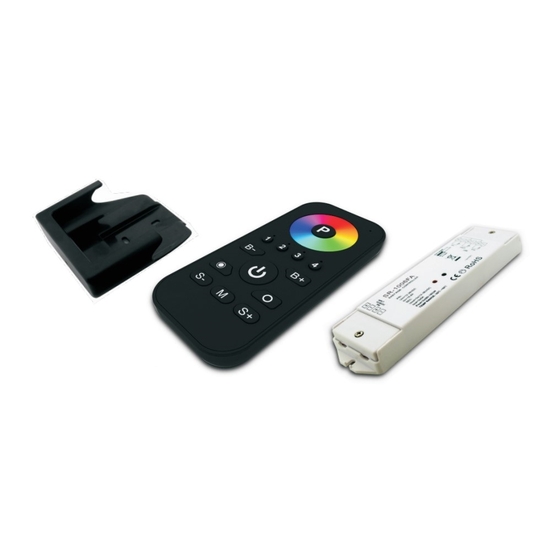

Sunricher SR-2810 Quick Start Manual

Programmable RGB Remote Led Controller
Model:SR-2810 with SR-1006 Series
Programmable
Control 4 zones
RGB Remote control
Parameter
Remote
Part No. Operation Voltage
SR-2810 4.5VDC
Receiver
Iuput Voltage
Part No.
SR-1006TA 12-36VDC
SR-1006FA 12-36VDC
SR-1006EA 12-36VDC
SR-1006FA3 12-36VDC
SR-1006FA7 12-36VDC
Product Size
120.0
Operation DIMENSIONS
Frequency ø/h (mm)
load 3pcs 7 AAA (1.5V)
434MHz/868MHz 55x120x17
Current Output
4x3A Constant voltage
4x(36-108)W
4x5A 4x(60-180)W
Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Brief introduction of buttons
1-4 zones
Short press: choose zone
Long press:switch on/off
Wiring diagram
1)Receiver Connection Diagram for Single Unit
Remarks
2) Receiver Connection Diagram for Multiple Units
batteries
Remarks
Constant current
Constant current
Programmable button
B B+
Brightness down
Primary color
S- M
S+
Speed down
Power Supply
110V-230VAC
12-36VDC
SR-1006FA
Power Supply Note:
110V-230VAC
12-36VDC
One receiver can work with 1-8pcs SR-2810
One SR-2810 control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1006FA
SR-1006FA
SR-1006FA
Indicator: indicate the state of
remote control
Color wheel
Brightness up
ON/OFF button
Saturation color temperature
change to white
Speed up
Mode
