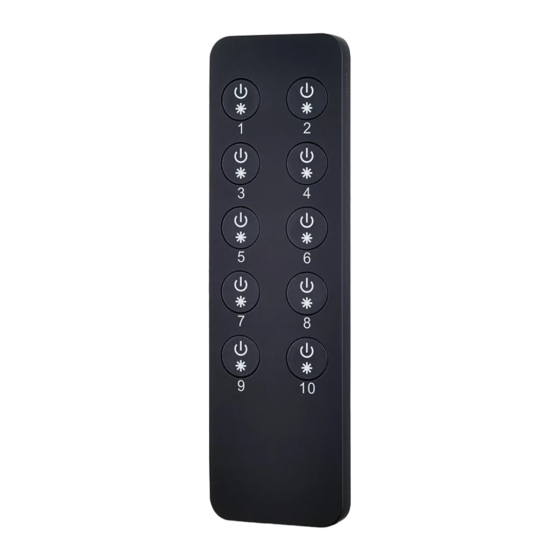

RF Single Color Remote Controller
Important: Read All Instructions Prior to Installation

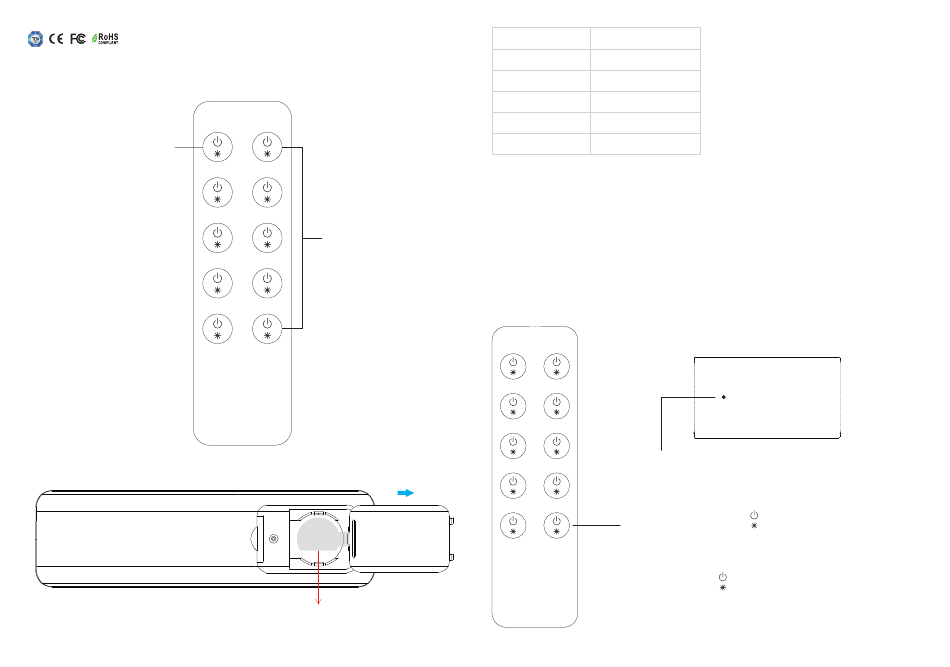

Function introduction
Click to turn on/off,
Press and hold down to increase/
decrease light intensity
Note:Before the first use, please remove the protective film on the battery.
1
2
3
4
Each button controls one zone of
receiver separately
5
6
7
8
9
10
Front side
Back side
Product Data
09.02802.04111
Output
Operation Frequency
Power Supply
Operating temperature
Relative humidity
Dimensions
• Control 10 zones of receivers separately
• Single color controller
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with RF receiver
1
2
3
4
5
6
7
8
9
10
RF signal
868/915/434MHz
3V(1xCR2025 battery)
0-40°C
8% to 80%
136.3x38.9x10.7mm
Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
RF LED Receiver
Learning Key
Step 2:Click the "Learning Key" button on RF receiver to set it into pairing status
Step 3:Choose one zone and click
of the zone(e.g. zone 10),
LED lights connected with the RF receiver flicker once means the receiver is
paired with zone 10 successfully.
,
After pairing
click or hold
of 1/2/3/4/5/6/7/8/9/10 to control each zone separately
Note: one receiver can be paired with max 8 remote controls.
