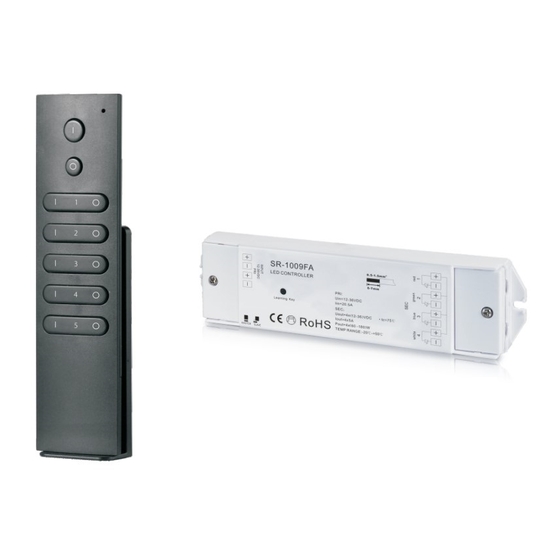

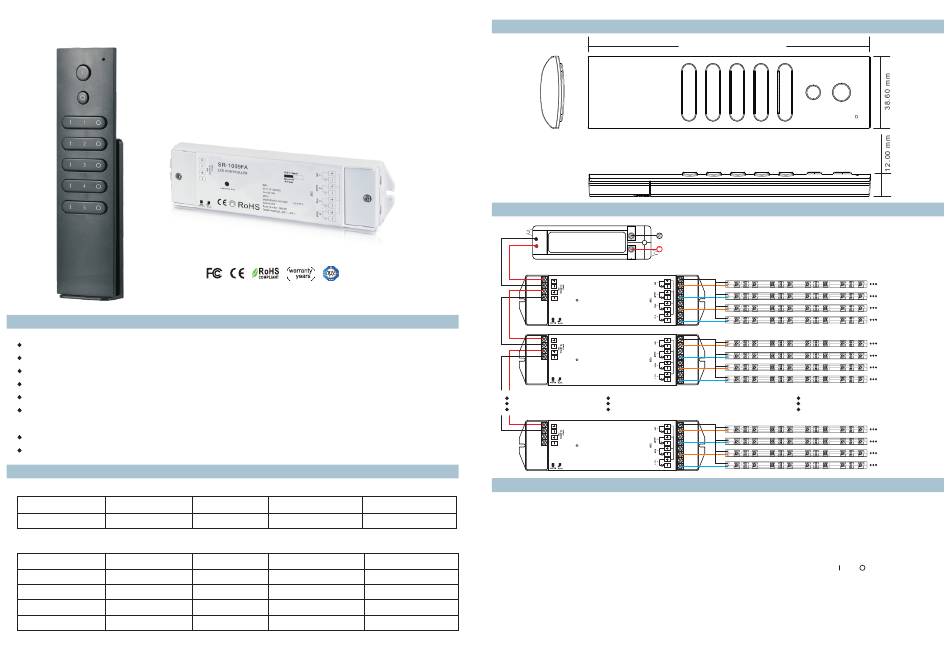

Sunricher SR-2833N-Z5 Quick Start Manual

RF Wireless LED Dimmer
Model:SR-2833N-Z5 with SR-1009FA series

Feature

Reliable stable switch and dimming control function,control range≥20M.
Battery in the remote is with long life span. It normally can use for 2 years.
Switch on/off of lightings slowly, without any flash, meet the comfort of human eyes.
Dimming range 0.1-100%.
Use with power repeater to expand the output power unlimitedly.
Enable to control 5 zones separately, And dim or ON/OFF 5 zones at same time ,each zone can be set endless
receivers, each receiver maximally be controlled by 8 different remotes.
Enable be dimmed and ON/OFF by push button after connecting receivers.
Receivers can work with RF-WIFI converter after installing software on IOS and Android system.

Parameter

Remote
Operation Voltage
Part No.
SR-2833N-Z5 3VDC
Receiver
Input Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
5

Operation

DIMENSIONS
REMARKS
Frequency
ø/h (mm)
916.635MHz 38.6x150x12 RF Wireless
Current Output
4x5A 4x(60-180)W Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Constant current
Product Size

Wiring diagram

Learning Key
Learning Key
Learning Key
Operation
After you have wired all the receivers according to Figure illustration you need to do the following:
1. Pull off the plastic film cover of the battery at the back of remote.
2. If you use multiple receivers, you have 2 choices:
Have all receivers in the same zone like Zone 1 for example or
Have each receiver in a different zone, like Zone 1, 2, 3 and so on
3. In order for each receiver to know what Zone it belongs to, you will need to "pair" it to the zone you wish to
Remarks
use: short press the Learning Key on the receiver, then immediately short press the
wish to use (for example ON/Off from zone 1). Once you do that, the LED lights will blink once. Now your remote
and receiver are paired!
4. Do the same for the other receivers if you use them.
This wireless receiver can work in any of the 5 zones. It has a special "Learning Key" that is in the unit that will
enable you to pair it to any of the 5 zones in the wireless remote control. You can add as many optional
receivers as you wish, to create up to 5 different control zones. Each zone can have an endless number of
receivers, which will let you escalate any installation from small to super-size.
150.00 mm
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
Single color LED Strip
or from the zone you
