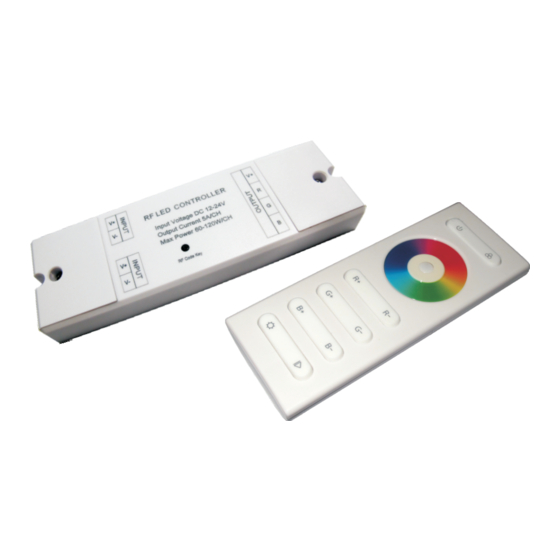

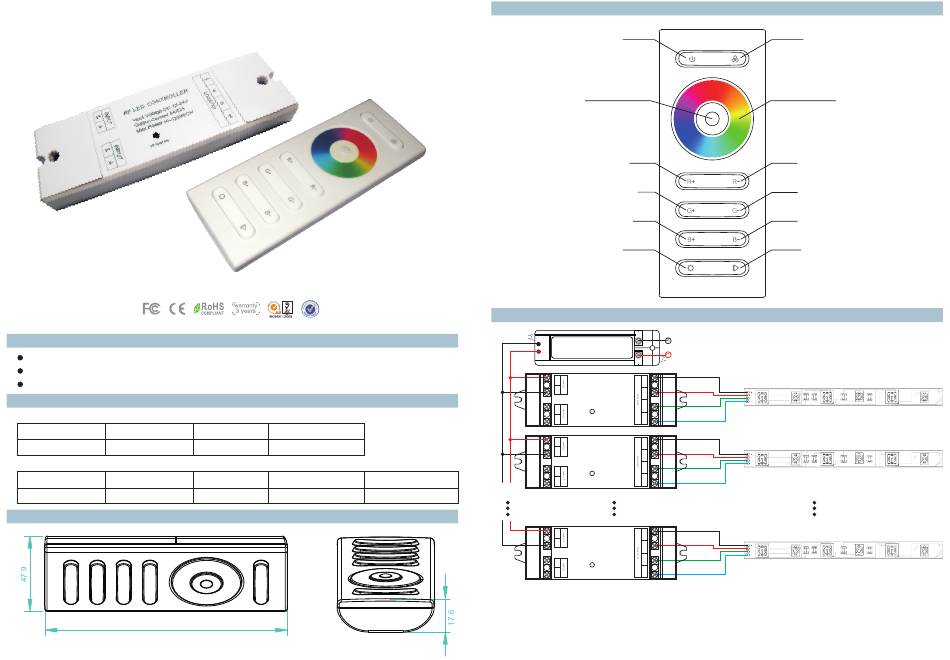

Sunricher SR-2839RGB-Set Quick Start Manual

RF wireless RGB remote controller

Feature

1 zone/area
Press-button RGB controller
Built-in 10 modes

Parameter

Remote
Operation Voltage
Part No.
Remote
4.5VDC
Receiver
Part No. Iuput Voltage
Receiver 12-24VDC

Product Size

120.0
Operation
Remarks
Frequency
434MHz/868MHz RF Wireless
Current Output
3x5A Constant voltage
3x(60-120)W

Description of buttons

Indicator
Short press: switch on red channel
long press: dim up
Short press: switch on green channel
long press: dim up
Short press: switch on blue channel
long press: dim up

Wiring diagram

V+
V-
V+
V-
V+
V-
V+
Remarks
V-
V+
V-
V+
V-
ON/OFF
Brightness
Power Supply
110V-230VAC
12-24VDC
V+
RGB LED RGB Controller
R
R-
G-
B-
G
Learning Key
B
V+
RGB LED RGB Controller
R
R-
G-
B-
G
Learning Key
B
V+
RGB LED RGB Controller
R
R-
G-
B-
G
Learning Key
B
For Warm white, Natural white,
Cool white changing.(Through the
three RGB color mixing)
Color wheel
Short press: switch off red channel
,
long press: dim down
Short press: switch off green channel ,
long press: dim down
Short press: switch off blue channel ,
long press: dim down
Play&pause button. There is 10 build-in
modes. Short press it will play , short
press again it will pause Long press
, .
it will speed up down
/ ..
