Sunricher SR-ZG2858A Manual

RGB CCT DIM 3 in 1 Zigbee Remote
Important: Read All Instructions Prior to Installation

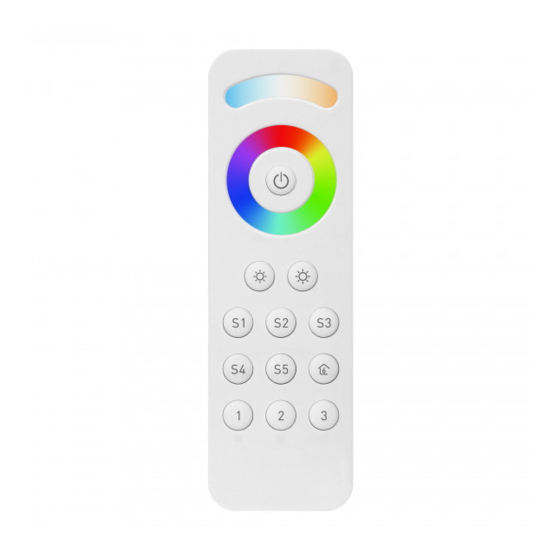

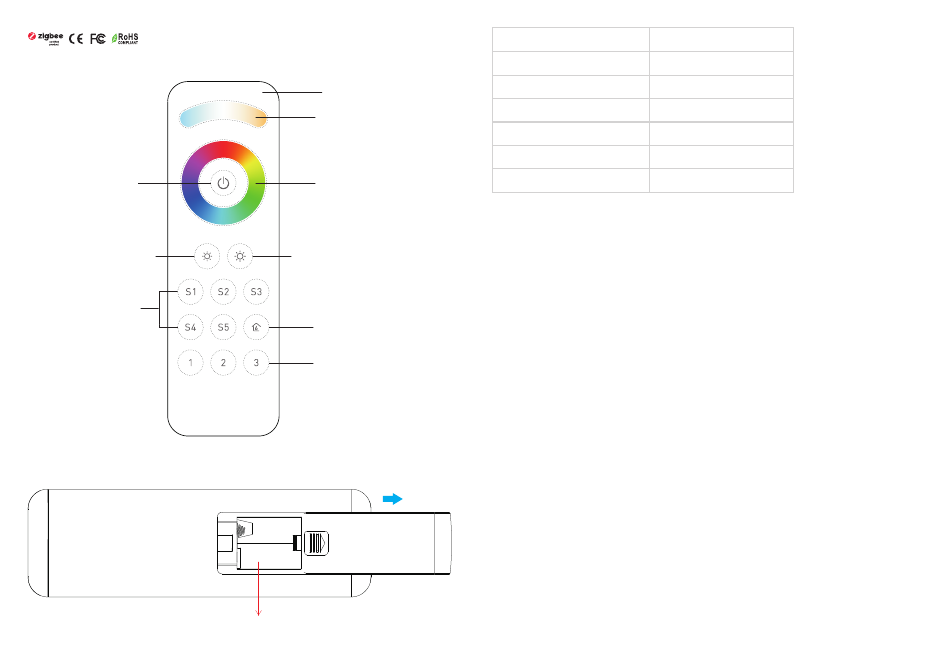

Function introduction
ON/OFF button
Press and hold down to decrease
light intensity
S1-S5, press and hold down to
save colors, click to recall the
saved colors
LED indicator
CCT Slider
RGB Color wheel
Press and hold down to increase
light intensity
Click to recall 6 preset
scenes one by one
Group numbers: Click to
choose the group
Front side
3V(2*AAA battery)
Bottom side
Product Data
70100038
Protocol
Operation Voltage
Transmission Frequency
Transmission Range (free field)
Dimming Range
Dimension
Protection Grade
• ZigBee RGB+CCT+DIM remote based on ZigBee 3.0
• High sensitive & high stable touch color wheel, fast & precise color control
• Battery powered remote with low power consumption
• Enables to pair ZigBee lighting devices through touchlink commissioning
• Supports find and bind mode to pair with ZigBee lighting devices
• Supports 3 groups for binding max. 30 lighting devices
• With 6 preset scenes, enables to save and recall 5 scenes
• 2.4 GHz global operation
• Transmission range up to 30m
• Compatible with universal ZigBee Gateway products
• Enables to bind and control universal DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices
ZigBee Clusters Supported by This Remote Are As Follows:
Input clusters:
• Power Configuration
• Basic
Output clusters:
• Identify • Group
• Scene
Safety & Warnings
• This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Operation
1.This ZigBee remote is a wireless transmitter that communicates with a variety of ZigBee compatible
systems. This transmitter sends wireless radio signals that are used to remotely control a compatible
system.
2.This ZigBee remote supports 3 groups for binding max. 30 lighting devices and enables to control
DIM, CCT, RGB, RGBW and RGB+CCT zigbee lighting devices .
ZigBee 3.0
3V(2*AAA battery)
2.4GHz
30m
0.1%-100%
140x44x17mm
IP20
• Identify • Diagnostics
• On/off • Level control • Ota • Color control
