Sunricher SR-2818 Manual

RF RGBW Remote Controller
Important: Read All Instructions Prior to Installation

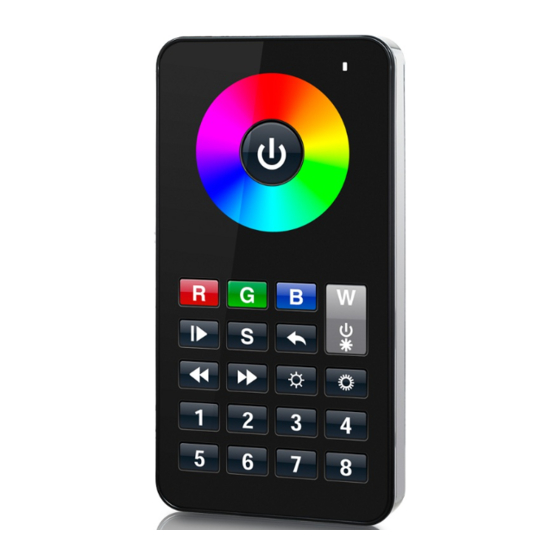

Function introduction

1 1 2 2 3 3 4 4
7 7 8 8
5 5 6 6
On
Off
USB port Power Switch
LED indicator
Indicator will be on while remote is charging.
Indicator will be off while it's full charged.
Note: if the remote control is not used for a long time,
please charge it every two months.
09.02818.04160
Click to switch ON/OFF
Red channel:Click to turn off/on, Press and
hold down to increase/decrease light intensity
Green channel:Click to turn off/on, Press and
hold down to increase/decrease light intensity
Blue channel:Click to turn off/on, Press and
hold down to increase/decrease light intensity
White channel:Click to turn off/on, Press and
hold down to increase/decrease light intensity
Play & pause the 10 built-in mode,
click to play or pause running mode
Return to previous status
Save color, press and hold down to save,
click to recall the saved
Speed down, press and hold down
to speed down the running mode
Speed up, press and hold down
to speed up the running mode
Brightness down, press and hold down
to decrease light intensity
Brightness up, press and hold down to
increase light intensity
1 1 2 2 3 3 4 4
8 zones, click to select a zone,
press and hold down to turn on/off
5 5 6 6 7 7 8 8 corresponding zone

Product Data

Output
RF signal
Operation Frequency
869.5/916.5/434MHz
3.7V(Lithium battery,
Power Supply
USB charging capability)
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
115.4x58.8x12mm
Safety & Warnings
• This device contains a button lithium battery that shall be stored and disposed properly.
• DO NOT expose the device to moisture.

Pair with RF receiver(Method 1)

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 2:Touch ON/OFF button to activate the remote
Step 3:Click the "Learning Key" button on RF receiver or re-power on the receiver
three times continuously to set it into pairing status
Step 5:Touch the color wheel, LED lights connected with the RF receiver flicker
once means the receiver is paired with zone 4 successfully.
1 1 2 2 3 3 4 4
Step 4:Choose and touch a zone number(e.g. zone 4)
5 5 6 6 7 7 8 8

Pair with RF receiver(Method 2)

Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 2:Touch ON/OFF button to activate the remote
Step 3:Power off and power on the receiver
3 3 4 4
1 1 2 2 Step 4:Choose and touch a zone number(e.g. zone 4) twice, then press and hold it
continuously and quickly within 10 seconds, LED lights connected with the RF receiver
7 7 8 8
5 5 6 6
flicker once means the receiver is paired with zone 4 successfully.
• Control 8 zones of receivers separately
• RGBW controller
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
RF LED Receiver
Learning Key
RF LED Receiver
Learning Key
