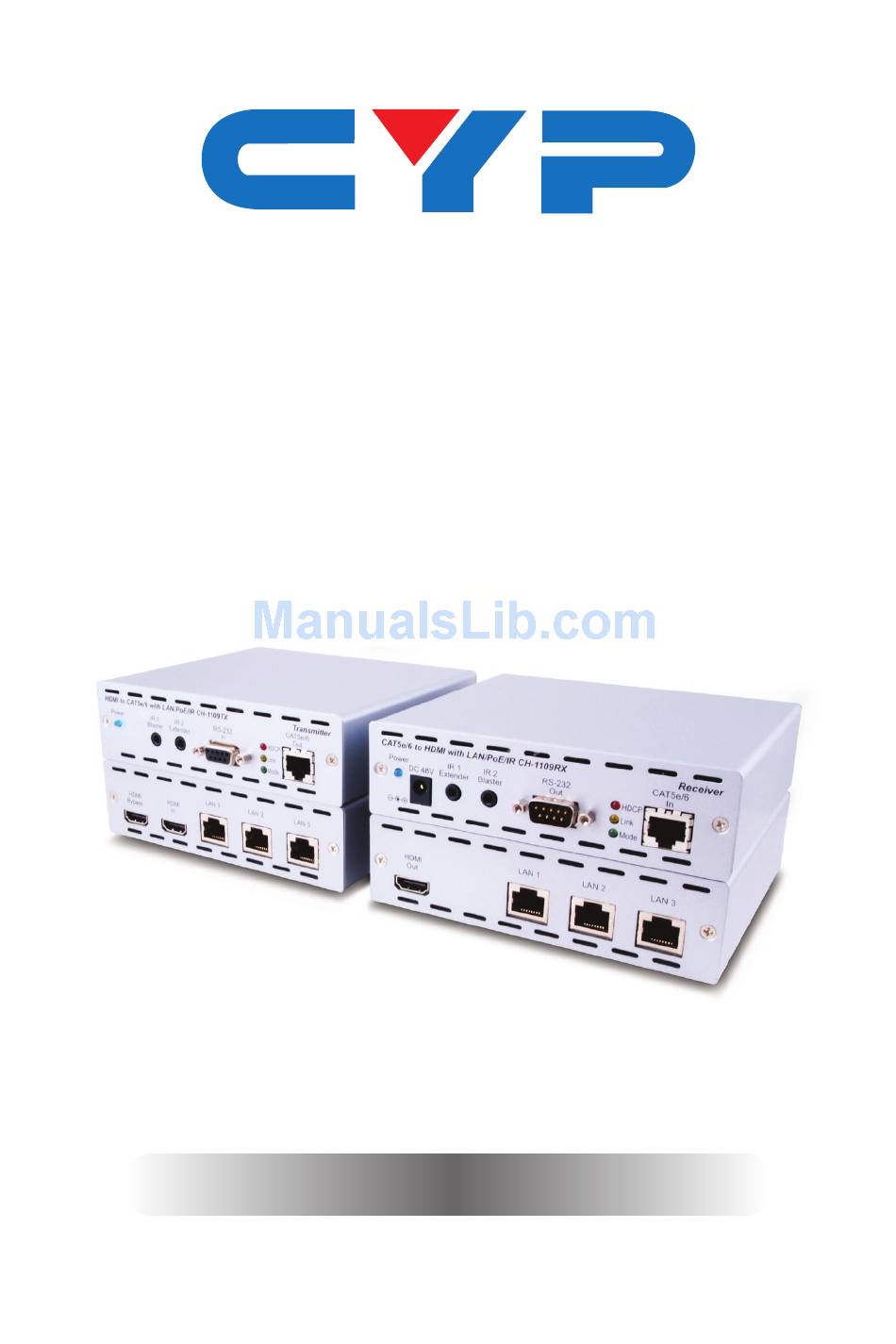

CH-1109TX & RX HDMI/IP over Single CAT5e/6 Extender Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 D-Sub 9 Pin Definitions .....5 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI and IP over Single CAT5e/6 Transmitter and Receiver set is capable of sending HDMI (uncompressed audio/video), 3 Ethernet connections and control signals (through the built-in RS-232 and IR ports) over a single CAT5e/6 cable up to a distance of 100 m (300 ft). The transmitter can be powered from the receiver via Power over Ethernet (PoE) and the HDMI bypass is designed to allow display of the source signal at the control point. -
Page 7: Features
5. FEATURES • Supports HDMI 3D signal and 4K×2K resolution • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single 100 m/328 ft • Uncompressed video 1080p/48-bit@60 Hz, 3D and 4K×2K • Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio transmission •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear HDMI to CAT5e/6 with LAN/PoE/IR CH-1109TX Transmitter LAN 1 LAN 2 LAN 3 CAT5e/6 Power IR 1 IR 2 RS-232 HDMI HDMI Blaster Extender HDCP Bypass Link... -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear CAT5e/6 to HDMI with LAN/PoE/IR CH-1109RX Receiver LAN 1 LAN 2 LAN 3 CAT5e/6 Power IR 1 IR 2 RS-232 HDMI DC 48V Extender Blaster HDCP Link Mode Power LED: The LED will illuminate in red when the 48 V DC power supply is connected to the AC outlet. -
Page 10: D-Sub 9 Pin Definitions
6.3 D-Sub 9 Pin Definitions DEFINE TX / RX TxD / RxD RxD / TxD... -
Page 11: Connection Diagram
HDMI Media Server RS-232 LAN 1 LAN 2 LAN 3 HDMI HDMI Bypass Transmitter RS-232 Controlled Device HDMI to CAT5e/6 with LAN/PoE/IR CH-1109TX Transmitter CAT5e/6 Power IR 1 IR 2 RS-232 Blaster Extender HDCP Link Mode Single CAT5e/6 Cable RS-232... -
Page 12: Specifications
8. SPECIFICATIONS Transmitter Input 1×HDMI , 1×HDMI Bypass, 3×Ethernet, 1×RS-232, 1×IR Extender, 1×IR Blaster Output 1×CAT5e/6 Receiver Input 1×CAT5e/6 Output 1×HDMI, 1×RS-232, 3×Ethernet, 1×IR Extender, 1×IR Blaster ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 48 V/1.35 A DC (US/EU Standards, CE/FCC/ UL certified) -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
