Summary of Contents for CYP CH-1106TX & RX

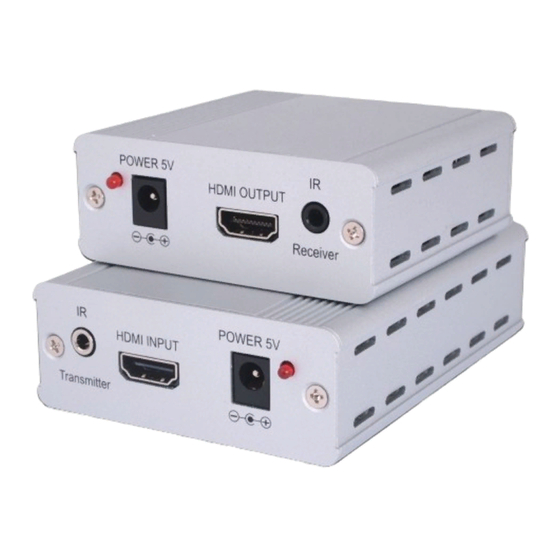

- Page 1 CH-1106TX & RX HDMI over Dual CAT6 Extender with IR Operation Manual CH-1106TX & RX...
- Page 3 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… Pin Assignment ......……………..…..…..…... IR Cable Pin Assignment ............RJ-45 Pin Definitions ..............Connection and Installation ….…………………..…..…..….. -
Page 6: Introduction
1. Introduction The HDMI over Dual CAT6 Extender is the ideal device to send your HDMI signals over long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can replace HDMI cables while performing the same functions like transferring Deep Color (12 bits/color) video and lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio. -
Page 7: Features
5. Features HDMI, HDCP 1.1 and DVI 1.0 compliant. Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio . Supports CAT6 cables for data/DDC transmission ... -
Page 8: Specifications
6. Specifications Transmitter 1 x HDMI 1 x IR Blaster 1 x CAT6 Output for Video 1 x CAT6 Output for DDC Receiver 1 x HDMI 1 x IR Receiver 1 x CAT6 Input for Video, 1 x CAT6 Input for DDC HDMI Input Cable 1080p 8-bit (15M), 12-bit (15M) HDMI Output Cable... -
Page 9: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Transmitter Front and Rear Panels POWER 5V HDMI INPUT Transmitter VIDEO CAT6 OUTPUT ① ② ③ ④ ⑤ ① IR Transmitter: This slot is where you connect the IR blaster cable. Place the IR eye in front of the source equipment(s) in order to send an IR signal, the IR blaster has a frequency range from 30KHz to 50KHz. -
Page 10: Rear Panel
7.2 Receiver Front and Rear Panels POWER 5V HDMI OUTPUT Receiver VIDEO CAT6 INPUT ① ② ④ ⑤ ① Video INPUT: Connect to the Video Input of the transmitter with a CAT6 cable. ② DDC INPUT: Connect to the DDC Input of the transmitter with a CAT6 cable. -
Page 11: Pin Assignment
8. Pin Assignment 8.1 IR Cable Pin Assignment IR Blaster IR Receiver ① Power 5V ① IR signal ② IR Blaster Signal ② Power 5V ③ NC ③ Grounding ① ② ③ ① ② ③ 8.2 RJ-45 Pin Definition Video TMDS2+ TMDS2- TMDS1+... - Page 13 60°...
-
Page 14: Acronyms
Acronyms Acronym Complete Term CAT6 Category 6 Cable Display Data Channel Electrostatic Discharge Ground HDCP High-Bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20091105 MPM-CH1106TXRX...
