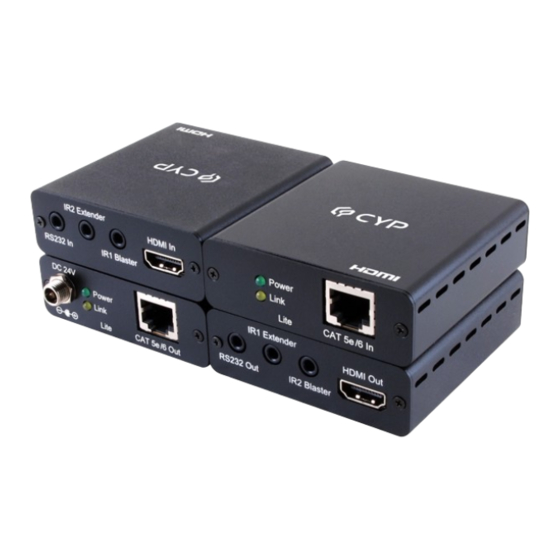

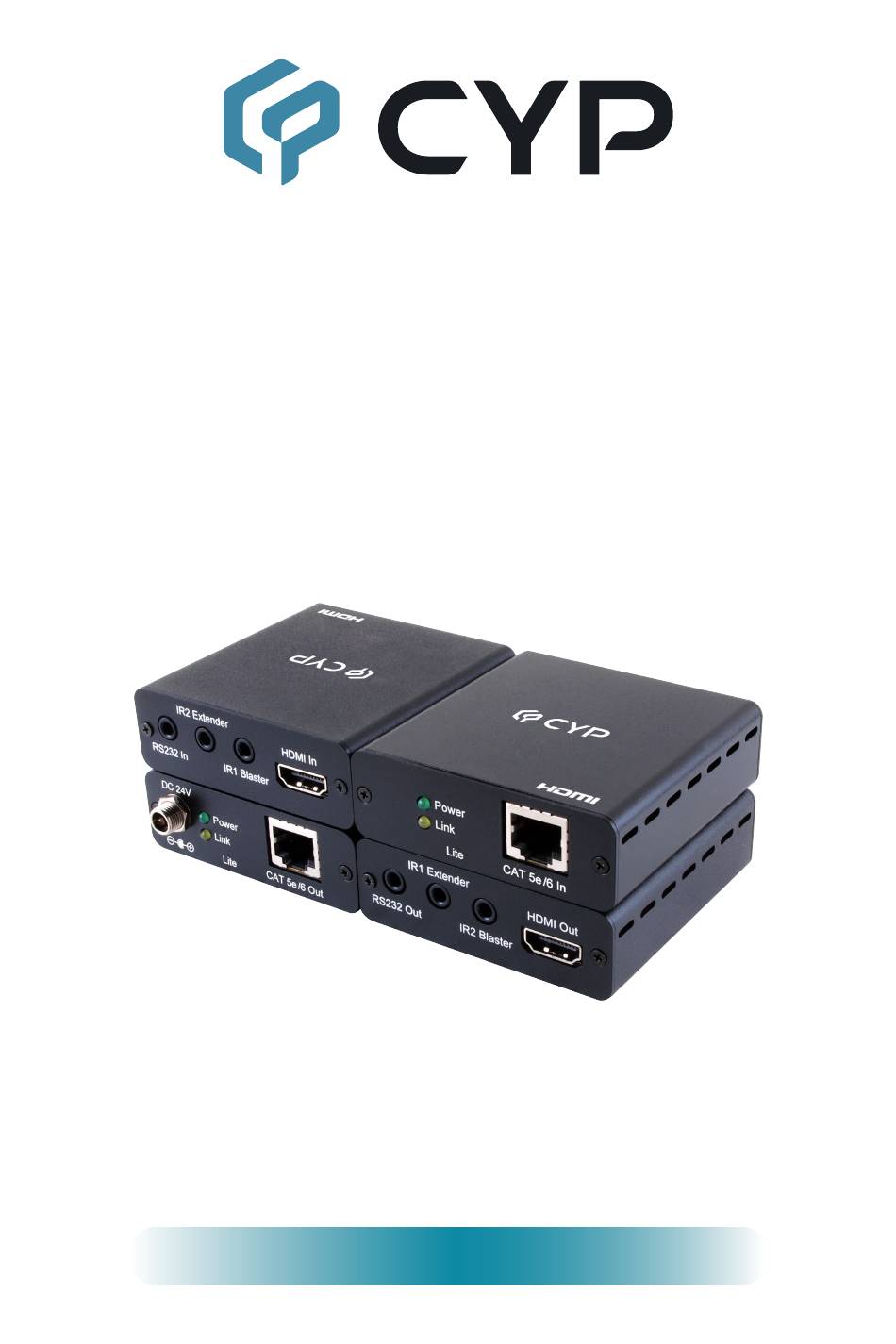

- Page 1 CH-506TXPL & RXPL HDMI to CAT5e/6 Extender Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..... 4 6.3 IR Pin Assignment ........ -
Page 6: Introduction
1. INTRODUCTION The HDBaseT HDMI over single CAT5e/6 with bidirectional IR, RS-232 & PoC Transmitter and Receiver set can make your home or offi ce set-up more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 70 meters at 1080p or 40 meters at 4K. -
Page 7: Features
5. FEATURES • HDMI 1.x and DVI 1.0 compliant • HDCP compliant • Supports HDMI 3D and 4K x 2K features • Supports HDCP repeater and CEC bypass • Supports distance up to 70m/229ft at 1080p and 40m/131ft at 4K through CAT5e/6/7 cable •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 24V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster Lite CAT 5e /6 Out DC 24V Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster Lite CAT 5e /6 In Power LED This LED will illuminate when the device is connected from the Transmitter with power supply. LINK LED This LED will illuminate when the devices are connected with a CAT5e/6 cable from the Transmitter side. -
Page 10: Ir Pin Assignment
HDMI Out Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. 6.3 IR Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding... -
Page 11: D-Sub 9 Pin Defi Nitions
6.4 D-Sub 9 Pin Defi nitions DEFINE TX / RX TxD/RxD RxD/TxD... -
Page 12: Connection And Installation
7. CONNECTION AND INSTALLATION DVD or Blu-ray Player RS-232 HDMI RS-232 Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° Power IR Extender Supply IR2 Extender HDMI In RS232 In IR1 Blaster DC 24V Power Link Lite CAT 5e /6 Out Single CAT5e/6/7 Cable... -
Page 13: Specifications
8. SPECIFICATIONS HDMI Bandwidth 10.2Gbps HDBaseT Bandwidth 10.2Gbps Transmitter Input Ports 1×HDMI, 1×IR Extender, 1×RS-232 Output Ports 1×CAT5e/6/7, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×RS-232, 1×IR Blaster IR Frequency 30 - 50kHz (30 - 60kHz under ideal conditions) Baud Rate up to 115200/sec Power Supply... -
Page 14: Cat5E/6/7 Cable Specifi Cation
8.1 CAT5e/6/7 Cable Specifi cation 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output Ethernet Cable Cat.5e/6 Cat.6a/7 • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
