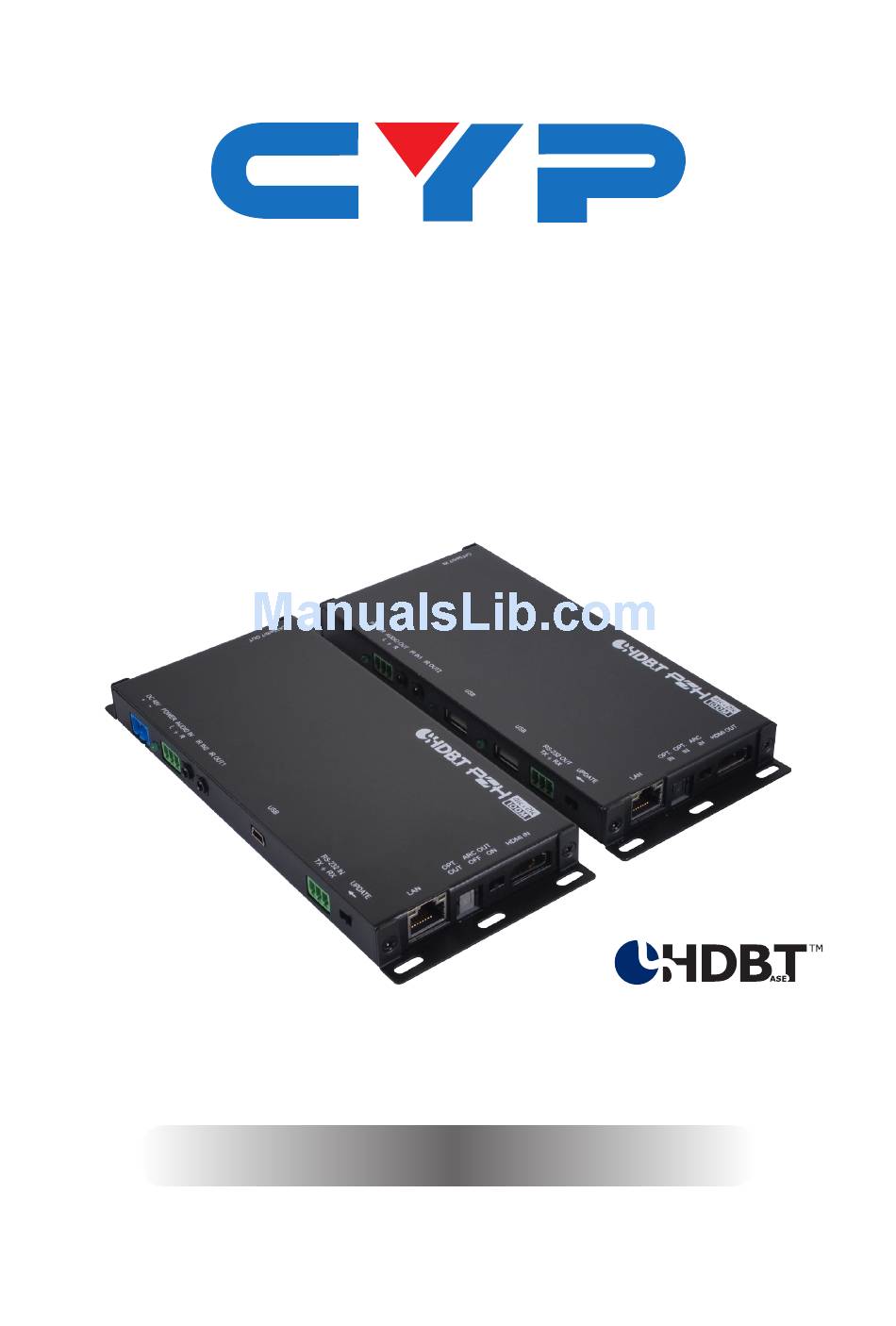

Page 1: Operation Manual

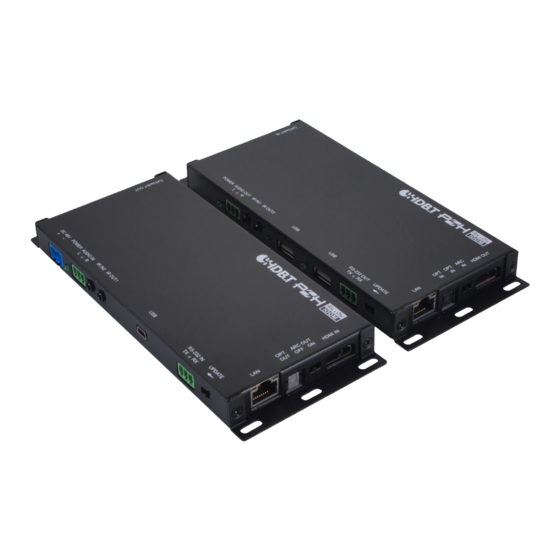

CH-1602TX & CH-1602RX HDMI/Audio over CAT5e/6/7 Extender with 48V PoE Operation Manual Operation Manual... - Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front Panel ....3 6.2 Transmitter Left and Right Panels ...4 6.3 Receiver Front Panel ......5 6.4 Receiver Left and Right Panels ..6 6.5 IR Cable Pin Assignments ....7... -
Page 5: Introduction
1. INTRODUCTION This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS Input source equipment such as DVD/Blu-ray player, host PC/Laptop and HDMI equipped output display (TV or monitor) with amplifier or active speakers. 5. FEATURES • Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Panel DC 48V POWER AUDIO IN IR IN2 IR OUT1 RS-232 IN UPDATE − DC 48V and POWER LED: Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet and the LED will illuminate. -
Page 8: Transmitter Left And Right Panels
6.2 Transmitter Left and Right Panels Left Right OPT. ARC OUT CAT5e/6/7 OUT OFF ON HDMI IN CAT5e/6/7 OUT: Connect to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals. Under proper connection the green LED will illuminate to indicate PoE activated. The yellow LED will illuminate to indicate successful connection between Transmitter and Receiver, when it blink irregularly it represent the link error or when not illuminate it means no link with... -
Page 9: Receiver Front Panel
6.3 Receiver Front Panel POWER AUDIO OUT IR IN1 IR OUT2 RS-232 OUT UPDATE POWER LED: This LED will illuminate when device is connected with USB power supply. AUDIO OUT L/R: Connect to speaker with RCA input for audio signal output. IR IN 1: Connect to the supplied IR Extender cable for IR signal reception. -
Page 10: Receiver Left And Right Panels
6.4 Receiver Left and Right Panels Left Right OPT. OPT. CAT5e/6/7 IN HDMI OUT CAT5e/6/7 IN: Connect to the Transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals. The yellow LED will illuminate to represent the link from Receiver is steady, when it blink irregularly it represent the link error or when not illuminate it means no link with Receiver. -
Page 11: Ir Cable Pin Assignments
6.5 IR Cable Pin Assignments IR Blaster Power IR Signal IR Extender IR Signal Power Grounding... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM DVD/Blu-ray Player IR Extender Internet Connected IR Blaster HDMI Router Input 1.5m 60° Amplifier 60° Optical Digital Output RS-232 Active Speakers RS-232 Equipped PC/Notebook Power CAT5e/6/7 OUT Supply Analog Stereo CAT5e/6/7 Output Analog Cable Stereo Output Active Speakers OPT. -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 340 MHz/10.2 Gbps Transmitter Input Ports 1×HDMI, 1×USB, 1×L/R (Terminal Block), 1×LAN,1×IR Extender, 1×RS-232 (Terminal Block) Output Ports 1×CAT5e/6/7, 1×Optical, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×Optical, 1×IR Extender Output Ports 1×HDMI, 2×USB, 1×L/R (Terminal Block), 1×LAN, 1×IR Blaster,1×RS-232 (Terminal Block) IR Frequency... -
Page 14: Cat5E/6/7 Cable Specification
8.1 CAT5e/6/7 Cable Specification Cable Pixel clock Video Data Supported Range Type rate Rate Video CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, (HD Video) 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 15 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
