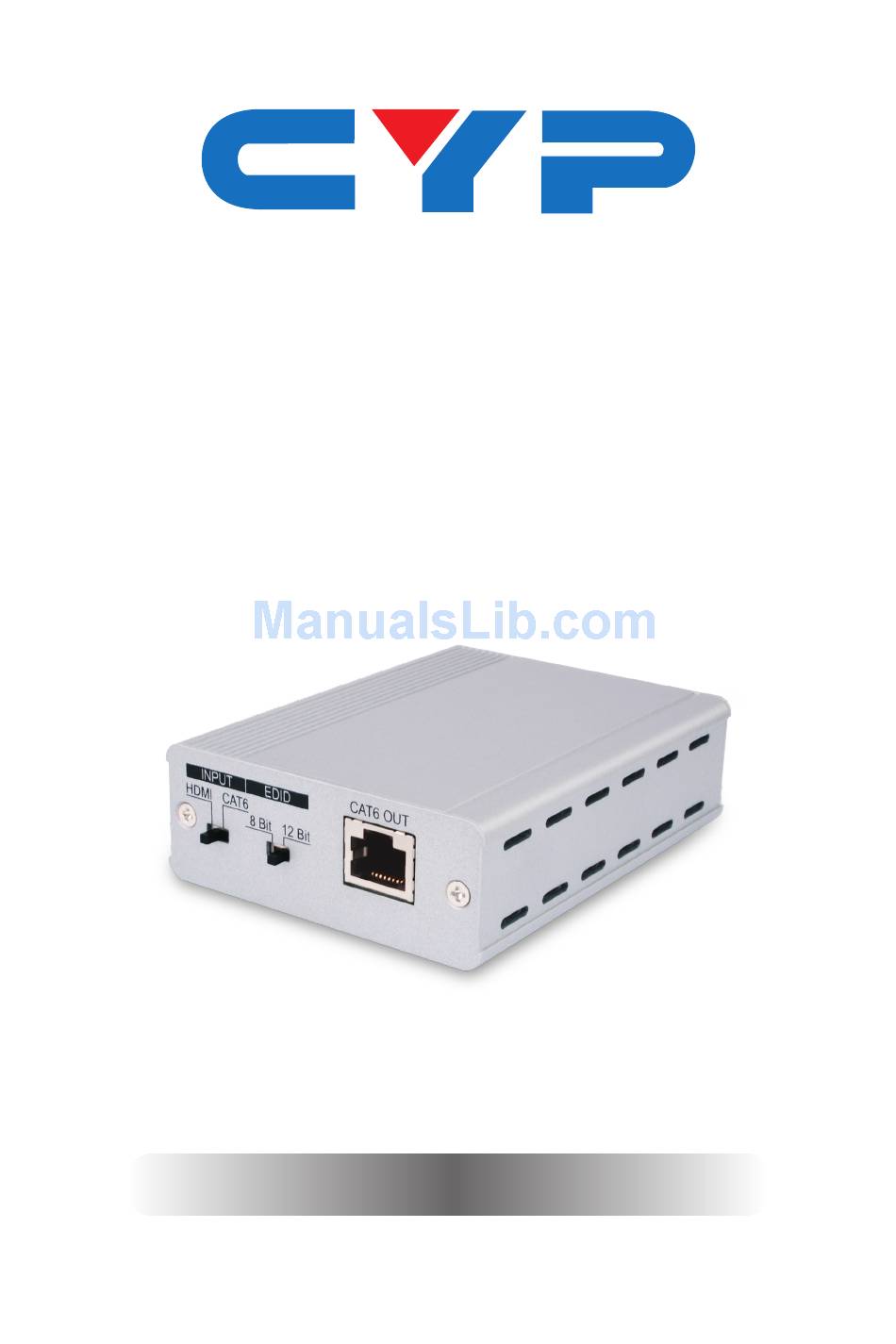

Page 1: Operation Manual
CH-1107EX HDMI/CAT6 to Single CAT6 Extender Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ...........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION The HDMI/CAT6 to Single CAT6 Extender is an advanced solution for HDMI and CAT6 signal distribution. It can be used to extend the distance between a compatible transmitter and receiver or used directly with an HDMI source. The CAT6 output can be easily connected to a compatible Single CAT6 to HDMI Receiver to allow a stable connection between an HDMI source and any compatible HDMI display. -
Page 7: Features
5. FEATURES • HDCP 1.1 and DVI 1.0 compliant • HDMI with Deep Color video up to 12-bit, 1080p@24/60 Hz • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32 to 192 kHz Fs sampling rate) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT6 OUT INPUT EDID HDMI CAT6 8 Bit 12 Bit HDMI/CAT6 INPUT Switch: Allows users to select either HDMI or CAT6 as the input source. 8/12-bit EDID Switch: Allows users to change the output display’s EDID between 8-bit or 12-bit resolution. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Option 1 Option 2 Option 3 DVD or Blu-ray Player DVD or Blu-ray Player DVD or Blu-ray Player HDMI HDMI Input Input HDMI DC 5V HDMI INPUT Input POWER SYNC-RED CAT6 OUT CAT6 OUT CAT6 OUT 3D-ORG HDMI IN CAT6 OUT DC 5V... -
Page 10: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 2.25 MHz/6.75 Gbps Input Ports 1×HDMI (Female connector), 1×RJ45 Output Port 1×RJ45 EDID Setting HDMI Resolutions 480i~1080p@50/60, 1080p@24 & VGA~WUXGA (RB) HDMI Cable Distance 15m@1080p/8-bit or 12-bit CAT6 Cable Distance 45m@1080p/8-bit or 10m@1080p/12-bit ESD Protection Human body model: ±8 kV (air-gap discharge) -
Page 11: Compatible Products
8.2 Compatible Products (Single CAT6) The models listed below are compatible with each other: • CLUX-8MCAT • CH-107TX • CH-107RXN • CH-1107TX • CH-1107EX 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable Digital Visual Interface... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
