CYP CH-514RXL Operating Instructions Manual

Hdbaset lite hdmi over single cat5e/6/7 extender
Hide thumbs Also See for CH-514RXL:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
CH-514TXL/RXL
HDBaseT
Lite HDMI over Single CAT5e/6/7 Extender
TM

Operation Manual

Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-514RXL and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CH-514RXL

Summary of Contents for CYP CH-514RXL

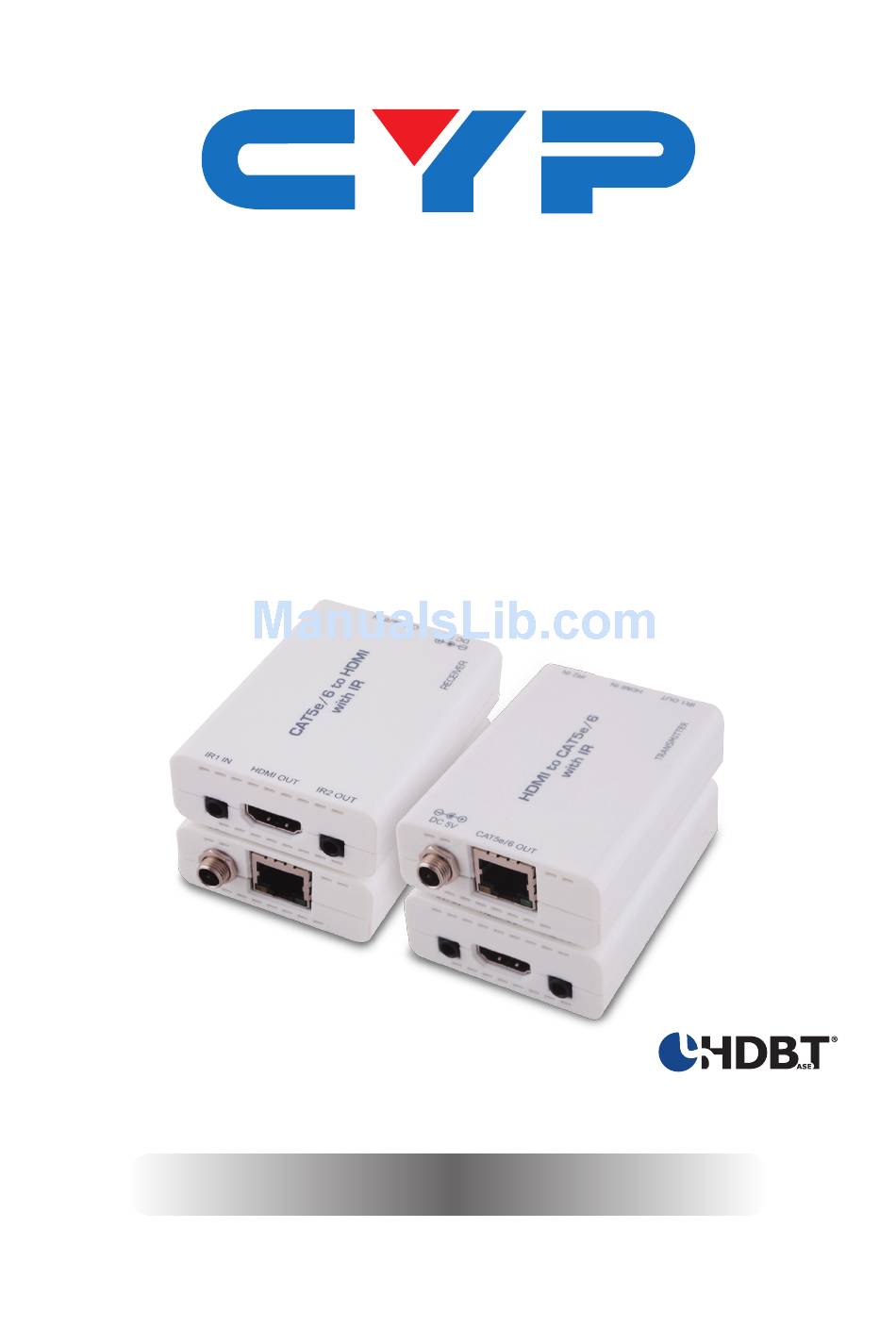

  • Page 1: Operation Manual

    CH-514TXL/RXL HDBaseT Lite HDMI over Single CAT5e/6/7 Extender Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 Transmitter and Receiver Top Panels ..

  • Page 6: Introduction

    1. INTRODUCTION The HDBaseT™ Lite HDMI over Single CAT5e/6/7 Extender incorporating 2-way IR signal transfer allows for a more efficient system setup and is easy to install. Uncompressed video and audio can be transmitted to distances of up to 60 meters (1080p) or up to 35 meters (4K×2K) and supports High Definition Audio and 3D signals.

  • Page 7: Features

    5. FEATURES • HDMI including 3D and 4K×2K (Ultra HD) support, HDCP and DVI compliant • Supports HDCP repeater and CEC bypass • Supports HDBaseT Lite Technology including 2-Way IR and RS-232 • Supports transmission distance of up to 60 meters through CAT5e/6/7 cable (1080p or 3D) or 35 meters (4K×2K) •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels DC 5V CAT5e/6 OUT IR1 OUT HDMI IN IR2 IN IR1 OUT: Connect to the supplied IR blaster for IR signal transmission to the source equipment. Place the IR blaster in direct line-of-sight of the equipment to be controlled.

  • Page 9: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels IR1 IN HDMI OUT IR2 OUT DC 5V CAT5e/6 IN IR1 IN: Connect the supplied IR extender cable for IR signal reception and transmission to IR1 OUT on the transmitter unit. Ensure that the remote control being used is within the direct line- of-sight of the IR extender.

  • Page 10: Transmitter And Receiver Top Panels

    6.3 Transmitter and Receiver Top Panels CAT5e/6 to HDMI HDMI to CAT5e/6 with IR with IR TRANSMITTER RECEIVER LINK LED This LED will illuminate in blue when the devices are connected with a CAT5e/6 cable. If the data transmission has an error the LED will blink.

  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM Example 1: Direct Connection Blu-ray Player 1.5m HDMI Input 60° 60° IR Blaster IR Extender Power Supply CAT5e/6/7 Power (60m) Supply IR Extender IR Blaster HDMI Output 60° 1.5m 60° HD Monitor...
  • Page 12 Example 2: Using a Repeater to Extend the Operating Distance Blu-ray Player 1.5m 60° HDMI 60° Input IR Blaster IR Extender Power Supply Power CAT5e/6/7 Supply (Up to 60m @ 1080p) Front Optional DC 24V POWER MODE LINK HDBaseT Lite CAT5e/6 IN Rear Repeater...

  • Page 13: Specifications

    8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Transmitter Input 1×HDMI, 1×IR Extender Output 1×CAT5e/6/7, 1×IR Blaster Receiver Input 1×CAT5e/6/7, 1×IR Extender Output 1×HDMI, 1×IR Blaster ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) Dimensions...

  • Page 14: Acronyms

    CAT5e/6/7 Cable Specification: LENGTH BANDWIDTH DATA RATE SUPPORTED VIDEO HD Video Up to Up to Up to 60 m 225 MHz 5.3 Gbps Up to 1080p@60 Hz/36-bit, 3D (data rate lower than 5.3 Gbps or bandwidth below 225 MHz). Ultra HD Video Up to Greater Greater...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH514TXLRXL...
