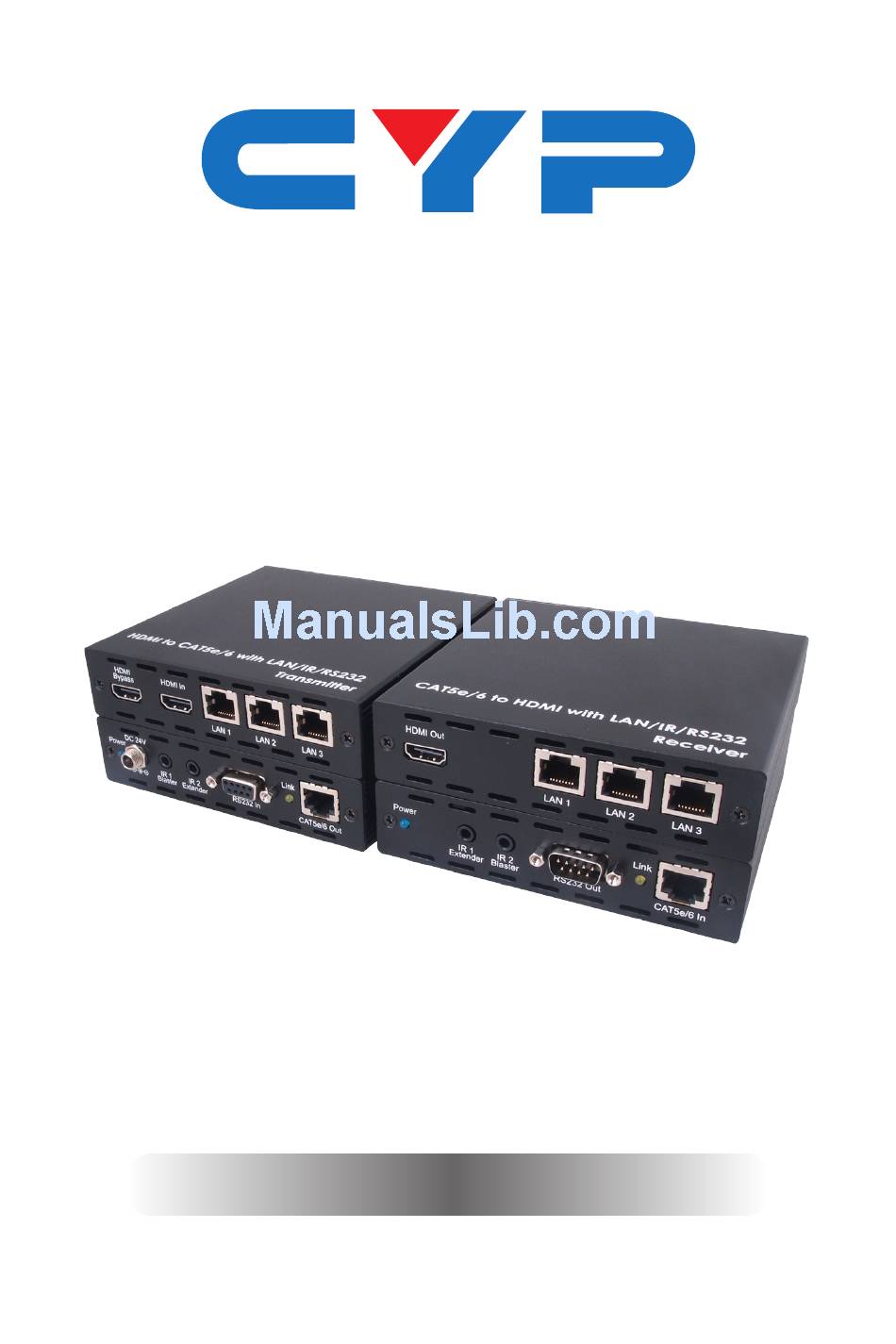

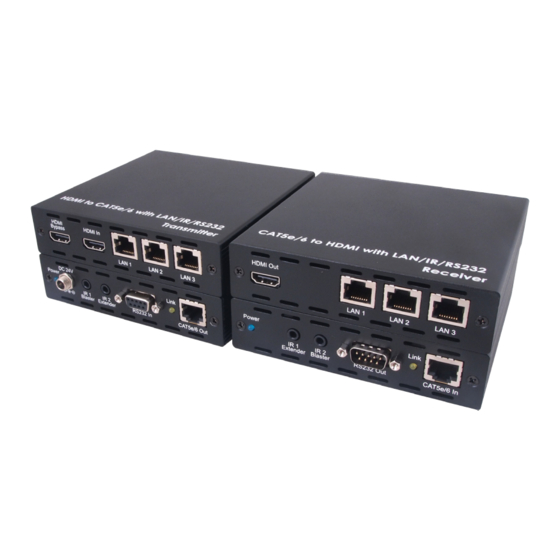

- Page 1 CH-1109TXC & RXC HDMI to CAT5e/CAT6 with LAN/PoE/& IR Extender Operations Manual Operations Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........6 2. Applications ..........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ............ 7 6. Operation Controls and Functions ..8 6.1 Transmitter ...........8 6.2 Receiver ..........10 6.3 D-Sub 9 Pin Definitions .....12 7. -
Page 6: Introduction
1. INTRODUCTION The device that can make your home or office more efficient, the CH- 1109TXC & RXC is capable of sending HDMI (uncompressed audio/ video), 3 Ethernet connections and control (through the built-in RS-232 and IR ports) over a single CAT5e/CAT6 up to a distance of 100m (300 ft.). -
Page 7: Features
5. FEATURES • HDMI 1.4 compliant with 3D formats and 4k/2k resolution support • Supports CEC bypass function • Simultaneous transmission of uncompressed video and audio (1080p@60Hz/'Deep Color) over a single CAT5e/CAT6 type cable for up to 100 m (300 ft.). NOTE: Tested with CAT-6E/23AWG cables, using cables of another specification may result in a different operating distance. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front Rear DC 24V HDMI HDMI In Power Link Bypass IR 1 IR 2 Blaster Extender RS232 In CAT5e/6 Out LAN 1 LAN 2 LAN 3 Power LED The red LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. - Page 9 NOTE: When the HDMI bypass is connected, no signals will be transmitted to the receiver side. Therefore, unplug this connection after confirming that the correct image is displayed HDMI In Connect to the HDMI equipped source equipment such as DVD or Blu-ray player.
-
Page 10: Receiver
6.2 Receiver Front Rear HDMI Out Power Link IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In LAN 1 LAN 2 LAN 3 Power LED The red LED will illuminate when the 24 V DC Adaptor is connected to the AC outlet. IR 1 Extender These slots are to connect with the IR receiver cables included in the package for IR signal reception. -
Page 11: D-Sub 9 Pin Definitions
6.3 D-Sub 9 Pin Definitions Define TX/RX TxD / RxD RxD / TxD... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM PC with RS232 Control Blu-ray/DVD Player Modem/Router HDMI HDMI In Bypass Media Server LAN 1 LAN 2 LAN 3 DC 24V Power Link Transmitter IR 1 IR 2 Blaster Extender RS232 In CAT5e/6 Out Single CAT5e/6 Cable RS232 Controlled Device Receiver... -
Page 13: Specifications
8. SPECIFICATIONS Maximum Data Rate 10.2 Gbps Resolution Range Deep Color Ethernet Speed 100 Mbps Transmitter Input 1 × HDMI , 3 × Ethernet, 1 × RS-232, 1 × IR Extender Output 1 × CAT5e/6, 1 × HDMI Bypass, 1 × IR Blaster Receiver Input 1 ×... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT6 Category 6 Cable HDMI High Definition Multimedia Interface... - Page 15 NOTES:...
