CH-1107EX
HDMI/CAT6 to Single CAT6 Extender
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-1107EX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CH-1107EX

Summary of Contents for CYP CH-1107EX

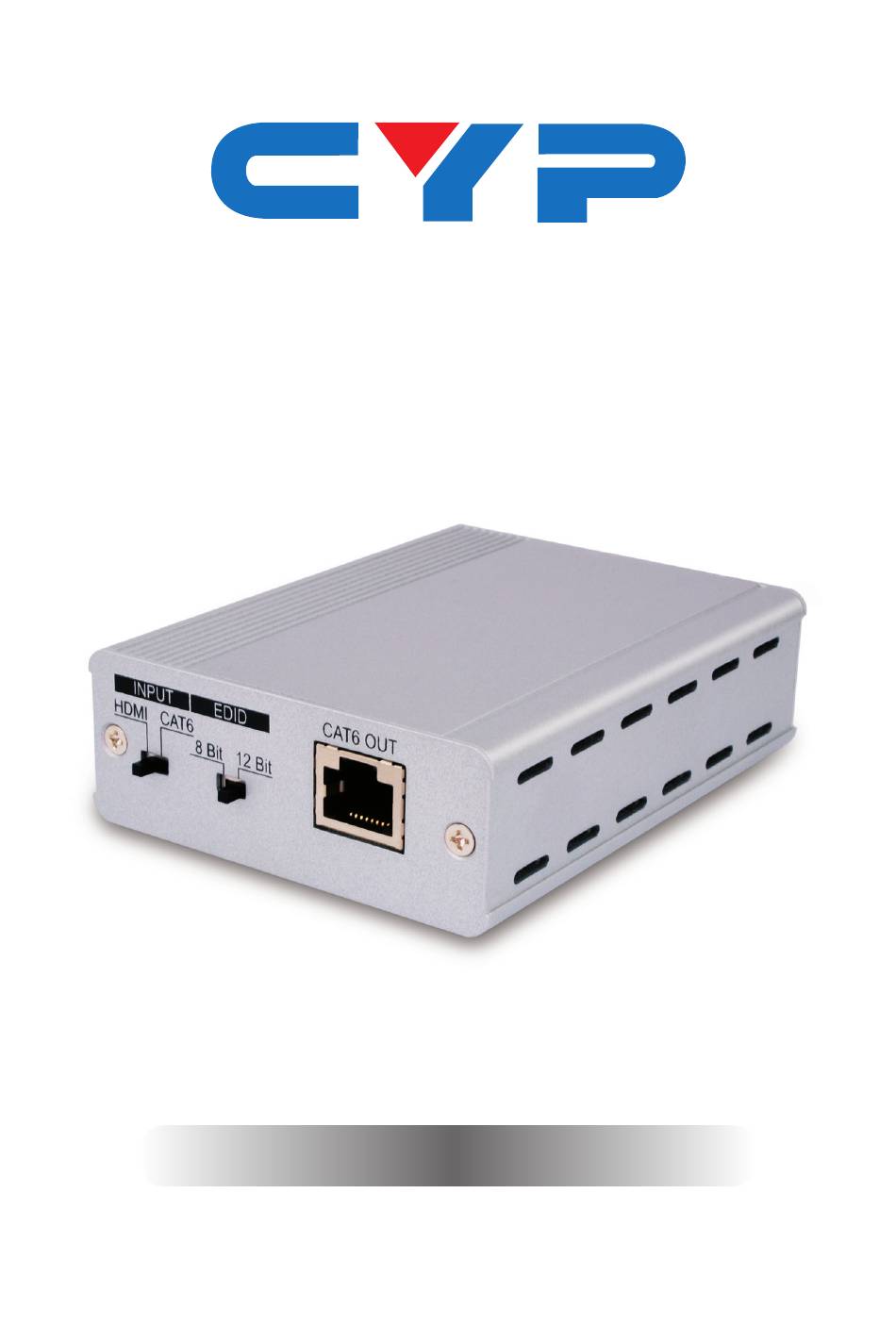

  • Page 1 CH-1107EX HDMI/CAT6 to Single CAT6 Extender Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 1 6. Operation Controls and Functions ..2 6.1 Front Panel ..........2 6.2 Rear Panel ...........3 7. Connection Diagram ......4 8.

  • Page 6: Introduction

    1. INTRODUCTION The HDMI™/CAT6 to Single CAT6 Extender is an advanced solution for HDMI and CAT6 signal distribution. The CAT6 output port can be easily connected to CAT6 to HDMI receivers to allow a stable connection between an HDMI source and any compatible HDMI display. Alternatively, it can be cascaded to extend the signal to several hundred meters.

  • Page 7: Operation Controls And Functions

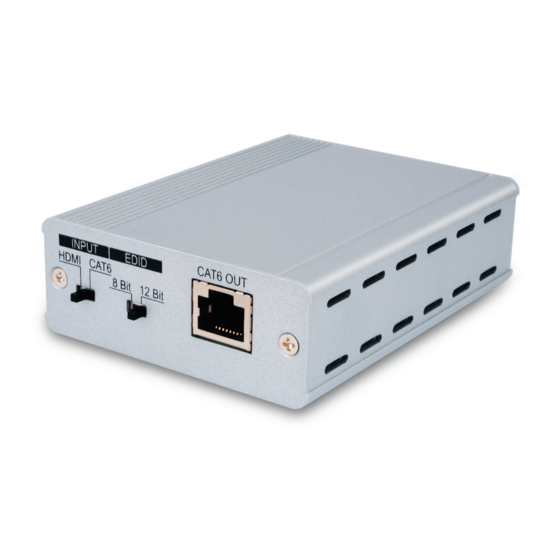

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT6 OUT INPUT EDID HDMI CAT6 8 Bit 12 Bit HDMI/CAT6 Input Switch This switch allows users to select either HDMI or CAT6 as the input source. EDID 8/12-bit switch This switch allows users to change the output display’s EDID between 8- or 12-bit resolution.

  • Page 8: Rear Panel

    6.2 Rear Panel INPUT DC 5V HDMI CAT6 CAT6 Input This port connects a single CAT6 transmitter device attached to a source device by HDMI. HDMI Input HDMI connector to connect a suitably equipped source device such as DVD/Blu-ray player. DC 5V This socket is where you plug the 5 V DC PSU into the unit, connect the PSU to an AC outlet.

  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM HDMI to Single CAT6 DVD or Blu-ray Player Transmitter INPUT HDMI CAT6 PU-Q1H8CS POWER SYNC-RED CAT6 OUT CAT6 OUT 3D-ORG HDMI IN CAT6 OUT DC 5V Option 1 Option 2 Option 3 CAT6 Cable (45 M/8-bit) Single CAT6 to HDMI DC 5V HDMI INPUT...

  • Page 10: Specifications

    8. SPECIFICATIONS Video Bandwidth 2.25 MHz/6.75Gbps Input Ports 1 × HDMI female port , 1 × CAT6 input Output Ports 1 × CAT6 output EDID HDMI Cable In 1080p 8-bit (15 m), 12-bit (15 m) CAT6 Cable In/Out 1080p 8-bit (7~45 m), 12-bit (7~15 m) HDMI Resolution 480i~1080p50/60, 1080p24, VGA~WUXGA ESD Protection...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
