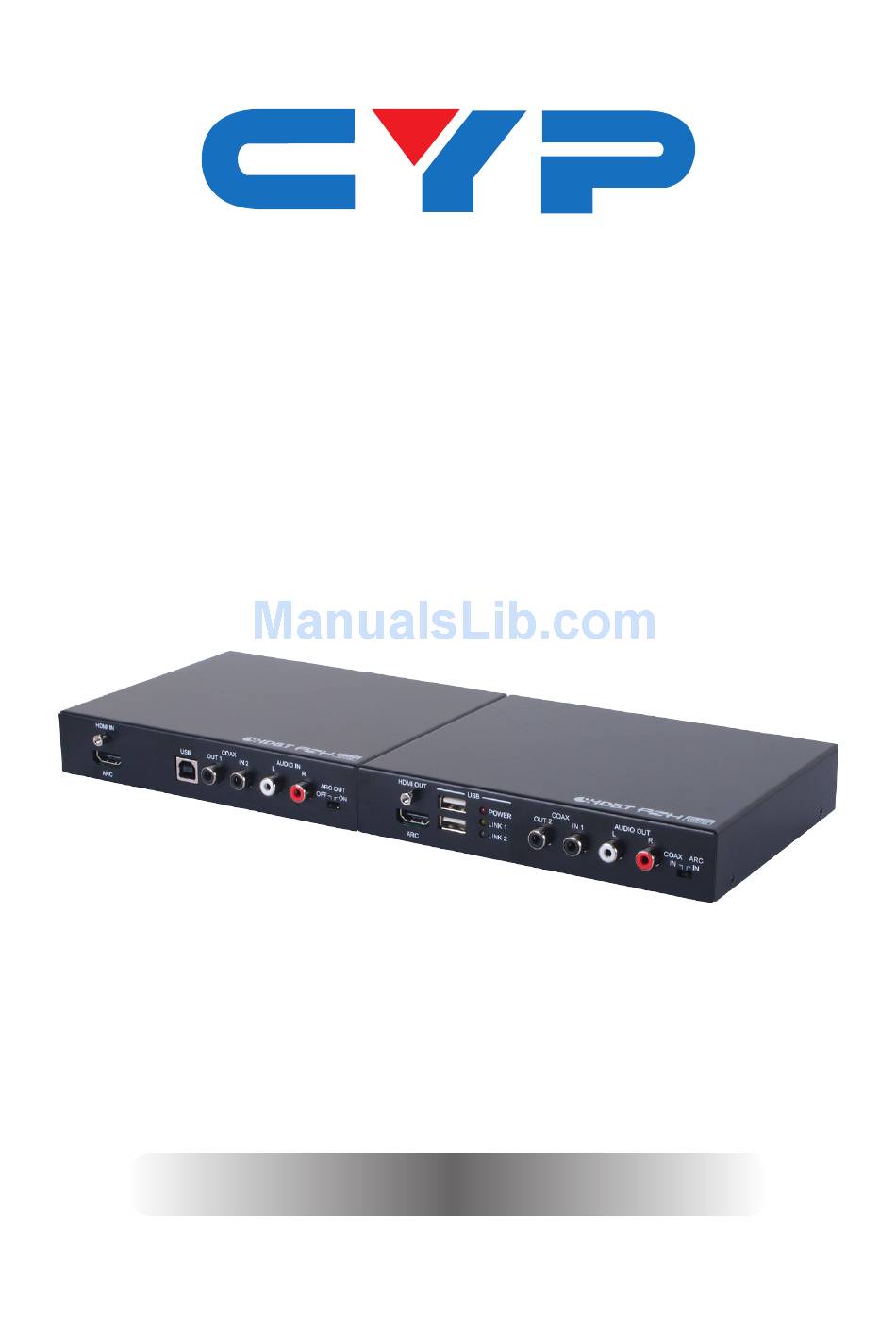

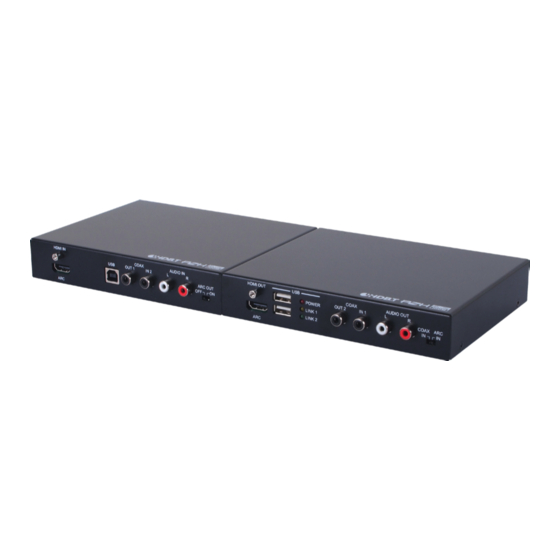

Page 1: Operation Manual
CH-1601TXRX HDMI/Audio over CAT5e/6/7 Extender with 48V PoH Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter’s Front Panel ....3 6.3 Receiver’s Front Panel .....5 6.4 Receiver’s Rear Panel .....6 6.5 IR Cable Pin Assignment....8 6.6 D-Sub 9-Pin Assignment ....8... -
Page 6: Introduction
1. INTRODUCTION This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports and a bidirectional LAN serving connection. -
Page 7: Features
5. FEATURES • Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft • Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K 60Hz with 4:2:0) • Receiver features 2 USB 2.0 ports •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter’s Front Panel RS 232 IN IR IN 2 IR OUT 1 CAT5e/6/7 OUT DC 48V UPDATE POWER Update Switch Switch this deep switch to right for firmware update use, under normal operation, leave the switch on left. RS-232 IN Connect to a PC or Laptop with D-Sub 9- pin female cable for the transmission of RS-232 commands. - Page 9 irregularly it represent the link error or when not illuminate it means no link with Receiver. The green LED will illuminate to represent the PoE activation. DC 48V & POWER LED Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet and the LED will illuminate.
-
Page 10: Receiver's Front Panel
function to be activate or not. Switch to OFF to disable ARC function. Switch to ON allows Receiver's HDMI output/COAX IN audio to be routed back and output to both HDMI IN and COAX OUT 1 on the Transmitter side. Note: When ARC switch to ON, depending on the connected devices of the HDMI OUT &... -
Page 11: Receiver's Rear Panel
the LAN port slot of the equipment device for a total sharing rate of100Mbps within the link. The yellow LED will illuminate to represent the link with Transmitter is steady, when it blink irregularly it represent the link error or when not illuminate it means no link. The green LED will illuminate to represent the Ethernet speed is with 100Mbit/s. - Page 12 LINK 2 This LED will illuminated when the lower USB slot is connected with signal activated. LINK 1 This LED will illuminated when the upper USB slot is connected with signal activated. COAX OUT 2 Connect to speaker with coaxial input for audio signal output from Transmitter’s COAX IN 2.
-
Page 13: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding 6.6 D-Sub 9-Pin Assignment Define TX / RX TxD / RxD RxD / TxD... -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM HDMI IN COAX AUDIO IN OUT 1 IN 2 ARC OUT HDMI DVD or Blu-ray Player Active Speakers DVD or Blu-ray Player 60° PC or Note Book 1.5m 1.5m RS232 Equipped HDMI Switcher 60° 60° IR Extender IR Blaster RS-232 Note Book... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specification Video Bandwidth 340MHz/10.2Gbps Transmitter Input Ports 1 x HDMI 1 x LAN, 1 x RS-232, 1 x IR, 1 x USB, 1 x Coaxial, 1 x L/R Output ports 1 x CAT5e/6/7, 1 x IR 1 x Coaxial Receiver Input Ports... -
Page 16: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification Cable Pixel clock Video Data Supported Range Type rate Rate Video CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, (HD Video) 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 17: Supported Resolutions
8.4 Supported Resolutions Resolution Input Output 640×480@60 √ √ 720×480@60 √ √ 720×576p@50 √ √ 800×600@60 √ √ 1024×768@60 √ √ 1280×720@50 √ √ 1280×720p@50 √ √ 1280×720p@60 √ √ 1280×1024@60 √ √ 1360x 768@60 1600×1200@60 √ √ 1920×1080i@50 √ √... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH1601TXRX...
