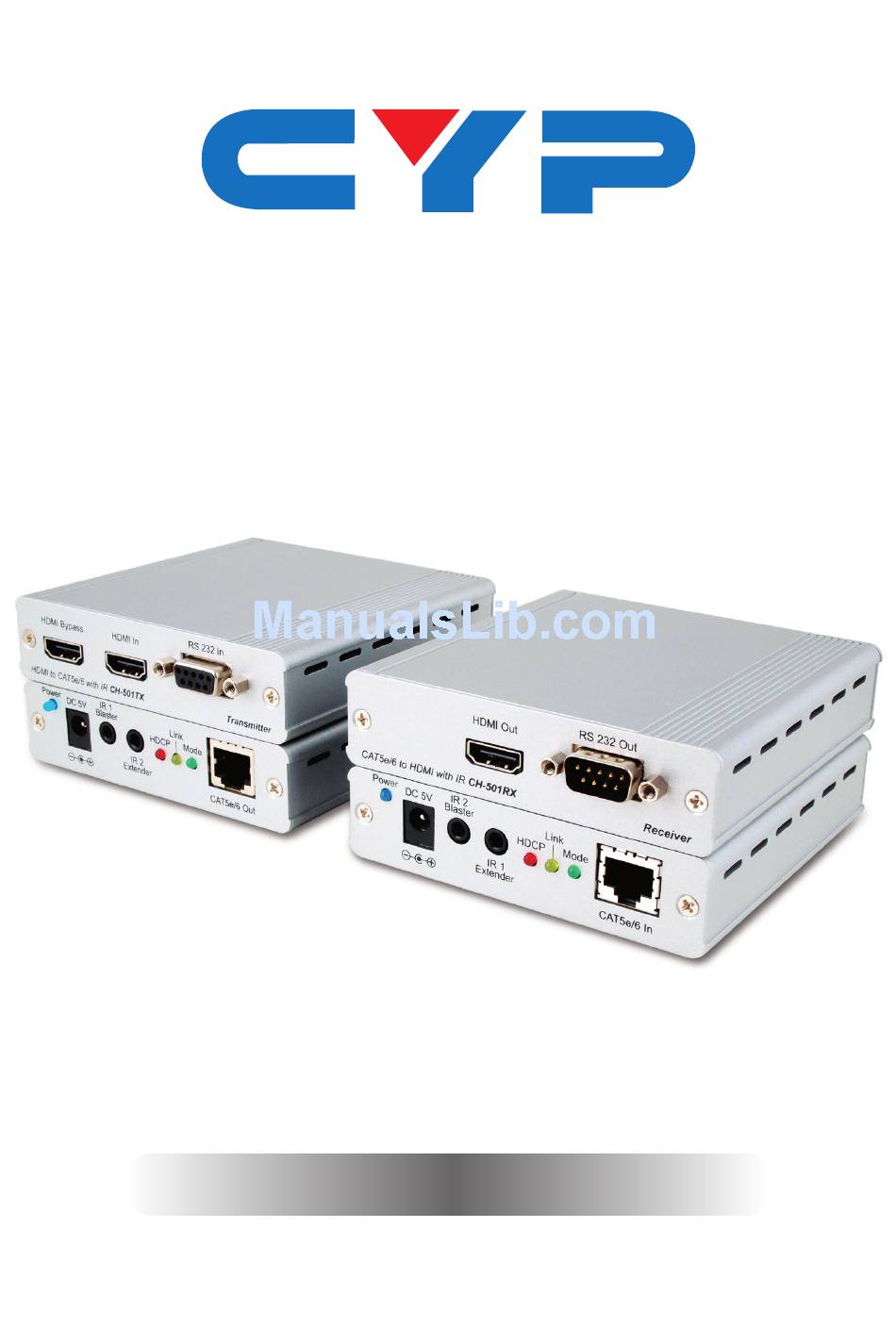

Page 1: Operation Manual
CH-501TX & RX HDMI over Single CAT5e/CAT6 with IR Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Reciever Front and Rear Panels ..5 7. -
Page 6: Introduction

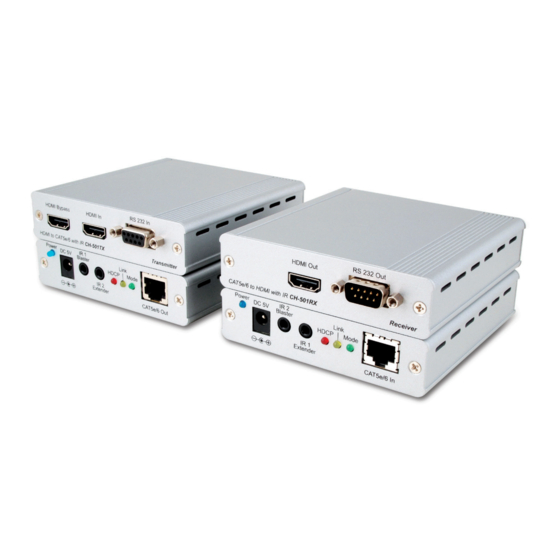

1. INTRODUCTION The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver set can make your home or office set-up more efficient and easy to use. Uncompressed HDMI video and audio can be transmitted over a single CAT5e/CAT6 with the added benefit of control through the built-in RS-232 and IR ports up to 100m. -
Page 7: Features
5. FEATURES • Supports HDMI v1.4 with 3D, 4k x 2k support, HDCP and DVI Compliant • Supports CEC bypass function • Simultaneous transmisson of uncompressed data up to 100 m/328 ft for CAT5e or CAT6 cable Note: This system was tested with CAT6/23AWG cables, so if using cables of another type, results may vary. -
Page 8: Operation Controls And Functions
HDCP Mode IR 2 Extender CAT5e/6 Out HDMI to CAT5e/6 with IR CH-501TX Transmitter HDMI Bypass Connect to a HDMI TV/monitor to test the HDMI input source signal. When the HDMI bypass is connected, signal transmission from the the CAT5e/6 output is disabled. Ensure that it is not connected during normal use. - Page 9 HDCP LED (Red) The LED will illuminate to indicate the input source signal contains a valid HDCP data and will blink if the input source signal is without HDCP data. Link LED (Yellow) The LED will illuminate tio indicate when both the CAT5e/6 input and output signals are connected.
-
Page 10: Reciever Front And Rear Panels
6.2 Reciever Front and Rear Panels Front Rear Power DC 5V IR 2 RS 232 Out Blaster Link HDMI Out Mode HDCP IR 1 Extender CAT5e/6 In CAT5e/6 to HDMI with IR CH-501RX Receiver 6 7 8 HDMI Out Connect to a HDMI equipped TV/monitor for display the HDMI input source signal. -
Page 11: D-Sub 9 Pin Definitions
Mode LED (Green) This green LED will blinking when the device is processing. CAT5e/6 These slots are to be connected with a single CAT5e/6 cable for data transmitting. 7. D-SUB 9 PIN DEFINITIONS Define TX / RX TxD/RxD RxD/TxD 8. IR CABLE PIN ASSIGNMENT IR Blaster Power 5 V IR Blaster Signal... -
Page 12: Connection Diagram
DVD or Blu-ray Player TV/Monitor 1.5m 60° IR Blaster 1 Power Supply RS 232 In HDMI Bypass HDMI In 60° HDMI to CAT5e/6 with IR CH-501TX Transmitter Power DC 5V IR 1 Blaster Link HDCP Mode IR 2 Extender CAT5e/6 Out... -
Page 13: Specifications
10. SPECIFICATIONS Video Bandwidth 300MHz / 9Gbps Transmitter Input 1×HDMI, 1×RS-232, 1×IR Extender Output 1×CAT5e/6, 1×HDMI Bypass, 1×IR Blaster Receiver Input 1×CAT5e/6, 1 x IR Extender Output 1×HDMI, 1×RS-232, 1×IR Blaster ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) IR Frequency 30~50kHz... -
Page 14: Acronyms
11. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
