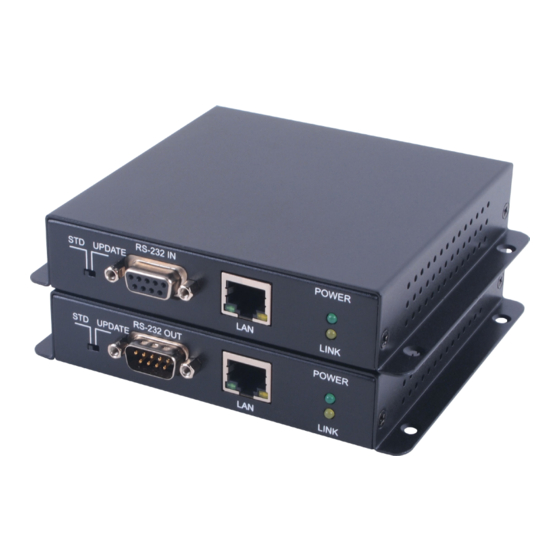

CH-1527TX & RX
HDMI over CAT5e/6/7 Extender with LAN/IR/RS-232/
PoE
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-1527TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CH-1527TX

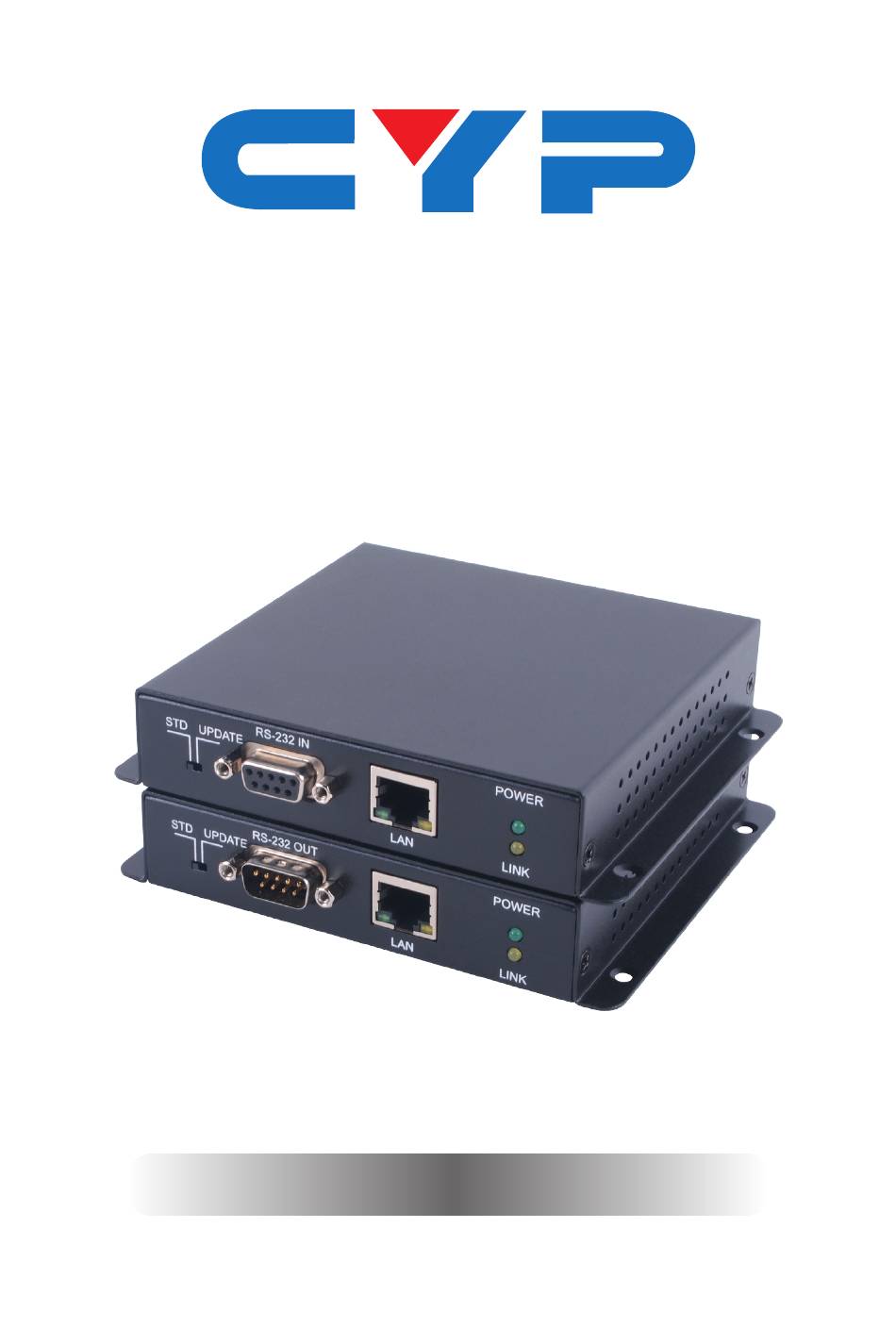

  • Page 1 CH-1527TX & RX HDMI over CAT5e/6/7 Extender with LAN/IR/RS-232/ Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3. IR Cable Pin Assignment....5 6.4.
  • Page 6: Introduction

    1. INTRODUCTION The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi- directional LAN serving connection.
  • Page 7: Features

    5. FEATURES • HDMI with 3D, 4K2K support, HDMI & DVI Compliant • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6/7 cable • 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232) • Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9 •...
  • Page 8: Transmitter Front And Rear Panels

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear RS-232 IN POWER BLASTER STD UPDATE HDMI IN LINK DC 48V EXTENDER DC 48V: Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet. IR1 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission.
  • Page 9: Receiver Front And Rear Panels

    6.2 Receiver Front and Rear Panels Front Rear RS-232 OUT POWER BLASTER STD UPDATE HDMI OUT EXTENDER LINK IR2 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.
  • Page 10: Ir Cable Pin Assignment

    6.3. IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Signal IR Extender Power Grounding 6.4. D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD...
  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC or Notebook Internet Modem or Router CAT5e/6 1.5m 60° DVD or Blu-ray Player RS-232 IR Blaster Power Supply RS-232 IN POWER STD UPDATE HDMI LINK BLASTER 60° HDMI IN DC 48V EXTENDER CAT5e/6 IR Extender HDMI IR Extender 60°...
  • Page 12: Specifications

    8. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Transmitter Inputs 1 x HDMI 1 x IR Extender 1 x RS-232 1 x LAN Outputs 1 x CAT5e/6/7 1 x IR Blaster Receiver Inputs 1 x CAT5e/6/7, 1 x IR Extender Outputs 1 x HDMI, 1 x RS-232, 1 X IR Blaster, 1 x LAN HDMI I/O Resolution HD: 480i~4K2K@24/25/30/50/60 &...
  • Page 13: Cat5E/6/7 Cable Specification

    Operating Temperature 0 °C~40 °C/32 °F ~104 °F Storage Temperature −20 °C~60 °C/−4 °F~140 °F Relative Humidity 20~90 % RH (non-condensing) 8.1 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits,...
  • Page 14: Acronyms

    INPUT OUTPUT 480P/576P 720P@50/60 1080I@50/60 1080P@50/60 1080P@24/25/30 9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High Definition Multimedia Interface Infrared Powered Device Power Sourcing Equipment...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH1527TXRX...
