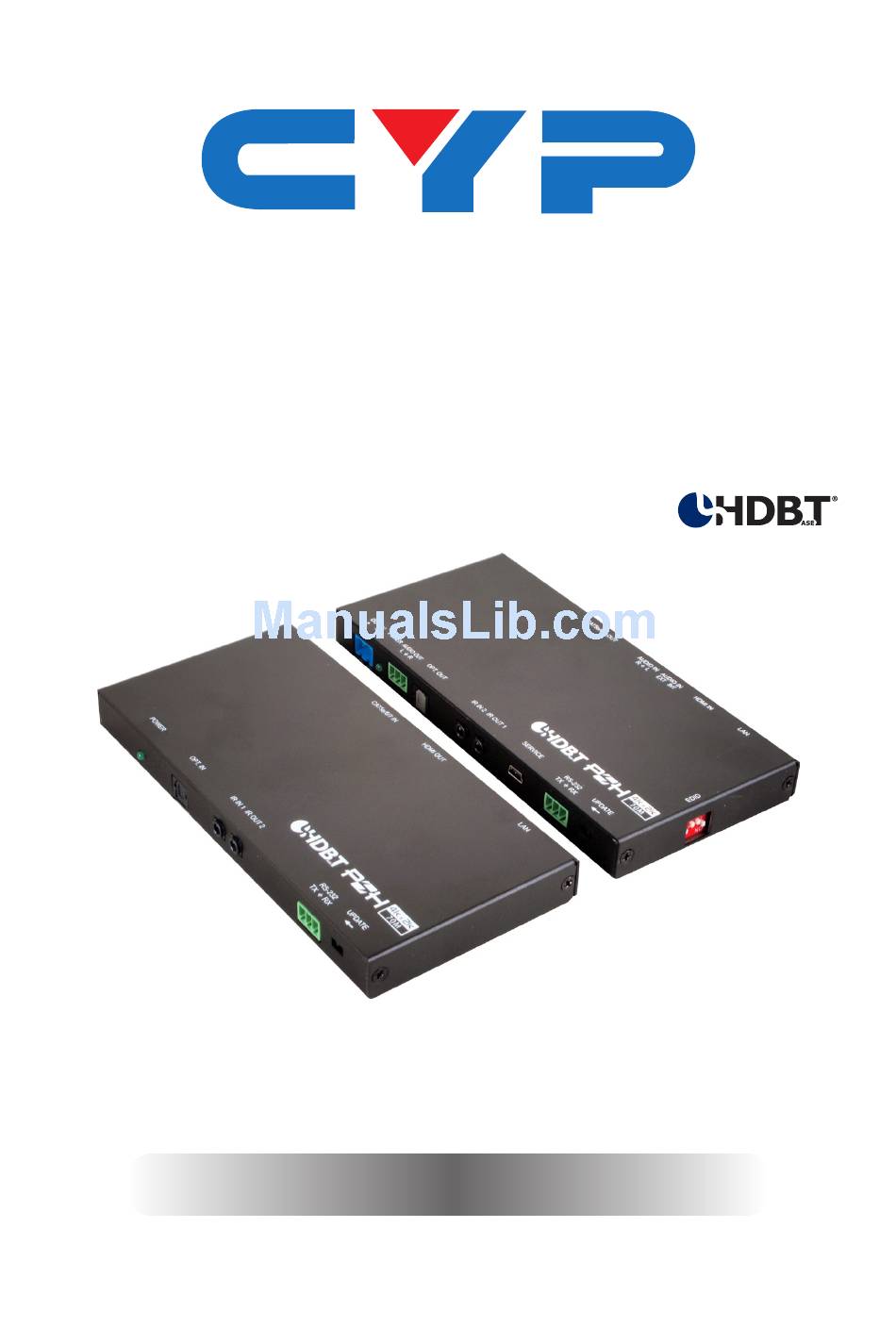

Page 1: Operation Manual
CH-1529TX/RX HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion Operation Manual Operation Manual... - Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions .....3 6.1 Front Panel of Transmitter ..... 3 6.2 Rear Panel of Transmitter ..... 4 6.3 Right Side Panel of Transmitter .... 4 6.4 Front Panel of Receiver ...... -
Page 5: Introduction
1. INTRODUCTION The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. Multi-control interfaces are available which includes IR, RS-232, USB and LAN connection. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS Input source equipment such as PS3/Blu-ray player and output HD TV/ display. 5. FEATURES • HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant • HDMI with 3D, 4K2K support and DVI Compliant • 6G HDMI video (3840x2160 YUV444) input is supported •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel of Transmitter DC 48V POWER AUDIO OUT OPT. OUT IR IN 2 IR OUT 1 SERVICE RS-232 UPDATE DC 48V: Plug the 48V DC power supply into the unit. Please do follow the label on adapter to connect the black cable to ground pin of connector. -
Page 8: Rear Panel Of Transmitter
6.2 Rear Panel of Transmitter CAT5e/6/7 OUT AUDIO IN AUDIO IN HDMI IN EXT INT CAT5e/6/7 Out: Connects to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals includes power. Audio In: This phoenix connector allowing connect to analog audio devices such as DVD players. - Page 9 upload as prefer one. The last one is native EDI which copies EDID from sink device. Dipswitch Selection for EDID: Mode Number Dipswitch Number Internal Mode 0000 1000 0100 1100 0010 1010 User Mode 0110 1110 0001 1001 0101 1101 0011 1011 0111...
- Page 10 6. Upload mode. Default: FHD / 2 channel: 1080p/60 148M, No deep color 8bits, 2Ch 7. Upload mode. Default: FHD / 2 channel: 1080p/60 148M, No deep color 8bits, 2Ch 8. Upload mode. Default: FHD / 2 channel: 1080p/60 148M, No deep color 8bits, 2Ch 9.
- Page 11 4. Move mouse courser and click left button at following position to generate another working window...
- Page 12 5. Following window will be generated, please click file icon...
- Page 13 6. Select EDID bin file to upload and EDID completes upload.
-
Page 14: Front Panel Of Receiver
6.4 Front Panel of Receiver 7 0M POWER OPT. IN IR IN 1 IR OUT 2 RS-232 UPDATE Power LED: This power LED will illuminate when receiving the power from transmitter. OPT. In: Connects with optical audio source as optical audio return which allowing audio transmit to Transmitter. -
Page 15: Rear Panel Of Receiver
6.5 Rear Panel of Receiver CAT5e/6/7 IN HDMI OUT CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7 cable for transmission of all data signals and power. HDMI Out: Connects to HDMI sink equipment such as a display. LAN: Connects to an internet or network system. -
Page 16: D-Sub 9 Pin Definitions
6.7 D-Sub 9 Pin Definitions Define TX / RX TxD / RxD RxD / TxD... -
Page 17: Specifications
7. SPECIFICATIONS Video Bandwidth 340MHz / 10.2Gbps Transmitter Input Ports 1 x HDMI 1 x Audio In slide switch 1 x Audio In connector 1 x IR In 2 Output Ports 1 x Optical Out 1 x Audio Out 1 x CAT5e/6/7 1 x IR Out 1 x IR Out 1 Other... - Page 18 HDMI Resolution HD: 480i~4K2K@50/60 _ YUV_420 PC: VGA ~ WUXGA Resolution HDMI Cable Distance In: 10m/1080p@8-bit or 12-bit and 5m@4K2K Out:10m/1080p@8-bit or 12-bit and 5m@4K2K CAT5e/6/7 Cable Up to 100m Distance RS232 Baud Rate Up to 115200 bps IR Frequency 30~50kHz ESD Protection Human Body model: ±...
-
Page 19: Cat5E/6/7 Cable Specification
7.1 CAT5e/6/7 Cable Specification Cable Pixel Clock Video Data Supported Video Range Type Rate Rate Formats CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p@60 Hz, (HD Video) 36-bit, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 20: Hdbt Features
7.3 HDBT Features HDBase T Feature Support or Not Video & Audio Support Support RS232 Support Send power to Transmitter Send power to Receiver Support Support... -
Page 21: Connection And Installation
8. CONNECTION AND INSTALLATION Active Speakers Internet Extender Connected Router Blaster Analog RS-232 Stereo 1.5m 60° Output 60° DVD/Blu-ray Player HDMI Input RS-232 CAT5e/6/7 Cable DVD/Blu-ray Player Amplifier Power Supply Optical Digital Input HDMI Digital Outputs RS-232 60° 60° 1.5m Blaster Extender RS-232 Controlled... -
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared Powered Device Power Sourcing Equipment... - Page 23 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH1529TXRX...
