SMARTBAT (MASTER): SIGNAL INPUT
1) DMX (with a DMX Controller)
2) Control panel on device
3) IR remote controller
IRC REMOTE
BLACK
AUTO SOUND
OUT
SENSI-
STROBE SPEED
TIVITY
% FADE
MANUAL
SNAP
R G B
UV W
A
+
0
1 2 3
4 5 6
7 8 9
SMARTBAT (MASTER):
TRANSMITTER MODE
(type of channel for data wireless
communication)
1) Manual Channel --> dtCH
2) Auto Channel --> dtAU
SMARTBAT (SLAVE): RECEIVER MODE
1) drCH --> MASTER UNIT sets on Manual Channel
2) drAU --> MASTER UNIT sets on Auto Channel
Note: To work in the right way, all SMARTBAT must be con gured with the same DMX address/mode.
3.14 OPERATION WITH APP "SMARTCOLORS"
Important: WIFIBOX hardware is required to use this app.
WIFIBOX is a new-generation light control system, conceived to obtain an easy and versatile platform for
LED projectors. The signal transmission is managed wired and wireless (through Wi-Fi), both in input and
output, even allowing to control the fixtures through a smartphones applications "Smarcolors", available
for IOS and Android devices. Before using the application, check that all devices are properly configured
with WIFIBOX. For device's configuration refer to the WIFIBOX manual available on "www.musiclights.it".
SMARTbAT
MASTER
SLAVE
SLAVE
SLAVE
SLAVE

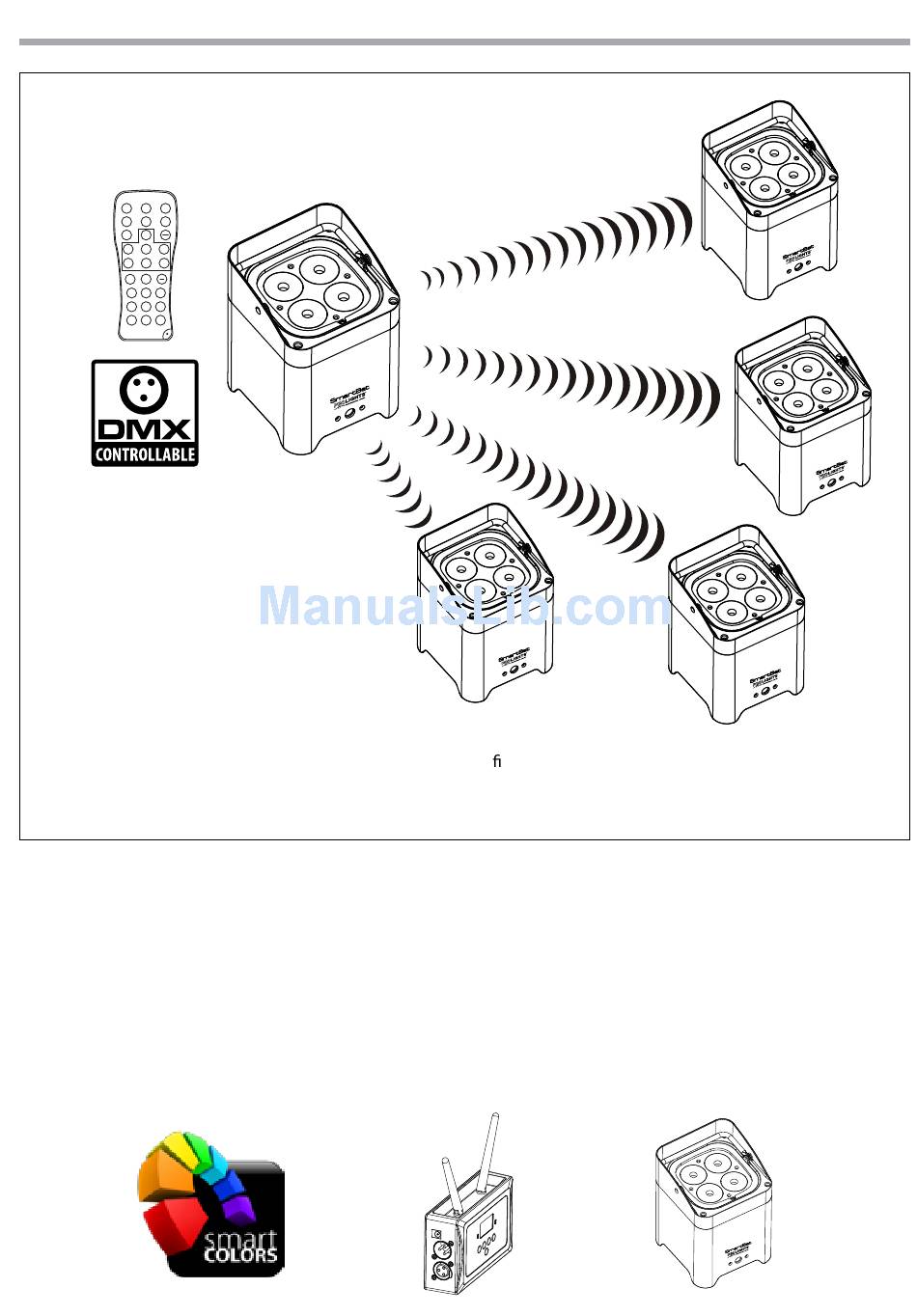

Fig.8 - Configuration Master/Slave mode
