3.0 Power Test

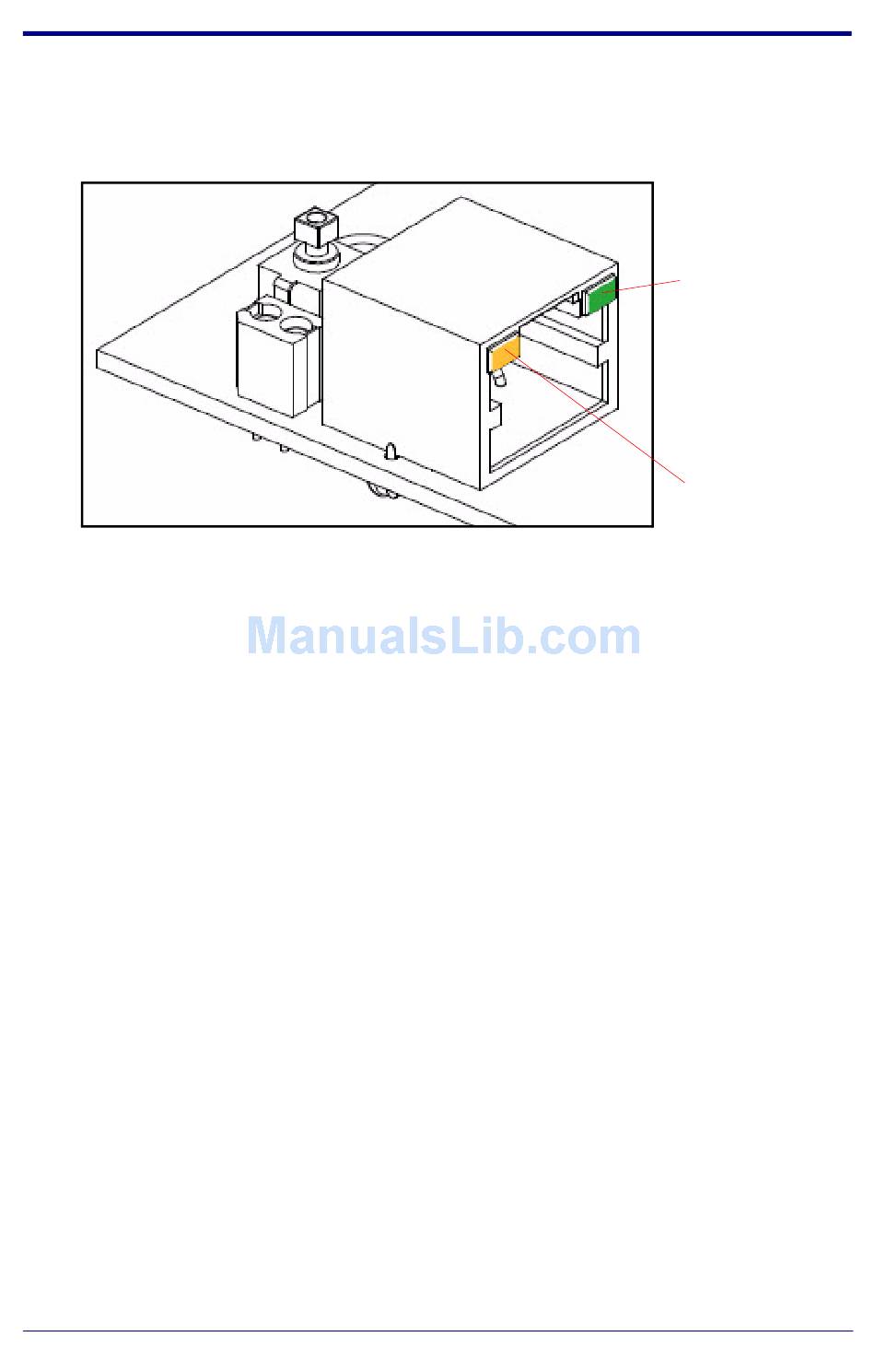

3.1. Plug in the CyberData device and monitor the LED activity above the
ethernet port on the back of the Intercom. See the following figure:
3.2. The green
comes on again and remains constant (solid green). The
LED may be blinking depending on the network activity.
During the initialization process, the
on and be constant (solid green). After the Intercom has completed booting,
the LED will blink twice and then remain constant thereafter (either on or
off depending on whether or not the Button Lit When Idle setting is
enabled on the Device Configuration page).
Normally, the initialization process will take about 20 seconds. However, if
the device is set to use DHCP and no DHCP server is available, then the
device will retry for the amount of time specified in the DHCP Timeout in
seconds setting on the Network Configuration page before it falls back to
the stored static IP address (10.10.10.10 by default).
3.3. When the Intercom has completed the initialization process, press and hold
the RTFM switch (SW1 button) for 3 seconds to announce the IP address.
This concludes the power test. Go to
in a Test Environment".
