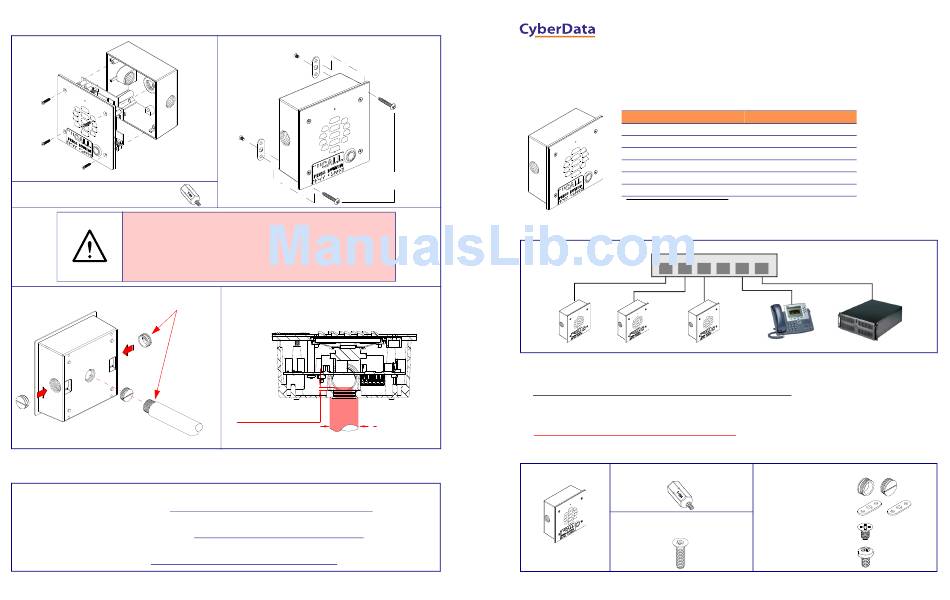

CyberData VoIP Intercom Installation Quick Reference

Mounting
To mount the intercom, use methods compliant with local electrical codes.
2 Gang Box
Face Plate
and
PCB Assembly
Security Torx Screw (4x)
(1) Tamper-resistant Torx Bit (T-15H)
(Requires 1/4-inch Driver Torx Bit Socket)
Caution
Equipment Hazard: Do not use an electric or power screwdriver to fasten the face
plate and PCB assembly to the gang box. To prevent over-torque damage to the
gasket, do not apply more than 10 inch-pounds force. Over-torquing will cause
the gasket to tear, risk moisture intrusion, and effectively void the manufacturer's
GENERAL ALERT
warranty.
Apply good quality waterproof
sealant to all threads.
HOLE PLUG
HOLE PLUG
OR
OR
CONDUIT
CONDUIT (1/2")
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty and RMA information is available at the following website:
www.CyberData.net
http://www.cyberdata.net/support/warranty/index.html
© 2011, CyberData Corporation, ALL RIGHTS RESERVED
Flush Mounting
Plate (2x)
Flat Head Phillips
Machine Screw (2x)
Mounting Screw
(Not Provided)
The Intercom has three cable entries. If you are using the
center entry, refer to this drawing that shows the entry restrictions.
Not to Exceed 0.1"
http://www.cyberdata.net/support/rmastatus.html
930180P
The IP Endpoint Company
Typical Intercom System Installation
VoIP Intercom
Getting Started
• Download the VoIP Intercom Operations Guide PDF file, from the VoIP Intercom product page at:
http://www.cyberdata.net/products/voip/digitalanalog/intercom/docs.html
• Create a plan for the locations of your Intercoms.
• Prior to installation, consult local building and electrical code requirements.
1
" Conduit
2
• WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts

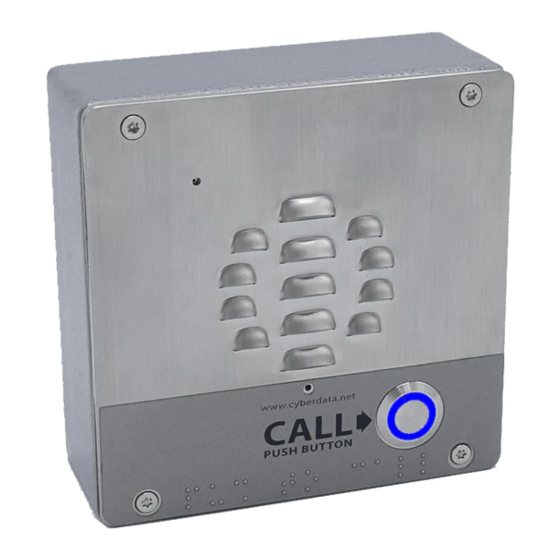

(1) Intercom Assembly
Quick Reference Quick Reference
Installation Quick Reference
VoIP Intercom
SiP Compliant
010935
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Hub
1 2 3 4 5 6
VoIP Intercom VoIP Intercom IP Phone
(1) Tamper-resistant Torx Bit (T-15H) (1) Wall Mounting Kit
(2) Outlet box plugs
(2) Flush mounting plate
(4) #6-32 x 5/8-inch Torx Security Flat
(2) 8-32 x 1/4" Flat head
Head 82° Countersunk Machine Screw
phillips machine screw
(1) 10-24 x 5/16" Pan head
phillips machine screw
930180P © 2011, CyberData Corporation, ALL RIGHTS RESERVED
IP PBX Server
