By increasing the sensitivity, the range of the PIR Sensor is also increased. The PIR Sensor can
be configured to detect movement in the dark up a maximum range of 6 meters. Select from the
drop-down menu to adjust the PIR Sensor's sensitivity.

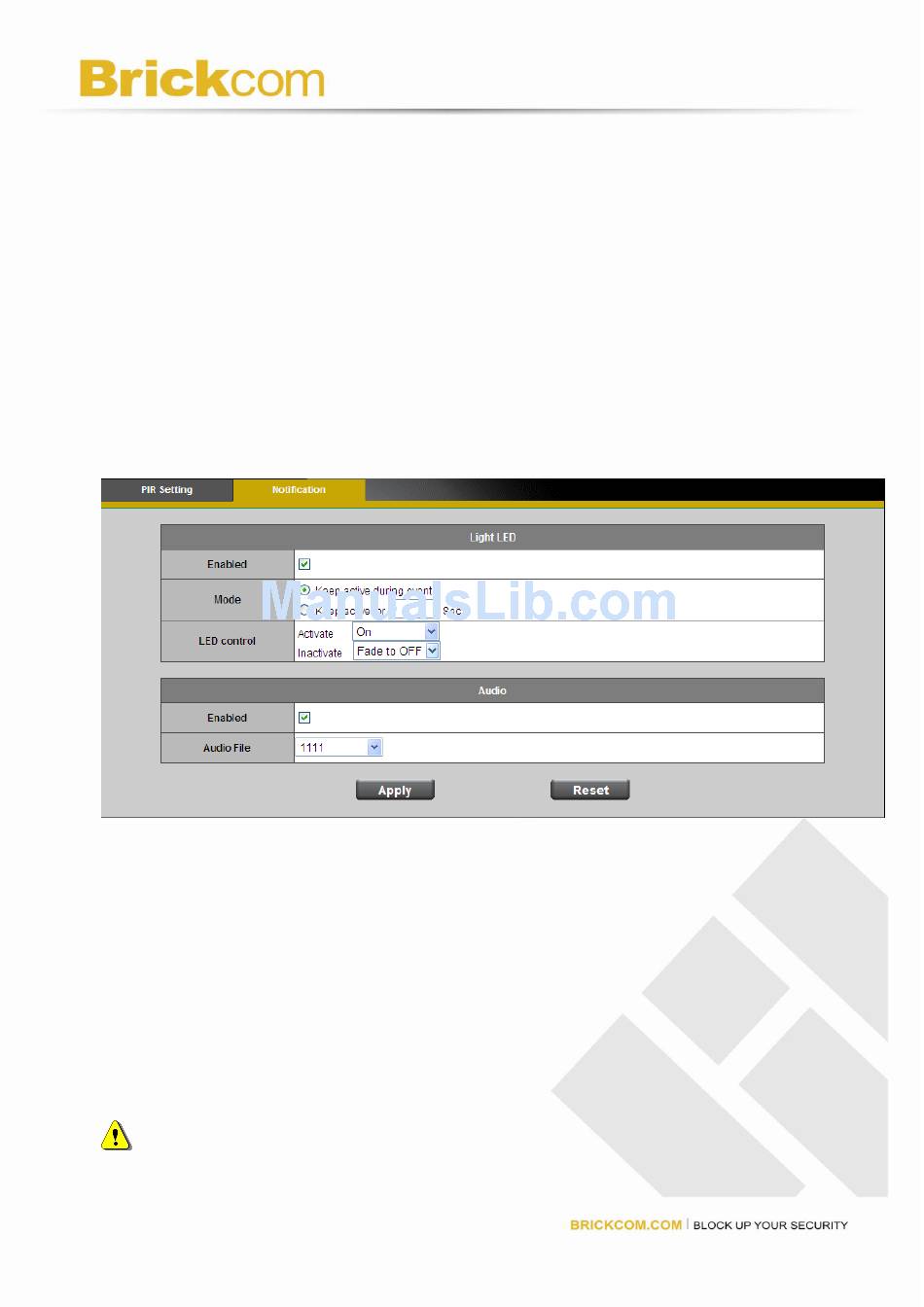

Notification
(Note - WCB-100Ae does not support this function)
A triggered event using the PIR Sensor can be configured so that when an alarm is activated,
the camera can play an audio clip and flash the LED.
Light LED Mode - to illuminate the scene. The brightness of light source can be manually
selected.
LED Control - The LED on the front of the camera can be set to flash at a configurable interval
(or to not light up at all) when the event is triggered.
Select an Audio file from the drop-down menu to play an audio clip when an alarm is
activated.
Click Apply or Reset to take effect.
NOTE – Please record an audio file at the Audio Clip page first.
