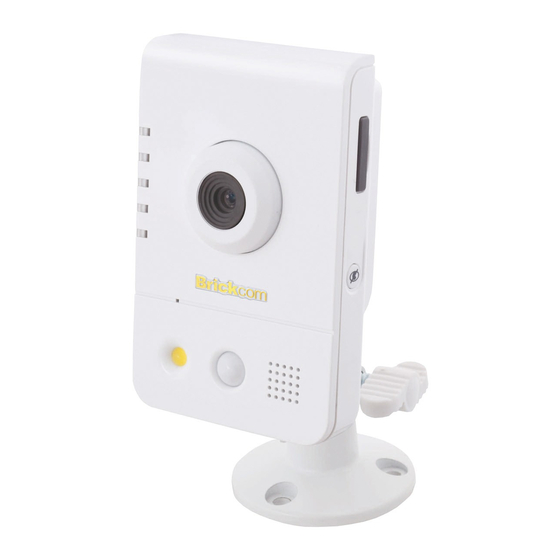

Megapixel (PoE) Cube Network Camera
CB-100A/CB-101A/CB-102A Series
Quick Installation Guide
Quality Service Group
Advertisement
Related Manuals for Brickcom CB-100A Series
Summary of Contents for Brickcom CB-100A Series
-

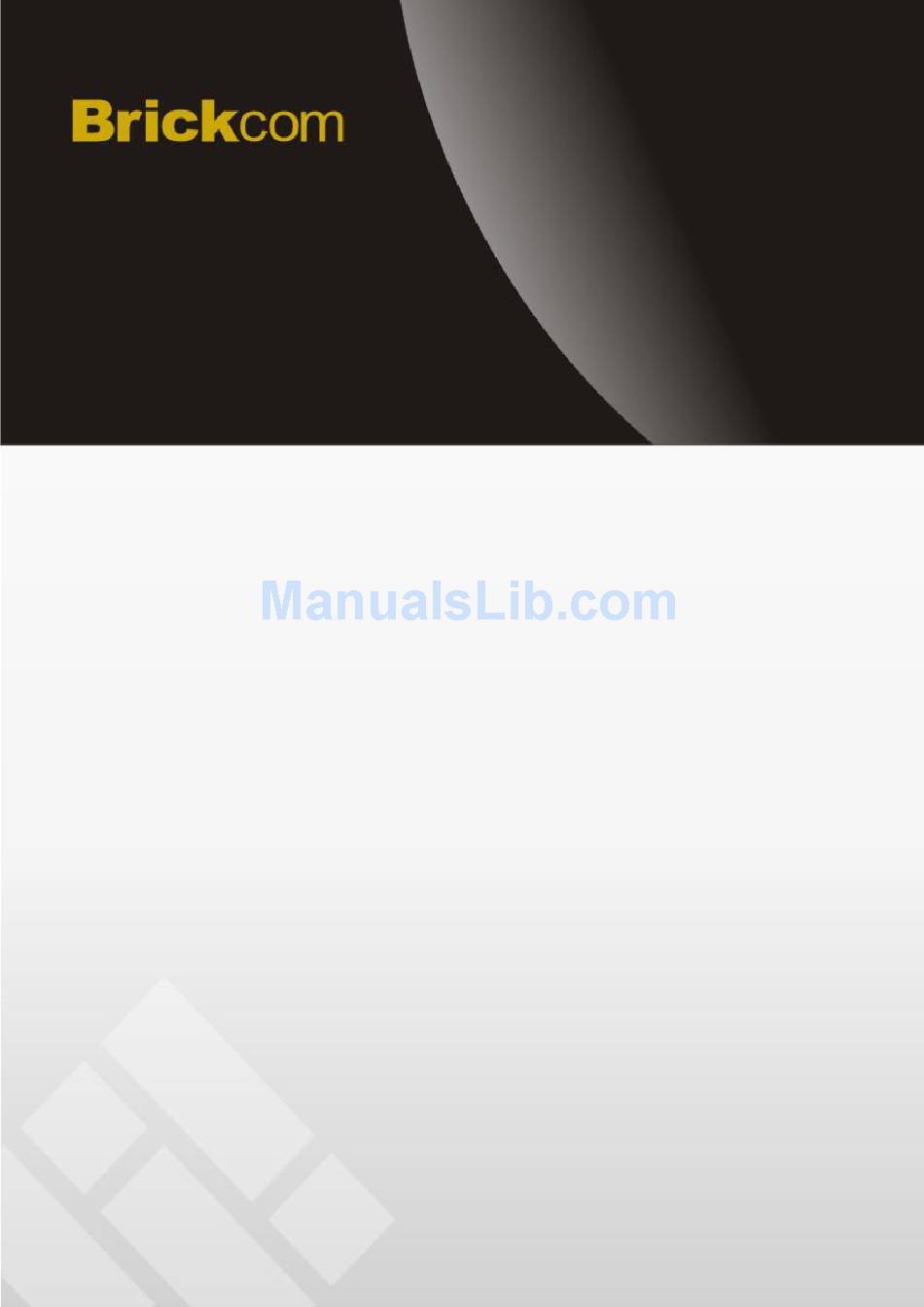

Page 1: Quick Installation Guide
Megapixel (PoE) Cube Network Camera CB-100A/CB-101A/CB-102A Series Quick Installation Guide Quality Service Group... - Page 2 Read Before You Use 1. Power off the camera device immediately if it starts smoking or smells unusual. 2. Power off the camera device immediately if the camera is exposed to rain or liquid. 3. Do not set the camera device near any heat sources.
- Page 3 6. Do not set the camera device in any wet and humid environments. 7. Do not set the camera device on unsteady surfaces. 8. Do not attempt to dismantle the camera device. 9. Do not drop or hit the camera device. 10.
- Page 4 1. Check Package Contents a. Network Camera b. Product CD CB-100A/CB-101A CB-102A c. Camera Stand d. Warranty Card CB-100A/CB-101A CB-102A e. Terminal I/O Connector Block f. Easy Installation Guide (CB-101A/CB-102A) g. 1.5m White Flat RJ-45 cable h. Power Adapter(CB-100A) (CB-100A)
- Page 5 2. Device Description <Front & Rear view> <CB-100A/CB-101A> <CB-102A> Adjustable focal Lens Built-in Microphone PIR(*) Illumination LED(*) Speaker(*) Ethernet RJ45 Terminal I/O Connector 10/100 Socket Reset Button Reset Button Power Connector...
- Page 6 <Side view> Power LED Micro SD slot(*) Status LED Internet LED WPS button (WCB-100A Only) WPS LED (WCB-100A) Firmware upgrade LED Privacy button(*) (CB-100A/CB-101A/CB-102A) Privacy LED NOTE: (*) These are optional features. Please refer to the Product List for the full list of optional features available for the product.
- Page 7 4. Camera Connection <CB-100A> Basic Connection 1. Connect the supplied power cable from the camera to the power outlet. 2. Connect the camera to a switch via Ethernet cable. <CB-101A/CB-102A> 1 Terminal I/O Connector Block Connection 1.1 The supplied terminal I/O connector block can be used to connect external devices, such as sensors and alarms to the camera.
- Page 8 the diagram above to attach the external devices to the connector block. Attach the connector block to the terminal connector on the camera. 2 Basic Connection (Without PoE) 2.1 Connect the camera to a switch using a standard Ethernet cable. 2.2 Connect the power adapter from the camera to a power outlet.
- Page 9 B. If using a non-PoE switch: Use a standard Ethernet cable to connect the camera to a PoE Injector. Use a standard Ethernet cable to connect the PoE Injector to the non-PoE switch. Use a standard power cable to connect the PoE Injector to a power outlet.
- Page 10 1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box. Click <Install>...
- Page 11 2. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual.
- Page 12 If Custom Setup type was used in the software installation and an EasyConfig icon was not installed on the desktop, the program will be installed under C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the camera in the intranet.
- Page 14 2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually. 3.
- Page 15 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.” 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended.
- Page 16 a. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
- Page 17 *If desired, click <Skip> to skip this setting. EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses.
- Page 18 7. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
- Page 19 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X>...
