Brickcom WCB-100A User Manual

Cb-100a series megapixel cube network camera
Hide thumbs Also See for WCB-100A:
Table of Contents

Advertisement

Quick Links

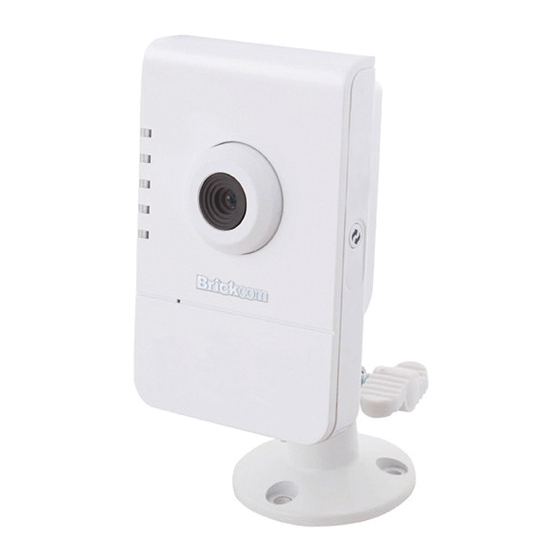

Megapixel Cube Network Camera
CB-100A series
User's Manual
Quality Service Group

Advertisement

Table of Contents
loading

Related Manuals for Brickcom WCB-100A

Summary of Contents for Brickcom WCB-100A

  • Page 1 Megapixel Cube Network Camera CB-100A series User’s Manual Quality Service Group...
  • Page 2 Product name: Megapixel Cube Network Camera (WCB-100A/CB-100A) Release Date: 2009/ Manual Revision: V1.00 Web site: www.brickcom.com Email: technical@brickcom.com info@brickcom.com Made in Taiwan. ©2009 Brickcom Corporation. All Rights Reserved...

  • Page 3: Table Of Contents

    Table of Contents Before You Use This Product ..................0 Package Contents......................0 Cube Network Camera Overview..................1 Device Appearance Description ..................3 LED Behavior ......................4 Installation........................6 System Requirements ....................6 Camera Connection ....................7 Basic Connection....................7 Software Installation ....................
  • Page 4 Firmware Upgrade ................... 51 Configuration ....................52 Reset to default....................52 Reboot ......................52 FCC Caution ......................... 53 BRICKCOM IPCAM HTTP API ..................54 Preface ........................54 Overview ........................ 54 HTTP API Transaction ....................55 API Categories......................57 Streaming API ....................... 58 getChannels ....................
  • Page 5 2.14 getFrequency .................... 79 2.15 setEffect ....................79 2.16 getEffect ....................79 2.17 setEnvMode ....................80 2.18 getEnvMode ....................80 2.19 setIRCutFilter .................... 80 2.20 getIRCutFilter .................... 81 2.21 setIRLED....................81 2.22 getIRLED....................81 2.23 setVideoOverlay ..................82 2.24 getVideoOverlay..................82 2.25 setAutoIris ....................
  • Page 6 setTimeSetting ..................110 getTimeSetting ..................111 setSyslogSetting..................112 getSyslogSetting ..................112 getSyslogFile....................113 syslogClear ....................113 Admin API ........................114 addUser....................116 deleteUser....................117 getUsers....................117 updateUser....................118 setHTTP ....................118 setHTTP/HTTPS ..................119 getHTTP....................119 setHTTPS....................119 getHTTPS ....................120 6.10 resetToDefault ..................120 6.11 upgradeFirmware ..................120 6.12 reboot ...................... 120 6.13 importConfigFile ..................
  • Page 7 setFTPSetting ..................140 9.10 getFTPSetting ..................141 9.11 setAlarmMediaInfo .................. 142 9.12 getAlarmMediaInfo .................. 142 9.13 setSamba ....................143 9.14 getSamba....................143 I/O Control API ......................144 10.1 setGPIOSetting ..................144 10.2 getGPIOSetting ..................145 10.3 getGPIOStatus ..................145 MSN API ........................146 11.1 setMSNBot ....................

  • Page 8: Before You Use This Product

    Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

  • Page 9: Package Contents

    Package Contents a. CB-100A/ WCB-100A b. Product CD d. White Flat RJ-45 cable(1.5m) c. Camera Stand e. Warranty Card f. Power Adapter g. Quick Guide...

  • Page 10: Cube Network Camera Overview

    Unlike general webcam, Brickcom CB-100A/ WCB-100A camera is a standalone complete system that does not need to be connected to a computer. The built-in web server allows user to access over local area network (LAN) and through the internet via a web browser for live viewing and intercom functions.
  • Page 11 The elderly and baby care - The elderly and baby can be cared easily by live view and intercom. Small office surveillance - Employees working status can be monitored by portal device. - 2 -...

  • Page 12: Device Appearance Description

    Microphone Reset Button Ethernet RJ45 10/100 Socket Illumination LED Speaker <Side view> Power LED Micro SD slot Status LED Internet LED WPS button (WCB-100A Only) WPS LED (WCB-100A ) Firmware upgrade LED Privacy button (CB-100A) Privacy LED - 3 -...

  • Page 13: Led Behavior

    Second (Blue) 2. Restoring settings. Internet Connect to Internet Third (Blue) Steady On 1. Power off Internet Unlighted Third (Blue) 2. No connection WCB-100A WPS in progress Fourth (Blue) WCB-100A WPS Error Fourth (Blue) - 4 -...
  • Page 14 WCB-100A Session overlap detected Fourth (Blue) WCB-100A WPS Success Fourth (Blue) Firmware Steady On Firmware Upgrade CB-100A Upgrade Success Fourth (Blue) Privacy Steady On Privacy mask active Bottom(Red) Privacy Unlighted Privacy mask inactive Bottom(Red) Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation.

  • Page 15: Installation

    Installation System Requirements Operating System Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer IBM PC/AT Compatible Pentium 3GHz or faster Memory 1024 MB or more Monitor 1024 x 768 pixels or more, 24-bit True color or better Network Interface 10/100Mbps Network interface card must be installed Web Browser...

  • Page 16: Camera Connection

    Camera Connection Basic Connection 1. Connect the supplied power cable from the camera to the power outlet. 2. Connect the camera to a switch via Ethernet cable. Please check your product package contains all the accessories listed in the foregoing Package Contents.

  • Page 17: Software Installation

    Software Installation In this manual, "User" refers to whoever has access to the Network Camera, and "Administrator" refers to the person who can configure the Network Camera and grant user access to the camera. After hardware connection checking, the users can run the Installation Wizard program included in the product CDROM to automatically search for the Network Camera in the Intranet.
  • Page 18 2. Do not check the box if user would like to check the hardware installation settings, Otherwise click “Skip the hardware installation” to skip the hardware connection checking, the program will automatically search for the Network Camera in the Intranet. Click “Start”...
  • Page 19 - 10 -...
  • Page 20 3. Select the Network Camera from the survey list and enter the user name and password. The user name and password are assigned as “admin/admin”. - 11 -...
  • Page 21 4. Setting the Network Camera IP address User can either select simple mode or professional mode for network camera IP setting. If simple mode is selected, the easy configuration program will set up the connection automatically. If professional mode is selected, the user will need to configure the IP manually, The DHCP setting is recommended.
  • Page 22 - 13 -...
  • Page 23 5. After finish setting, the connection successful or fail showed. If connection failed, user can either try again or quit the installation. User can either select “Run PC-NVR” or "Start Web GUI" to continue or click “X” on the top right of the screen to finish the installation. Once installation is completed, the Administrator should proceed to the next section "Access to the Network Camera"...

  • Page 24: Access To The Network Camera

    Access to the Network Camera Check Network Settings The Network Camera can be connected either before or immediately after software installation onto the Local Area Network. The Administrator should complete the network settings on the configuration page, including the correct subnet mask and IP address of gateway and DNS.

  • Page 25: Authentication

    Authentication After opening the Web browser and typing in the URL of the Network Camera, a dialogue window pops up to request a username and password. The user name and password for the Administrator are assigned as “admin/admin”. Upon successful authentication, the following figure is displayed.

  • Page 26: Installing Plug-In

    Installing plug-in For the initial access to the Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera on the Internet Explorer. Permission request depends on the Internet security settings of the user’s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt.

  • Page 27: Live View

    Live View Live View is the default page that opens when accessing the Network Camera. Live video is displayed directly in the browser window. Stream1/Stream2 Channels The network camera offers simultaneous dual stream for optimized quality and bandwidth. To configure codec compression video...
  • Page 28 UDP - This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken. Activate UDP connection when occasions require time-sensitive responses and the video quality is less important.
  • Page 29 Real Size - click this button to view the object in real size. Press this button again to switch back to normal mode. Full Screen - Click this button to switch to full screen mode. Press “Esc” key to switch back to normal mode. Motion Detection Alert - Click this button to enable motion detection alert function.

  • Page 30: Configuration

    Configuration Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. Camera/Video/Audio Camera Camera Setting Brightness - Drag the slider bar to adjust the image brightness level, which ranges from -5 to Contrast - Drag the slider bar to adjust the image contrast level, which ranges from -5 to +5.
  • Page 31 Environment - User can look for a place that best suits your needs, either outdoor or indoor. Flicker-Free - While flicker-free technology eliminates the problem of flicker, it can cause slight judder on fast moving images or blurring problems; fast scrolling text for example may blur.

  • Page 32: Video

    Video You can set up two separate streams for the Network Camera for different viewing devices. Stream 1 & Stream 2 Video Codec - The Network Camera offers three choices of video codec standards for real-time viewing: H.264, MPEG-4 and MJPEG. Video Resolution - Select from the drop down list to choose the best resolution that fit your need.
  • Page 33 However, high bitrate may cost high network bandwidth resources. The video qualities are selectable at the following settings: SoSo, OK, Not Bad, Medium, Standard, and Good. HTTP Transport - Enable to use HTTP protocol for video/audio communication. Click Apply or Reset to take effect. Video Overlay Video Overlay - Check to enable the timestamp function and select display position from the drop-down list if user wants date and time to be shown on the screen of the live video.
  • Page 34 RTSP Server To utilize RTSP authentication, make sure that you have set a password for the Network Camera first. RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default the port number is set to 554. Authentication - Depending on your network security requirements, the Network Camera provides two types of security settings for streaming via RTSP protocol: NONE and DIGEST.

  • Page 35: Audio

    Audio You can set up two separate streams for the Network Camera for different viewing devices. User can either enable or disable the audio function. If audio enable is selected, select the Audio codec from the drop down list. Advanced Echo cancellation Enabled: Enable to avoid an echo.

  • Page 36: Multicast

    Multicast Multicast addressing is a network technology for the delivery of information to a group of destinations simultaneously using the most efficient strategy to deliver the messages over each link of the network only once, creating copies only when the links to the multiple destinations split.

  • Page 37: Network

    Network IP Setting This section explains how to configure wired network connection for the Network Camera. There are several ways to setup the Network Camera over the Internet. The first way is to obtain an available dynamic IP address assigned by a DHCP server. The second way is to utilize a static The third way is to use PPPoE.

  • Page 38: Upnp

    UPnP Only UPnP discovery supported. Enable this function to allow the user to search for devices of interest on the network. Enter the UPnP name as you wish to show on the intranet. Click Apply or Reset to take effect. DDNS (dynamic domain name service) DynDNS - Enable the DDNS service allows your Network Camera, especially when assigned with a dynamic IP address, to have a fixed host and domain name.
  • Page 39 TZO - TZO is one kind of the DDNS providers. User can refer to the TZO.com: visit http://www.tzo.com/ to apply a dynamic domain account when selecting this DDNS provider. Enter the e-mail address, password and domain name when enabled the TZO. Click Apply or Reset to take effect.

  • Page 40: Wireless

    Wireless devices have a default wireless network name or Service Set Identifier (SSID) set by the factory. Brickcom wireless products use Brickcom as the default wireless network name. You should change the wireless network name to something unique to distinguish your wireless...
  • Page 41 uses dynamic key encryption. To protect the information as it passes over the airwaves, you should enable the highest level of encryption supported by your network equipment. Select the security method for your wireless network. If you do not want to use wireless security, keep the default, Disabled.
  • Page 42 WEP is a basic encryption method that is not as secure as WPA. Tx Key - Select a key from the drop-down menu. WEP Encryption - Select a level of WEP encryption, 64 bits 10 hex digits or 128 bits 26 hex digits.
  • Page 43 Site Survey SSID Broadcast, when wireless clients survey the local area for wireless networks to associate with, they will detect the SSID broadcast of the camera. WPA-Personal WPA supports two encryption methods, TKIP and AES, with dynamic encryption keys. Select the type of algorithm, TKIP or AES.
  • Page 44 WPA2-Personal WPA2 supports AES encryption methods with dynamic encryption keys. Shared Key - Enter the key shared between the Router and the server keys. Enter a passphrase of 8-63 characters. NOTE: If you are using WPA or WPA2, each device in your wireless network MUST use the same WPA or WPA2 method and shared key, or else the network will not function properly.

  • Page 45: Advanced Settings

    Advanced Settings Network Mode - From this drop-down menu, you can select the wireless standards running on your network. If you have both Wireless-B, Wireless-G and Wireless-N (2.4GHz) devices in your network, keep the default setting, Mixed. If you have both Wireless-B, Wireless-G devices in your network, select BG-Mixed.

  • Page 46: Wi-Fi Protected Setup

    Wi-Fi Protected Setup Use this method if your client device has a Wi-Fi Protected Setup PIN number. 1. Enter the PIN number and SSID from the device in the field on the screen. Click Apply or Reset to take effect. - 37 -...

  • Page 47: Http/Https

    HTTP/HTTPS HTTP - This protocol allows the same quality as TCP protocol without needing to open specific ports for streaming under some network environments. Users inside a firewall can utilize this protocol to allow streaming data through. HTTPS - (Hypertext Transfer Protocol over SSL): This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer).

  • Page 48: Event

    Event Motion Detection Motion can be detected by measuring change in speed or vector of an object or objects in the field of view. This section explains how to configure the Network Camera to enable motion detection. There are three motion detection windows can be configured. Detection Setting - Select and enable the motion detection windows function.

  • Page 49: Notification Setting

    Notification - To react in response to particular events. A typical application is that when a motion is detected, the Network Camera sends buffered images to a FTP server, Samba, SMTP or HTTP as notifications. In this page, you can specify which notification messages will be sent when a trigger is activated.
  • Page 50 Click Apply or Reset to take effect. SMTP - Select to send the media files via Email when a trigger is activated. From - Enter the email address of the sender. To - Enter the email address of the recipient. Many recipients are separated by commas. My name - The title shown in the email.
  • Page 51 Click Apply or Reset to take effect. Samba - Select to send the network file system media files via network neighborhood when a trigger is activated. IP Address - Enter the IP address of the samba server. User Name - Enter the user name of the samba server. Password - Enter the password of the samba server.
  • Page 52 HTTP - Select to send the HTTP notification when a trigger is activated URL – Specify the URL to send HTTP requests, the URL is normally written as follows: http://ip_address/ notification.cgi?parameter ip_address – type the IP address or host name of the host to which you want to connect. Parameter –...

  • Page 53: Scheduled Event

    Scheduled Event Click New to open the recording setting page. In this page, you can define the recording schedule and recording capacity. Name - Enter a descriptive name for the recording setting. Event - Select from the drop-down menu for the recording or rebooting event. Time - Specify the recording duration.

  • Page 54: Pir

    Enable PIR sensor to detect a moving infrared object such as a person in the dark. Sensitivity - is used to adjust the sensitivity of the PIR Sensor from 10 - 100%. The default sensitivity is 50%. By increasing the sensitivity, the range of the PIR Sensor is also increased. The PIR Sensor can be configured to detect movement in the dark up a maximum range of 6 meters.

  • Page 55: System

    System System Log Log - To send a system log to the network camera when a trigger is activated. This page displays the system’s log in chronological order. The system log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain amount. Click Retrieve to retrieve the log, or click Save to file to save the file in the specify location.
  • Page 56 NTP - Select to update the time with the NTP server on hourly, daily, weekly, or monthly basis. Time Zone - According to your local time zone, select one from the drop-down list. NTP Server 1 and Server 2 - Enter the address of the NTP server. Daylight Saving - Enable this option to retain the Daylight Saving Time changes automatically.

  • Page 57: Device Information

    Device Information Video/Audio Setting - To view the entire video/audio setting information about the network camera. Network Setting - To view the entire network setting information about the network camera. System Information - To view the entire system information about the network camera. - 48 -...
  • Page 58 Storage Management - To view the entire recorded files in SD card. Click Remove to safely remove the storage device. Click Reload to view the list. - 49 -...

  • Page 59: Maintenance

    Maintenance User Management This section explains how to enable password protection and create multiple accounts. Privilege Setting - Enter the new user’s name and password. Select the privilege for new user account. Click Add to take effect. The administrator account name is “admin”, which is permanent and can not be deleted.

  • Page 60: Ip Filter

    IP Filter IP Filter - Enable the IP filter and set of allow or deny IP address range to server. Click Add to list to add the IP range to the IP filter list. Click Apply or Reset to take effect. Firmware Upgrade This feature allows you to upgrade the firmware on your Network Camera.

  • Page 61: Configuration

    Configuration This feature allows you to export/import the configuration files of the network camera. Import/Export - Click export to pop up a dialog to indicate the location and file to export. Click browse to indicate the location and file of the camera configuration and click import to import the configuration file back into the network camera.

  • Page 62: Fcc Caution

    FCC Caution This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions; (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operations.

  • Page 63: Brickcom Ipcam Http Api

    Preface This document specifies the Brickcom IPCAM HTTP API which enables applications to access and/or configure the IP Cameras manufactured by Brickcom over a TCP/IP capable network. Developers who wish to write their own utility should follow the API specification herein.

  • Page 64: Http Api Transaction

    HTTP API Transaction An HTTP API transaction is always started with a request from a client application, which is received by the Web server on the IP Camera device and processed by the IP Camera and finally ends with a response sent back to the requesting client. The client HTTP request takes in either one of the two forms: HTTP GET: Normally used to retrieve the settings or status of the IP Camera HTTP POST: Normally used to configure the settings of the IP Camera...
  • Page 65 Server response HTTP/1.0 200 OK … Error Response If the IP Camera is unable to handle the client HTTP API request due to certain conditions such as system busy, incorrect parameters, or any other reason, an appropriate HTTP status code 400 Bad Request is returned accompanied with an error code and error string that explains the failure.

  • Page 66: Api Categories

    API Categories The API categories are listed in the table below. Table 1, API Categories API Category Description Streaming Enable users to set/get the setting about multimedia streaming. Camera Enable users to set/get the camera/lens setting. Audio Enable user to set/get the audio devices’ setting. Network Enable users to set/get the network setting.

  • Page 67: Streaming Api

    Streaming API Streaming API allows applications to 1) set/get the IP Camera streaming setting 2) help users to view video streaming Data structures Data Structure Description SVideoFormatSetting The selected video codec format, encode rate, etc. SAudioFormatSetting The selected audio codec format, encode rate, etc. STransportSetting The selected network transport.
  • Page 68 kbps_8000 = 8000, kbps_10000 = 10000, kbps_12000 = 12000, kbps_15000 = 15000, /* SVideoFormatSetting */ typedef struct _videoFormatSetting { int sourceDevice; // reserved char codecType [16]; char codecSubType [16]; int constantBitrate; // 0:enabled 1:disabled int bitrateInKbps; // Kbps int resolutionWidth; int resolutionHeight;...
  • Page 69 /* STransportSetting */ typedef struct _transportSetting { int multicastEnabled; char multicastAddress[16]; int multicastPort; int ttl; // 0-255 } STransportSetting; /* SVideoSessionSetting */ typedef struct _videoSessionSetting { int enabled; SVideoFormatSetting format; STransportSetting transport; } SVideoSessionSetting; /* SAudioSessionSetting */ typedef struct _audioSessionSetting { int enabled;...
  • Page 70 int index; // (Unique) 0: reserved. 1+: valid index char name[16]; int transportType; SVideoSessionSetting video; SAudioSessionSetting audio; SMetaSessionSetting meta; } SChannelSetting; /* SChannelSetting */ enum _TransportType { TRANSPORT_TYPE_RTSP_RTP=0, TRANSPORT_TYPE_RTP_ONLY=1, TRANSPORT_TYPE_HTTP=2, TRANSPORT_TYPE_MSN=3, typedef struct _channelSetting { int enabled; int index; // (Unique) 0: reserved. 1+: valid index char name[16];...

  • Page 71: Getchannels

    ActionEvents ActionEvent Description getChannels Get all available channels getChannel Get a channel info addChannel Add a new channel updateChannel Update an existing channel updateChannels Update all existing channels deleteChannel Delete a channel getStream Request to receive a RTSP streaming session 1.1 getChannels ActionEvent: getChannels Request...

  • Page 72: Getchannel

    CH1.audio.format.codecType= CH1.audio.format.codecSubType= CH1.audio.transport.multicastEnabled= CH1.audio.transport.multicastAddress= CH1.audio.transport.multicastPort= CH1.audio.transport.ttl= CH1.meta.enabled= CH1.meta.format.mdAlarmEnabled= CH1.meta.transport.multicastEnabled= CH1.meta.transport.multicastAddress= CH1.meta.transport.multicastPort= CH1.meta.transport.ttl= Ch2.index=2 …. Comment Method 1.2 getChannel ActionEvent: getChannel Request http://<IP>/cgi-bin/channels.cgi?action=getChannel&index=<index> Response enabled= name= transportType= video.enabled= video.format.codecType= video.format.codecSubType= video.format.constantBitrate= video.format.bitrateInKbps= video.format.resolutionWidth= video.format.resolutionHeight= video.format.frameRate= - 63 -...

  • Page 73: Addchannel

    video.format.gop= video.format.quality= video.transport.multicastEnabled= video.transport.multicastAddress= video.transport.multicastPort= video.transport.ttl= audio.enabled= audio.format.codecType= audio.format.codecSubType= audio.transport.multicastEnabled= audio.transport.multicastAddress= audio.transport.multicastPort= audio.transport.ttl= meta.enabled= meta.format.mdAlarmEnabled= meta.transport.multicastEnabled= meta.transport.multicastAddress= meta.transport.multicastPort= meta.transport.ttl= Comment Method 1.3 addChannel ActionEvent: addChannel Request http://<IP>/cgi-bin/channels.cgi action=add index=<index> enabled= name= transportType= video.enabled= video.format.codecType= video.format.codecSubType= video.format.constantBitrate= video.format.bitrateInKbps= video.format.resolutionWidth= - 64 -...
  • Page 74 video.format.resolutionHeight= video.format.frameRate= video.format.gop= video.format.quality= video.transport.multicastEnabled= video.transport.multicastAddress= video.transport.multicastPort= video.transport.ttl= audio.enabled= audio.format.codecType= audio.format.codecSubType= audio.transport.multicastEnabled= audio.transport.multicastAddress= audio.transport.multicastPort= audio.transport.ttl= meta.enabled= meta.format.mdAlarmEnabled= meta.transport.multicastEnabled= meta.transport.multicastAddress= meta.transport.multicastPort= meta.transport.ttl= Response Comment Method POST - 65 -...

  • Page 75: Updatechannel

    1.4 updateChannel ActionEvent: updateChannel Request http://<IP>/cgi-bin/channels.cgi action=update index=<index> enabled= name= transportType= video.enabled= video.format.codecType= video.format.codecSubType= video.format.constantBitrate= video.format.bitrateInKbps= video.format.resolutionWidth= video.format.resolutionHeight= video.format.frameRate= video.format.gop= video.format.quality= video.transport.multicastEnabled= video.transport.multicastAddress= video.transport.multicastPort= video.transport.ttl= audio.enabled= audio.format.codecType= audio.format.codecSubType= audio.transport.multicastEnabled= audio.transport.multicastAddress= audio.transport.multicastPort= audio.transport.ttl= meta.enabled= meta.format.mdAlarmEnabled= meta.transport.multicastEnabled= meta.transport.multicastAddress= meta.transport.multicastPort= meta.transport.ttl= - 66 -...

  • Page 76: Updatechannels

    Response Comment Method POST 1.5 updateChannels ActionEvent: updateChannels http://<IP>/cgi-bin/channels.cgi Request action=updateAll c1Enable=& c1Name=& c1TransportType=& c1VideoEnabled=& c1VideoFormatCodecType=& c1VideoFormatCodecSubType=& c1VideoFormatConstantBitrate=& c1VideoFormatBitrateInKbps =& c1VideoFormatResolutionWidth=& c1VideoFormatResolutionHeight=& c1VideoFormatFrameRate=& c1VideoFormatGop=& c1VideoFormatQuality =& c1VideoTransportMulticastEnabled=& c1VideoTransportMulticastAddress=& c1VideoTransportMulticastPort=& c1VideoTransportTtl=& c1AudioEnabled=& c1AudioFormatCodecType=& c1AudioFormatCodecSubType =& c1AudioTransportMulticastEnabled=& c1AudioTransportMulticastAddress=& c1AudioTransportMulticastPort=& c1AudioTransportTtl=& c1MetaEnabled=& c1MetaFormatMdAlarmEnabled =& c1MetaTransportMulticastEnabled=&...

  • Page 77: Getstream

    c1MetaTransportMulticastAddress=& c1MetaTransportMulticastPort=& c1MetaTransportTtl=& c2Enable=&……. Response Comment Method POST ActionEvent: deleteChannel Request http://<IP>/cgi-bin/channels.cgi action=delete&index=<index> Response Comment Method POST 1.6 getStream ActionEvent: getStream Request rtsp://<IP>/channel<index> Response Comment <Index> is the index number of the SChannelSetting. Method - 68 -...

  • Page 78: Camera Api

    Camera API Camera API allows applications to set/get the Camera/lens setting. Data structures Data Structure Description SWhiteBalanceSetting White balance setting of the Camera SBrightnessSetting Brightness setting of the Camera SColorSaturationSetti Color Saturation setting of the Camera SMirrorFlipSetting MirrorFlip setting of the Camera SSharpnessSetting Sharpness setting of the Camera SContrastSetting...
  • Page 79 /* SExposureSetting */ typedef struct _ExposureSetting { int mode; // enum AutoExposureMode } SExposureSetting; /* SWhiteBalanceSetting */ typedef struct _whiteBalanceSetting { int mode; // enum WhiteBalanceMode int level; } SWhiteBalanceSetting; /* SBrightnessSetting */ typedef struct _brightnessSetting { int level; } SBrightnessSetting; /* SColorSaturationSetting */ typedef struct _colorSaturationSetting { int level;...
  • Page 80 FREQ_60HZ=0, FREQ_50HZ, /* SFrequencySetting */ typedef struct _frequencySetting int freq; // 60Hz : 0 , 50Hz : 1 } SFrequencySetting; enum SpecialEffectMode { EFFECT_MODE_DISABLED=0, EFFECT_MODE_NEGATIVE, EFFECT_MODE_BLACKWHITE, enum IndoorOutdoorMode { MODE_OUTDOOR=0, MODE_INDOOR, typedef struct _effectSetting int effectMode; // enum SpecialEffectMode } SEffectSetting; typedef struct _EnvModeSetting int envMode;...
  • Page 81 typedef struct _IRCutFilterSetting { int mode; // enum IRCutMode int thresholdLevel; // (reserved) 0-100 } SIRCutFilterSetting; /* SIRLEDSetting */ enum IRLEDMode { IRLED_OFF=0, IRLED_ON, IRLED_MODE_AUTO, typedef struct _IRLEDSetting { int mode; // enum IRCutMode int thresholdLevel; // (reserved) 0-100 } SIRLEDSetting; /*SAutoIris*/ enum AutoIrisMode { AUTOIRIS_DISABLED=0,...
  • Page 82 UPLOAD_IMAGE, typedef struct _OsdPalette { int y; //Range:0~255 int Cb; //Range:0~255 int Cr; //Range:0~255 } SOsdPalette; typedef struct _OsdWindow { int x; //Range:depends on resolution int y; //Range:depends on resolution int transparent;//Range:0~3 } SOsdWindow; /* SVideoOverlaySetting */ typedef struct _VideoOverlaySetting { int useTimestamp;...

  • Page 83: Setwhitebalance

    setMirrorFlip Set MirrorFlip getMirrorFlip Get MirrorFlipof setSharpness Set Sharpness getSharpness Get Sharpness setContrast Set Contrast getContrast Get Contrast setFrequency Set Frequency getFrequency Get Frequency setEffect Set Effect getEffect Get Effect setEnvMode Set EnvMode getEnvMode Get EnvMode setIRCutFilter Set IR cut Filter getIRCutFilter Get IR cut filter setIRLED...

  • Page 84: Getwhitebalance

    2.2 getWhiteBalance ActionEvent: getWhiteBalance Request http://<IP>/cgi-bin/camera.cgi?action=getWhiteBalance Response mode= level= Comment Method 2.3 setBrightness ActionEvent: setBrightness Request http://<IP>/cgi-bin/camera.cgi action= setBrightness level= Response Comment Method POST 2.4 getBrightness ActionEvent: getBrightness Request http://<IP>/cgi-bin/camera.cgi?action=getBrightness Response level= Comment Method - 75 -...

  • Page 85: Setcolorsaturation

    2.5 setColorSaturation ActionEvent: setColorSaturation Request http://<IP>/cgi-bin/camera.cgi action= setColorSaturation level= Response Comment POST Method 2.6 getColorSaturation ActionEvent: getColorSaturation Request http://<IP>/cgi-bin/camera.cgi?action=getColorSaturation Response level= Comment Method 2.7 setMirrorFlip ActionEvent: setMirrorFlip Request http://<IP>/cgi-bin/camera.cgi action= setMirrorFlip mirrorEnabled = flipEnabled= Response Comment Method POST - 76 -...

  • Page 86: Getmirrorflip

    2.8 getMirrorFlip ActionEvent: getMirrorFlip Request http://<IP>/cgi-bin/camera.cgi?action= getMirrorFlip Response flipEnabled= mirrorEnabled = Comment Method 2.9 setSharpness ActionEvent: setSharpness http://<IP>/cgi-bin/camera.cgi Request action= setSharpness level= Response Comment POST Method 2.10 getSharpness ActionEvent: getSharpness Request http://<IP>/cgi-bin/camera.cgi?action=getSharpness Response level= Comment Method - 77 -...

  • Page 87: Setcontrast

    2.11 setContrast ActionEvent: setContrast Request http://<IP>/cgi-bin/camera.cgi action=setContrast level= Response Comment POST Method 2.12 getContrast ActionEvent: getContrast Request http://<IP>/cgi-bin/camera.cgi?action=getContrast Response level= Comment Method 2.13 setFrequcny ActionEvent: setFrequcny Request http://<IP>/cgi-bin/camera.cgi action=setFrequency freq = Response Comment Method POST - 78 -...

  • Page 88: Getfrequency

    2.14 getFrequency ActionEvent: getFrequency Request http://<IP>/cgi-bin/camera.cgi?action=getFrequency Response freq= Comment Method 2.15 setEffect ActionEvent: setEffect Request http://<IP>/cgi-bin/camera.cgi action=setEffect effectMode = Response Comment Method POST 2.16 getEffect ActionEvent: getEffect Request http://<IP>/cgi-bin/camera.cgi?action=getEffect Response effectMode= Comment Method - 79 -...

  • Page 89: Setenvmode

    2.17 setEnvMode ActionEvent: setEnvMode Request http://<IP>/cgi-bin/camera.cgi action=setEnvMode envMode = Response Comment POST Method 2.18 getEnvMode ActionEvent: getEnvMode Request http://<IP>/cgi-bin/camera.cgi?action=getEnvMode Response envMode= Comment Method 2.19 setIRCutFilter ActionEvent: setIRCutFilter Request http://<IP>/cgi-bin/camera.cgi action=setIRCutFilter mode= thresholdLevel= Response Comment Method POST - 80 -...

  • Page 90: Getircutfilter

    2.20 getIRCutFilter ActionEvent: getIRCutFilter Request http://<IP>/cgi-bin/camera.cgi?action=getIRCutFilter Response mode= thresholdLevel= Comment Method 2.21 setIRLED ActionEvent: setIRLED Request http://<IP>/cgi-bin/camera.cgi action=setIRLED mode= thresholdLevel= Response Comment POST Method 2.22 getIRLED ActionEvent: getIRLED Request http://<IP>/cgi-bin/camera.cgi?action=getIRLED Response mode= thresholdLevel= Comment Method - 81 -...

  • Page 91: Setvideooverlay

    2.23 setVideoOverlay ActionEvent: setVideoOverlay Request http://<IP>/cgi-bin/camera.cgi action=setVideoOverlay useTimestamp= displayString= useImage= useText= osdPalette1.y= osdPalette1.Cb= osdPalette1.Cr= osdPalette2.y= osdPalette2.Cb= osdPalette2.Cr= osdWindow1.x= osdWindow1.y= osdWindow1.transparent= osdWindow2.x= osdWindow2.y= osdWindow2.transparent= Response Comment Method POST 2.24 getVideoOverlay ActionEvent: getVideoOverlay Request http://<IP>/cgi-bin/camera.cgi?action=getVideoOverlay Response useTimestamp= displayString= useImage= useText= osdPalette1.y= - 82 -...

  • Page 92: Setautoiris

    osdPalette1.Cb= osdPalette1.Cr= osdPalette2.y= osdPalette2.Cb= osdPalette2.Cr= osdWindow1.x= osdWindow1.y= osdWindow1.transparent= osdWindow2.x= osdWindow2.y= osdWindow2.transparent= Comment Method 2.25 setAutoIris ActionEvent: setAutoIris Request http://<IP>/cgi-bin/camera.cgi action= setAutoIris enabled Response Comment Method POST 2.26 getAutoIris ActionEvent: getAutoIris Request http://<IP>/cgi-bin/camera.cgi?action= getAutoIris enabled= Response Comment Method - 83 -...

  • Page 93: Setcamerasetting

    2.27 setCameraSetting ActionEvent: setCameraSetting http://<IP>/cgi-bin/camera.cgi Request action=setCameraSetting whiteBalance.mode=0 whiteBalance.level=0 brightness.level=1 colorSaturation.level=-1 flipEnabled=0 mirrorEnabled=0 sharpness.level=2 contrast.level=0 freq=0 effectMode=0 envMode=1 IRCutFilter.mode=2 IRCutFilter.thresholdLevel=0 IRLED.mode=2 IRLED.thresholdLevel=0 autoIris.enabled=1 videoOverlay.useTimestamp=1 videoOverlay.displayString=HELLO videoOverlay.useImage=0 videoOverlay.useText= videoOverlay.osdPalette1.y=255 videoOverlay.osdPalette1.Cb=128 videoOverlay.osdPalette1.Cr=128 videoOverlay.osdPalette2.y=16 videoOverlay.osdPalette2.Cb=128 videoOverlay.osdPalette2.Cr=128 videoOverlay.osdWindow1.x=0 videoOverlay.osdWindow1.y=13 videoOverlay.osdWindow1.transparent=0 videoOverlay.osdWindow2.x=0 videoOverlay.osdWindow2.y=0 videoOverlay.osdWindow2.transparent=0 - 84 -...

  • Page 94: Getcamerasetting

    Response Comment Method POST 2.28 getCameraSetting ActionEvent: getCameraSetting Request http://<IP>/cgi-bin/camera.cgi?action=getCameraSetting Response whiteBalance.mode=0 whiteBalance.level=0 brightness.level=1 colorSaturation.level=-1 flipEnabled=0 mirrorEnabled=0 sharpness.level=2 contrast.level=0 freq=0 effectMode=0 envMode=1 IRCutFilter.mode=2 IRCutFilter.thresholdLevel=0 IRLED.mode=2 IRLED.thresholdLevel=0 autoIris.enabled=1 videoOverlay.useTimestamp=1 videoOverlay.displayString=HELLO videoOverlay.useImage=0 videoOverlay.useText= videoOverlay.osdPalette1.y=255 videoOverlay.osdPalette1.Cb=128 videoOverlay.osdPalette1.Cr=128 videoOverlay.osdPalette2.y=16 videoOverlay.osdPalette2.Cb=128 videoOverlay.osdPalette2.Cr=128 videoOverlay.osdWindow1.x=0 videoOverlay.osdWindow1.y=13 videoOverlay.osdWindow1.transparent=0 - 85 -...
  • Page 95 videoOverlay.osdWindow2.x=0 videoOverlay.osdWindow2.y=0 videoOverlay.osdWindow2.transparent=0 Comment Method - 86 -...

  • Page 96: Audio Api

    Audio API Audio API allows applications to 1) set/get the audio device setting 2) set/get the audio volume of the device Data structures Data Structure Description SAudioDeviceSetting Basic audio device setting /* SAudioDeviceSetting */ typedef struct _audioDeviceSetting { int muted; // True (muted), False (un-muted) int level;...

  • Page 97: Setaudiodevice

    3.1 setAudioDevice ActionEvent: setAudioDevice http://<IP>/cgi-bin/audio.cgi Request action=setAudioDevice muted= level = voiceSource = Response Comment Method POST 3.2 getAudioDevice ActionEvent: getAudioDevice Request http://<IP>/cgi-bin/ audio.cgi?action=getAudioDevice Response muted = level = voiceSource = Comment Method 3.3 setAudioMuteState ActionEvent: setAudioMuteState Request http://<IP>/cgi-bin/audio.cgi action=setAudioMuteState muted= Response Comment Method...

  • Page 98: Getaudiomutestate

    3.4 getAudioMuteState ActionEvent: getAudioMuteState Request http://<IP>/cgi-bin/audio.cgi?action=getAudioMuteState Response muted= Comment Method 3.5 setAudioVolume ActionEvent: setAudioVolume Request http://<IP>/cgi-bin/audio.cgi action=setAudioVolume level= Response Comment Method POST 3.6 getAudioVolume ActionEvent: getAudioVolume Request http://<IP>/cgi-bin/audio.cgi?action=getAudioVolume Response level= Comment Method - 89 -...

  • Page 99: Network Api

    Network API Network API allows applications to set/get the network-related settings including IP address, WIFI network, etc. Data structures Data Structure Description SBasicNetworkSetting Basic network setting such as IP address, netmask, etc. SUPnPSetting UPnP setting for SSDP advertisement SDDNSSetting DDNS setting SEthernetSetting Ethernet (802.3?) setting SWIFISetting...
  • Page 100 typedef struct _BasicNetworkSetting int addressType; // enum NetAddressType char ipv4Address[16]; char subnetMask[16]; char gatewayAddress[16]; char dnsAddress1[16]; char dnsAddress2[16]; SDHCPSetting dhcp; SPPPoESetting pppoe; // TBD: IPv6, …. } SBasicNetworkSetting; /* SUPnPSetting */ typedef struct _UPnPSetting { int enabled; char upnpName[128]; } SUPnPSetting; /* SDDNSSetting */ enum ddnsServerType{ DYNDNS = 0,...
  • Page 101 } SDDNSSetting; /* SEthernetSetting */ enum EthernetMediaType { ETHER_MEDIA_TYPE_AUTO=0, ETHER_MEDIA_TYPE_10_HALF_DUPLEX, ETHER_MEDIA_TYPE_10_FULL_DUPLEX, ETHER_MEDIA_TYPE_100_HALF_DUPLEX, ETHER_MEDIA_TYPE_100_FULL_DUPLEX, ETHER_MEDIA_TYPE_1000_FULL_DUPLEX, typedef struct _EthernetSetting { Int mediaType; // enum EthernetMediaType } SEthernetSetting; /* SWIFISetting */ enum WIFIWPA_algorithmType { WL_TKIP=0, WL_AES, WL_TKIP_AES, enum WIFIWEP__authenticationType { WL_OPEN=0, WL_SHARED, WL_WEPAUTO, enum WIFISecurityMode { WL_NONE=0, WL_WEP,...
  • Page 102 enum WIFIAccessMode { WIFI_ACCESS_MODE_INFRASTRUCTURE=0, WIFI_ACCESS_MODE_ADHOC, enum WIFIOperationMode { WIFI_OP_MODE_AUTO=0, WIFI_OP_MODE_11G_ONLY, WIFI_OP_MODE_11B_ONLY, WIFI_OP_MODE_11N_ONLY, WIFI_OP_MODE_11BG_MIXED, WIFI_OP_MODE_11GN_MIXED, WIFI_OP_MODE_11BGN_MIXED, enum WIFIPreambleType { WIFI_PREAMBLE_TYPE_LONG=0, WIFI_PREAMBLE_TYPE_SHORT, enum WIFIAuthenticationType { WIFI_AUTHENTICATION_TYPE_OPEN=0, WIFI_AUTHENTICATION_TYPE_SHARED_KEY, enum WIFIchannelBandWidth { FORTY_MHZ=0, TWENTY_MHZ, enum WIFIWPSMode { NONE=0, PIN, PBC, - 93 -...
  • Page 103 typedef struct _SSWPS { int WPSMode; // enum WIFIWPSMode char PINCode[64]; }SWPS; typedef struct _SSWPA { int algorithmType; // enum WIFIWPA_algorithmType char sharedKey[64]; }SWPA; typedef struct _SSKeyentry { char encryptionKey[64]; }SKeyentry; typedef struct _SSEncryptionKeyList { int size; SKeyentry keyEntry[4]; }SEncryptionKeyList; typedef struct _SSWEP { int authenticationType;...
  • Page 104 //authenticationMethod enum IEEE_802_1x_authenticationMethod { WL_MSCHAP=0, WL_MSCHAPV2, WL_PAP, WL_EAP_MD5, //innerEAPProtocolType enum IEEE_802_1x_innerEAPProtocolType { WL_INNER_EAP_TLS=0, WL_EAP_OTP, typedef struct _IEEE_802_1xSetting { int enabled; int authenticationProtocolType; //enum authenticationProtocolType int innerTTLSAuthenticationMethod; //enum authenticationMethod int innerEAPProtocolType;//enum innerEAPProtocolType int validateServerEnabled; char userName[65]; char password[65]; char anonymousID[65]; int autoPACProvisioningEnabled; int caline;...
  • Page 105 int channelBandWidth; // enum WIFIchannelBandWidth int securityMode; // enum WIFISecurityMode SWEP WEP; SWPA WPA; SWPS WPS; SIEEE_802_1xSetting wl_802_1x; } SWIFISetting; enum IPFilterPermissionType { Deny=0, Allow, typedef struct _SSFilterAddressEntry { int enabled; char startIP[16]; char endIP[16]; }SFilterAddressEntry; typedef struct _SSFilterAddressList { int size;...

  • Page 106: Setbasicnetwork

    setUPnP Set UPnP setting getUPnP Get UPnP setting setDDNS Set DDNS setting getDDNS Get DDNS setting setEthernet Set Ethernet setting getEthernet Get Ethernet setting setWIFI Set WIFI setting getWIFI Get WIFI setting setIPFilter Set IPFilter setting getIPFilter Get IPFilter setting 4.1 setBasicNetwork ActionEvent: setBasicNetwork http://<IP>/cgi-bin/basicNetwork.cgi...

  • Page 107: Getbasicnetwork

    4.2 getBasicNetwork ActionEvent: getBasicNetwork Request http://<IP>/cgi-bin/basicNetwork.cgi?action=get Response addressType= (0=Static,1=DHCP, 2=PPPoE) ipv4Address= subnetMask= gatewayAddress= dnsAddress1= dnsAddress2= pppoe.username= pppoe.password= Comment Method 4.3 setUPnP ActionEvent: setUPnP http://<IP>/cgi-bin/upnp.cgi Request action=set enabled= name= Response Comment Method POST 4.4 getUPnP ActionEvent: getUPnP Request http://<IP>/cgi-bin/upnp.cgi?action=get Response enabled= name= Comment Method...

  • Page 108: Setddns

    4.5 setDDNS ActionEvent: setDDNS http://<IP>/cgi-bin/ddns.cgi Request action=set dyndnsEnabled= dyndns.wildcardEnabled= dyndns.username= dyndns.password= dyndns.hostname= tzodnsEnabled= tzodns.wildcardEnabled= tzodns.username= tzodns.password= tzodns.hostname= Response Comment Method POST - 99 -...

  • Page 109: Getddns

    4.6 getDDNS ActionEvent: getDDNS Request http://<IP>/cgi-bin/ddns.cgi? action=get Response dyndnsEnabled=0 dyndns.wildcardEnabled= dyndns.username= dyndns.password= dyndns.hostname= tzodnsEnabled= tzodns.wildcardEnabled= tzodns.username= tzodns.password= tzodns.hostname= Comment Method 4.7 setEthernet ActionEvent: setEthernet Request http://<IP>/cgi-bin/ethernet.cgi action=set mediaType= Response Comment Method POST - 100 -...

  • Page 110: Getethernet

    4.8 getEthernet ActionEvent: getEthernet Request http://<IP>/cgi-bin/ethernet.cgi?action=get Response mediaType= Comment Method 4.9 setWIFI ActionEvent: setWIFI Request http://<IP>/cgi-bin/wifi.cgi action=set enabled= mode= operationMode= channel= SSID= preamble= rtsThreshold= fragmentationThreshold= authentication= channelBandWidth= securityMode= WEP. authenticationType= WEP. defaultTransmitKeyIndex = WEP. wepKeyLength = WEP. encryptionKeyList. Keyentry1.encryptionKey= WEP. encryptionKeyList. Keyentry2.encryptionKey= WEP.

  • Page 111: Getwifi

    Response Comment Method POST 4.10 getWIFI ActionEvent: getWIFI Request http://<IP>/cgi-bin/wifi.cgi? action=get Response enabled= mode= operationMode= channel= SSID= preamble= rtsThreshold= fragmentationThreshold= authentication= channelBandWidth= securityMode= (a.) securityMode=0 return Nothing!! (b.) securityMode=1 WEP. authenticationType= WEP. defaultTransmitKeyIndex = WEP. wepKeyLength= WEP. encryptionKeyList.Keyentry1.encryptionKey= WEP. encryptionKeyList.Keyentry2.encryptionKey= WEP.

  • Page 112: Setipfilter

    WPS.WPSMode= WPS.PINCode Comment Method 4.11 setIPFilter ActionEvent: setIPFilter Request http://<IP>/cgi-bin/IPFilter.cgi action=set permissionType= enabled= allow.enabled1= allow.startIP1= allow.endIP1= allow.enabled2= allow.startIP2= allow.endIP2= ……. deny.enabled1= deny.startIP1= deny.endIP1= deny.enabled2= deny.startIP2= deny.endIP2= Response Comment Method POST - 103 -...

  • Page 113: Getipfilter

    4.12 getIPFilter ActionEvent: getIPFilter Request http://<IP>/cgi-bin/ IPFilter.cgi? action=get Response enabled= permissionType= allow.size= allow.enabled1= allow.startIP1= allow.endIP1= allow.enabled2= allow.startIP2= allow.endIP2= ……. deny.size= deny.enabled1= deny.startIP1= deny.endIP1= deny.enabled2= deny.startIP2= deny.endIP2= Comment Method - 104 -...

  • Page 114: Storage Api (Tbd)

    Storage API (TBD) Storage API allows applications to configure the storage devices reachable by the IPCAM unit. Data structures Data Structure Description ActionEvents ActionEvent Description ActionEvent: Request http://<IP>/cgi-bin/stream. l?action= Response Comment Method - 105 -...

  • Page 115: System Api

    System API System API allows applications to configure miscellaneous system settings not covered by any other category. These settings include Time, Syslog, and etc. // NOTE: In the future, we may switch to rsyslog instead of syslogd. Data structures Data Structure Description SDeviceInfo IP Camera device info...
  • Page 116 /* STimeSetting */ enum TimeConfigType { TIME_CONFIG_TYPE_NONE=0, TIME_CONFIG_TYPE_MANUAL, TIME_CONFIG_TYPE_NTP, // TODO: TBD. enum TimeZoneID { TIME_ZONE_MIN, TIME_ZONE_KWAJALEIN, TIME_ZONE_SAMOA, TIME_ZONE_HAWAII, TIME_ZONE_ALASKA, TIME_ZONE_LOS_ANGELES, TIME_ZONE_PHOENIX, TIME_ZONE_MEXICO_CITY, TIME_ZONE_NEW_YORK, TIME_ZONE_SANTIAGO, TIME_ZONE_SAO_PAULO, TIME_ZONE_NORONHA_ISLAND, TIME_ZONE_PRAIA, TIME_ZONE_LONDON, TIME_ZONE_PARIS, TIME_ZONE_CAIRO, TIME_ZONE_MOSCOW, TIME_ZONE_DUBAI, TIME_ZONE_KARACHI, TIME_ZONE_DHAKA, TIME_ZONE_JAKARTA, TIME_ZONE_HONG_KONG, TIME_ZONE_TOKYO, TIME_ZONE_SYDNEY, TIME_ZONE_NOUMEA, TIME_ZONE_NewZealand, TIME_ZONE_MAX - 107 -...
  • Page 117 // Reserved for internal use... typedef struct _TimeZone { int id; // Time zone id. Char TZSyntax[128]; } STimeZone; typedef struct _TimeZoneList { int size; STimeZone timezone[60]; } STimeZoneList; typedef struct _ManualTimeSetting { int year; int month; int day; int hour; int minute;...
  • Page 118 // Note, these values are taken from manpage for syslog (3). enum LogPriority { SLOG_EMERG=0, // system is unusable SLOG_ALERT, // action must be taken immediately SLOG_CRIT, // critical conditions SLOG_ERR, // error conditions SLOG_WARNING, // warning conditions SLOG_NOTICE, // normal, but significant, condition SLOG_INFO, // informational message SLOG_DEBUG,...

  • Page 119: Getdeviceinfo

    ActionEvents ActionEvent Description getDeviceInfo Get device info setTimeSetting Set time setting getTimeSetting Get time setting setSyslogSetting Set syslog setting getSyslogSetting Get syslog setting getSyslogFile Get syslog file. SyslogClear Clear syslog. getSystemStatus Get system status 5.1 getDeviceInfo ActionEvent: getDeviceInfo Request http://<IP>/cgi-bin/system.cgi?action=get Response chipVersion= sensorID=...

  • Page 120: Gettimesetting

    ================================================= type=1 enableDST= timezoneID= manual.year= manual.month= manual.day= manual.hour= manual.minute= manual.second= ================================================= type=2 enableDST= timezoneID= ntp.ntpServerLoc1= ntp.ntpServerLoc2= Response Comment Method POST 5.3 getTimeSetting ActionEvent: getTimeSetting Request http://<IP>/cgi-bin/time.cgi?action=get Response type= enableDST= timezoneID= manual.year= manual.month= manual.day= manual.hour= manual.minute= manual.second= enableDST= timezoneID= ntp.ntpServerLoc1= - 111 -...

  • Page 121: Setsyslogsetting

    ntp.ntpServerLoc2= Comment Method 5.4 setSyslogSetting ActionEvent: setSyslogSetting Request http://<IP>/cgi-bin/syslog.cgi action=set localLogLevel= useRemoteLog= addressingFormatType= remoteServerAddress= remoteServerPort= Response Comment Method POST 5.5 getSyslogSetting ActionEvent: getSyslogSetting Request http://<IP>/cgi-bin/syslog.cgi ?action=get Response localLogLevel= useRemoteLog= addressingFormatType= remoteServerAddress= remoteServerPort= Comment Method - 112 -...

  • Page 122: Getsyslogfile

    5.6 getSyslogFile ActionEvent: getSyslogFile Request http://<IP>/syslog.dump Response Content of syslog. Comment Method 5.7 syslogClear ActionEvent: syslogClear Request http://<IP>/cgi-bin/syslog.cgi?action=clear Response Comment Clear syslog. Method ActionEvent: getSystemStatus Request http://<IP>/cgi-bin/systemStatus.cgi?action=get Response Comment Method - 113 -...

  • Page 123: Admin Api

    Admin API Admin API enables applications to perform administrative tasks on the IPCAM unit. The tasks include add/delete users, upgrade firmware, etc. Data structures Data Structure Description SUserSetting Setting for a user account SUserSetSetting All user accounts SHTTPSetting HTTP setting SHTTPSSetting HTTPS setting ActionEvents...
  • Page 124 setPWDComplexity Set password Complexity. getPWDComplexity Get password Complexity. enum UserPrivilegeType { USER_PRIVILEGE_VIEW=0, USER_PRIVILEGE_ADMIN, USER_PRIVILEGE_REMOTE_VIEW, /* SUserSetting */ typedef struct _userSetting { int index; char username[30]; // Unique key. char password[30]; int privilege; // Administration, Viewer } SUserSetting; /* SUserSetSetting */ typedef struct _userSetList { int size;...

  • Page 125: Adduser

    int port; } SHTTPSetting; /* SHTTPSSetting */ typedef struct _HTTPSSetting { int enabled; int port; } SHTTPSSetting; typedef struct _FWUPGRADE{ char filename[64]; int status; } SFWUPGRADE; typedef struct _ConfigFile{ char filename[64]; } SConfigFile; /* SComplexityPWDSetting */ typedef struct _SSComplexityPWDSetting { int pwdRule1Enabled;...

  • Page 126: Deleteuser

    Response Comment Method POST 6.2 deleteUser ActionEvent: deleteUser Request http://<IP>/cgi-bin/users.cgi action=delete username=<username> Response Comment Method POST 6.3 getUsers ActionEvent: getUsers Request http://<IP>/cgi-bin/users.cgi?action=getUsers Response Size= User1.index= User1.username= User1.password= User1.privilege= … User2.username= User2.password= User2.privilege= Comment Method - 117 -...

  • Page 127: Updateuser

    6.4 updateUser ActionEvent: updateUser Request http://<IP>/cgi-bin/users.cgi action= update index= username=<xxxx> password= privilege= Response Comment Method POST 6.5 setHTTP ActionEvent: setHTTP Request http://<IP>/cgi-bin/http.cgi action= set enabled= port= Response Comment Method POST - 118 -...

  • Page 128: Sethttp/Https

    6.6 setHTTP/HTTPS ActionEvent: setHTTP/HTTPS Request http://<IP>/cgi-bin/http.cgi action= setAll enabled= port= httpsEnabled= httpsPort= Response Comment Method POST 6.7 getHTTP ActionEvent: getHTTP Request http://<IP>/cgi-bin/http.cgi?action= get Response enabled= port= Comment Method 6.8 setHTTPS ActionEvent: setHTTPS Request http://<IP>/cgi-bin/https.cgi action= set enabled= port= Response Comment Method POST - 119 -...

  • Page 129: Gethttps

    6.9 getHTTPS ActionEvent: getHTTPS Request http://<IP>/cgi-bin/https.cgi?action= get Response enabled= port= Comment Method 6.10 resetToDefault ActionEvent: resetToDefault Request http://<IP>/cgi-bin/reset.cgi?action= reset Response Comment Reset all settings to factory default Method 6.11 upgradeFirmware ActionEvent: upgradeFirmware Request http://<IP>/cgi-bin/upgradeFirmware.cgi action= upgrade Followed by the IPCam firmware Response Comment Upgrade the system firmware upon this request...

  • Page 130: Importconfigfile

    GET/POST Method 6.13 importConfigFile ActionEvent: importConfigFile http://<IP>/cgi-bin/ConfigFile.cgi Request action= set filename = Response Comment Method POST 6.14 exportConfigFile ActionEvent: exportConfigFile Request http://<IP>/cgi-bin/ConfigFile.cgi?action= get Response Comment Method 6.15 setPWDComplexity ActionEvent: setPWDComplexity Request http://<IP>/cgi-bin/complexity.cgi action= set pwdRule1Enabled = pwdRule2Enabled = pwdRule3Enabled = Response Comment Method...

  • Page 131: Getpwdcomplexity

    6.16 getPWDComplexity ActionEvent: getPWDComplexity Request http://<IP>/cgi-bin/complexity.cgi?action= get Response pwdRule1Enabled = pwdRule2Enabled = pwdRule3Enabled = Comment Method - 122 -...

  • Page 132: Capability Api (Tbd)

    Capability API (TBD) ActionEvents ActionEvent Description getCapability Get camera Capability. 7.1 getCapability ActionEvent: getCapability Request http://<IP>/cgi-bin/Capability.cgi?action= get Response Streaming.VideoCodec.size=2 Streaming.VideoCodec1=h264 Streaming.VideoCodec2=mjpeg Streaming.name1=h264 Streaming.name1.resolution.size=3 Streaming.name1. resolutionWidth1=320 Streaming.name1. resolutionHeight1=192 Streaming.name1. resolutionWidth2=640 Streaming.name1. resolutionHeight2=400 Streaming.name1. resolutionWidth3=1280 Streaming.name1. resolutionHeight3=800 Streaming.name2=mjpeg Streaming.name2.resolution.size=3 Streaming.name2. resolutionWidth1=320 Streaming.name2. resolutionHeight1=192 Streaming.name2.
  • Page 133 Audio.codec.size=3 Audio.codec1=PCMA Audio.codec2=PCMU Audio.codec3=G.726 Network.Type.size=2 Network.Type1=Wire Network.Type2=Wireless Comment Method - 124 -...

  • Page 134: Motion Detection Api

    Motion detection API Motion detection API allows applications to 1) set/get the motion detection setting Data structures Data Structure Description SMotionDetectionSetti Basic motion detection setting. SMDList List of detection channels. SChannelMotionDetec Keep the information of detection channels. tion SMDRegionList List of detection regions. SMDRegion Keep the information of detection regions.
  • Page 135 typedef struct _MDEntry { int enabled; int channelIndex; //match stream channel index , (Unique) 0: reserved. 1+: valid index int detectionInterval; // The time interval to carry out another MD after previous one. SMDRegionList MDRList; } SMDEntry; typedef struct _MDList { int size;...

  • Page 136: Setmotiondetection

    8.1 setMotionDetection ActionEvent: setMotionDetection Request http://<IP>/cgi-bin/motiondetection.cgi action=set enabled=1 channelIndex detectionInterval= region1.enabled= region1.sensitivity= region1.threshold= region1.x= region1.y= region1.x1= region1.y1= region2.enabled= region2.sensitivity= region2.threshold= region2.x= region2.y= region2.x1= region2.y1= region3.enabled= region3.sensitivity= region3.threshold= ……. Response Comment Method POST - 127 -...

  • Page 137: Getmotiondetection

    8.2 getMotionDetection ActionEvent: getMotionDetection Request http://<IP>/cgi-bin/ motiondetection.cgi?action=getMD&index=<index> enabled=1 Response detectionInterval= region.size region1.enabled= region1.sensitivity= region1.threshold= region1.x= region1.y= region1.x1= region1.y1= region2.enabled= region2.sensitivity= region2.threshold= region2.x= region2.y= region2.x1= region2.y1= region3.enabled= region3.sensitivity= region3.threshold= …… Comment Method - 128 -...

  • Page 138: Getmotiondetections

    8.3 getMotionDetections ActionEvent: getMotionDetections Request http://<IP>/cgi-bin/ motiondetection.cgi?action=get Response size= MD1.enabled=1 MD1.channelIndex MD1.detectionInterval= MD1.region.size MD1.region1.enabled= MD1.region1.sensitivity= MD1.region1.threshold= MD1.region1.x= MD1.region1.y= MD1.region1.x1= MD1.region1.y1= MD1.region2.enabled= MD1.region2.sensitivity= MD1.region2.threshold= MD1.region2.x= MD1.region2.y= MD1.region2.x1= MD1.region2.y1= MD1.region3.enabled= MD1.region3.sensitivity= MD1.region3.threshold= MD1.region3.x= MD1.region3.y= MD1.region3.x1= MD1.region3.y1= …………. Comment Method - 129 -...

  • Page 139: Event Api

    Event API Event API allows applications to 1) set/get the event setting 2) set/get the notification setting Data structures Data Structure Description SEventPolicySetting General setting for events. SEventRuleSettingList List of event rules. SEventRuleSetting Details the setting of each event. SEventScheduleSettin Set up the schedule for triggering events SEmailSetting Details the setting of email.
  • Page 140 Mon:0900-1700,Tue:0900-1700,Wed:0900-1700,Thu:0900-1700,Fri:0900-1700,Sat:0900-170 0,Sun:0900-1700 } SEventScheduleSetting; #define ACTION_NAME_FTP "ftp" #define ACTION_NAME_EMAIL "smtp" #define ACTION_NAME_SAMBA "samba" typedef struct _eventRuleSetting { index; //unique id enabled; char name[10]; unsigned int eventID; /* type of event */ SEventScheduleSetting sched; char actions[128]; /* list of references to action names separated by comma ',' } SEventRuleSetting;...
  • Page 141 /* SEmailSetting */ typedef struct _emailSetting { unsigned char senderAddress[64]; //=> XXX@gmail.com unsigned char receiverAddress1[64]; //=> XXX@brickcom.com.tw // if NULL, disable unsigned char receiverAddress2[64]; //=> YYY@brickcom.com.tw // if NULL, disable unsigned char senderName[64]; //=> IPCAM unsigned char subject[64]; //=> "IPCAM Alert"...
  • Page 142 unsigned int uploadVideoClipEnabled; SFTPServer primary; SFTPServer secondary; } SFTPSetting; /* SAlarmMediaInfo */ typedef struct _mediaInfo { unsigned int snapShotEnabled; unsigned int videoClipEnabled; unsigned int preAlarmInterval; unsigned int postAlarmInterval; } SAlarmMediaInfo; enum EVENT_TYPE_DATA { EVENT_NONE, EVENT_MD, EVENT_IO, EVENT_NETWORK, EVENT_RESOURCE, EVENT_DAEMON, enum NOTIFICATION_METHOD_DATA{ NOTIFICATION_NONE, NOTIFICATION_FTP, NOTIFICATION_MAIL,...
  • Page 143 unsigned char UserName[16]; unsigned char Password[16]; unsigned int AddressType; unsigned char Preserve[12]; unsigned char workGroup[32]; unsigned char shareDIR[32]; } SambaServer; ////////////////////// // Event notification ////////////////////// /* Event subscription */ enum _eventTransportMode { EVENT_TRANSPORT_MODE_PUSH=0, EVENT_TRANSPORT_MODE_PULL=1, /* Event transport type */ enum _eventTransportProtocol { EVENT_TRANSPORT_PROTOCOL_RESERVED=0, EVENT_TRANSPORT_PROTOCOL_UDP=1, EVENT_TRANSPORT_PROTOCOL_TCP=2,...
  • Page 144 unsigned short destPort; } SEventTransportSetting; typedef struct _eventSubscriptionSetting { unsigned int id; /* Subscription ID (unique across system) */ unsigned int leaseTime; /* 0: always active, lease time in second */ // TODO: How to represent time.. SEventTransportSetting transport; } SEventSubscriptionSetting; typedef struct _eventSubscriptionSettingList { int size;...

  • Page 145: Seteventsetting

    9.1 setEventSetting ActionEvent: setEventSetting Request http://<IP>/cgi-bin/event.cgi action= setEventSetting R1index= R1enabled= R1name= R1eventID= R1sched.type= R1sched.time= R1actions= R2index=… … Response Comment Method POST - 136 -...

  • Page 146: Addeventsetting

    9.2 addEventSetting ActionEvent: addEventSetting Request http://<IP>/cgi-bin/event.cgi action= addEventSetting index= enabled= name= eventID= sched.type= sched.time= actions= Response Comment Method POST 9.3 updateEventSetting ActionEvent: updateEventSetting Request http://<IP>/cgi-bin/event.cgi action= updateEventSetting index= enabled= name= eventID= sched.type= sched.time= actions= Response Comment Method POST - 137 -...

  • Page 147: Removeeventsetting

    9.4 removeEventSetting ActionEvent: removeEventSetting http://<IP>/cgi-bin/event.cgi Request action= removeEventSetting index= Response Comment Method POST 9.5 getEventPolicy ActionEvent: getEventPolicy Request http://<IP>/cgi-bin/event.cgi?action=getEventPolicy Response size= R1index= R1enabled= R1name= R1eventID= R1sched.type= R1sched.time= R1actions= R2index=… Comment Method 9.6 getEventRule ActionEvent: getEventRule Request http://<IP>/cgi-bin/event.cgi?action=getEventRule index=0 Response enabled=0 name= eventID=0 - 138 -...

  • Page 148: Setemailsetting

    sched.type=0 sched.time= actions= Comment Method 9.7 setEmailSetting ActionEvent: setEmailSetting Request http://<IP>/cgi-bin/event.cgi action=setEmailSetting senderAddress= receiverAddress1= receiverAddress2= senderName= subject= attachedVideoURLEnabled= attachedSnapShotEnabled= attachedVideoClipEnabled= authenticationMode1= port1= smtpServerHostName1 accountName1= password1= authenticationMode2= port2= smtpServerHostName2= accountName2= password2= Response Comment Method POST - 139 -...

  • Page 149: Getemailsetting

    9.8 getEmailSetting ActionEvent: getEmailSetting Request http://<IP>/cgi-bin/event.cgi?action=getEmailSetting Response senderAddress= receiverAddress1= receiverAddress2= senderName= subject= attachedVideoURLEnabled= attachedSnapShotEnabled= attachedVideoClipEnabled= authenticationMode1= port1= smtpServerHostName1 accountName1= password1= authenticationMode2= port2= smtpServerHostName2= accountName2= password2= Comment Method 9.9 setFTPSetting ActionEvent: setFTPSetting Request http://<IP>/cgi-bin/event.cgi action= setFTPSetting uploadSnapShotEnabled= uploadVideoClipEnabled= addressType1= hostName1= ipAddress1= ipv6Address1= - 140 -...

  • Page 150: Getftpsetting

    port1= accountName1= password1= passiveMode1= addressType2= hostName2= ipAddress2= ipv6Address2= port2= accountName2= password2= passiveMode2= Response Comment Method POST 9.10 getFTPSetting ActionEvent: getFTPSetting Request http://<IP>/cgi-bin/event.cgi?action= getFTPSetting Response uploadSnapShotEnabled= uploadVideoClipEnabled= addressType1= hostName1= ipAddress1= ipv6Address1= port1= accountName1= password1= passiveMode1= addressType2= hostName2= ipAddress2= ipv6Address2= port2= accountName2= - 141 -...

  • Page 151: Setalarmmediainfo

    password2= passiveMode2= Comment Method 9.11 setAlarmMediaInfo ActionEvent: setAlarmMediaInfo http://<IP>/cgi-bin/event.cgi Request action= setAlarmMediaInfo snapShotEnabled = videoClipEnabled = timeBeforeEvent= timeAfterEvent= Response Comment Method POST 9.12 getAlarmMediaInfo ActionEvent: getAlarmMediaInfo Request http://<IP>/cgi-bin/event.cgi?action= getAlarmMediaInfo Response snapShotEnabled = videoClipEnabled = timeBeforeEvent= timeAfterEvent= Comment Method - 142 -...

  • Page 152: Setsamba

    9.13 setSamba ActionEvent: setSamba Request http://<IP>/cgi-bin/event.cgi action= setSamba hostDns= IpAddress= Ipv6Address= UserName= Password= workgroup= shareDIR= addressTyep= Preserve= Response Comment Method POST 9.14 getSamba ActionEvent: getSamba Request http://<IP>/cgi-bin/event.cgi?action= getSamba Response addressType= hostDns= ipAddress= ipv6Address= userName= password= preserve= shareDIR= workGroup= Comment Method - 143 -...

  • Page 153: I/O Control Api

    I/O Control API I/O Control API allows applications to 1) set/get the GPIO setting Data structures Data Structure Description SGPIO General I/O setting. /*GOPI */ enum{ GPIO_DIR_IN, GPIO_DIR_OUT, enum{ GPIO_STATUS_LOW, GPIO_STATUS_HIGH, ActionEvents ActionEvent Description setGPIOSetting Set GPIO setting getGPIOSetting Get GPIO setting getGPIOStatus Get GPIO status 10.1 setGPIOSetting...

  • Page 154: Getgpiosetting

    POST Method 10.2 getGPIOSetting ActionEvent: getGPIOSetting Request http://<IP>/cgi-bin/event.cgi?action= get Response Comment Method 10.3 getGPIOStatus ActionEvent: getGPIOStatus Request http://<IP>/cgi-bin/event.cgi?action= getStatus Response Comment Method - 145 -...

  • Page 155: Msn Api

    MSN API MSN API allows applications to 1) set/get the IP Camera MSNBot setting Data structures Data Structure Description SMsnbot Details the setting of MSNBot. SMsnBuddyList List of msn buddy. MsnBuddy Details the buddy information. /*MSNbot */ typedef struct _MsnBuddy{ int enabled;...

  • Page 156: Setmsnbot

    }SMsnbot; ActionEvents ActionEvent Description setMSNBot Set MSNBot setting getMSNBot Get MSNBot setting 11.1 setMSNBot ActionEvent: setMSNBot Request http://<IP>/cgi-bin/msn.cgi action=set account= passwd= msnOpPasswd= friendlyName= buddy0.enabled= buddy0.account= buddy0.isNotifiedAcnt= buddy1.enabled= buddy1.account= buddy1.isNotifiedAcnt= buddy2.enabled= buddy2.account= buddy2.isNotifiedAcnt= buddy3.enabled= buddy3.account= buddy3.isNotifiedAcnt= buddy4.enabled= buddy4.account= buddy4.isNotifiedAcnt= webcamEnabled= alarmNotifyEnabled= Response Comment POST...

  • Page 157: Getmsnbot

    11.2 getMSNBot ActionEvent: getMSNBot Request http://<IP>/cgi-bin/msn.cgi?action= get Response account= passwd= msnOpPasswd= friendlyName= buddy0.enabled= buddy0.account= buddy0.isNotifiedAcnt= buddy1.enabled= buddy1.account= buddy1.isNotifiedAcnt= buddy2.enabled= buddy2.account= buddy2.isNotifiedAcnt= buddy3.enabled= buddy3.account= buddy3.isNotifiedAcnt= buddy4.enabled= buddy4.account= buddy4.isNotifiedAcnt= webcamEnabled= alarmNotifyEnabled= Comment Method - 148 -...
