Megapixel Cube Network Camera
CB-100A/CB-500A Series
User's Manual
Quality Service Group

Advertisement

Table of Contents
loading

Related Manuals for Brickcom CB-100A Series

Summary of Contents for Brickcom CB-100A Series

  • Page 1 Megapixel Cube Network Camera CB-100A/CB-500A Series User’s Manual Quality Service Group...
  • Page 2 Product name: Network Camera (CB-100A/CB-500A series) Release Date: 2013/7 Manual Revision: V2.3 Web site: www.brickcom.com Email: support@brickcom.com info@brickcom.com ©2013 Brickcom Corporation. All Rights Reserved...

  • Page 3: Table Of Contents

    Table of Contents Before You Use This Product ..................0 FCC Warning ........................0 Regulatory Information ....................1 Product Comparison ....................... 0 Package Contents ......................0 Cube Network Camera Overview..................2 Device Appearance Description ..................4 LED Behavior ........................7 Installation ........................
  • Page 4 EasyLink ....................... 56 Wireless ......................58 HTTP/HTTPS ....................64 Event ........................67 Event Settings ....................67 Motion Detection ....................71 PIR(*) ....................... 72 Audio Detection ....................72 Notifications ......................73 FTP Settings ....................73 E-mail Settings ....................74 Samba Settings ....................74 HTTP Settings ....................

  • Page 5: Before You Use This Product

    Before You Use This Product In many countries, there are laws prohibiting or restricting the use of surveillance devices. This Network Camera is a high-performance, web-ready camera which can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of this camera is legal before installing this unit for its intended use.

  • Page 6: Regulatory Information

    Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 7: Product Comparison

    Product Comparison USB port for Model Name Lens Resolution DI/DO WiFi PoE 3G/ 4G CB-100Ap Board Lens  WCB-100Ap Board Lens CB-100A 1280x800 CB-101Ap Series   Board Lens V2.1 (1/1) CB-102Ap   CS Mount V2.1   CB-500Ap Board Lens ...

  • Page 8: Package Contents

    Package Contents Please check to make sure the product package contains all the accessories listed below. Network Camera b. Product CD c. Camera Stand d. Warranty Card e. Terminal I/O Connector Block (*) f. Easy Installation Guide g. 1.5m White Flat RJ-45 cable h.

  • Page 9: Cube Network Camera Overview

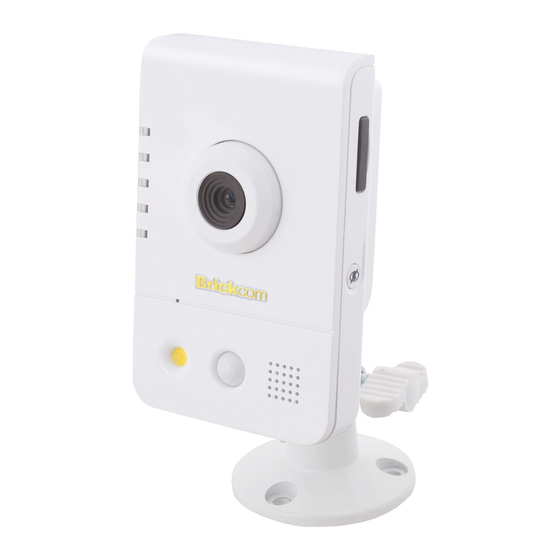

    Cube Network Camera Overview The compact Brickcom CB-100A/CB-500A series Cube network series offers a high quality, video surveillance solution for residences and small businesses. Unlike a general webcam, this camera series is a standalone surveillance system that does not need to be connected to a computer.
  • Page 10 Pet Monitor – The motion detection feature can be used to create forbidden areas in the home which the pet should not enter when the owner is away. If the camera records the pet entering the region, a recorded message can be programmed to play and the owner will be notified via email or MMS.

  • Page 11: Device Appearance Description

    Device Appearance Description  CB-100A Series/CB-500A Series < Front & Rear view > Adjustable focal Lens (*) WPS button (*) Built-in Microphone Privacy button PIR (*) Power LED Illumination LED Status LED Speaker (*) Internet LED Power Connector WPS LED (*)
  • Page 12 Device Appearance Description  CB-500Ap-360p-L < Front & Rear view > Adjustable focal Lens (*) Privacy button Built-in Microphone Power LED PIR (*) Status LED Illumination LED Internet LED Speaker (*) FW Upgrade Led Power Connector Privacy LED Ethernet RJ45 Socket USB Port for 3G/4G Reset Button DIDO Terminal I/O Connector (*)
  • Page 13 NOTE - The WPS and Privacy buttons must first be enabled through the web GUI in order to work. See page 37 for details on how to enable the Privacy button and see page 50 for details on how to enable the WPS Button. 2.

  • Page 14: Led Behavior

    LED Behavior Function LED Behavior Description Remark Power Continuous Illumination Normal Operation (Blue) Power Unlit Powered off (Blue) 1. Connected to switch by Status Continuous Illumination Second (Blue) Ethernet or WiFi. 1. Powered off Status Unlit Second (Blue) 2. No connection 1.
  • Page 15 Hardware Reset Reset Button CB-100A Series CB-500A Series The Reset Button can be used to reboot the camera or restore it to factory default settings. If the camera experiences a problem, rebooting the camera may correct the problem. If the problem remains, please restore the camera to factory default settings and reinstall the software.

  • Page 16: Installation

    Installation System Requirements Operating System: Microsoft Windows XP Home Edition SP2 Microsoft Windows XP Professional SP2 Computer: IBM PC/AT Compatible CPU: Pentium 3GHz or faster Memory: 1024 MB or more Monitor: 1024 x 768 pixels or more, 24-bit True color or better Network Interface: 10/100Mbps Network interface card must be installed Web Browser:...

  • Page 17: Camera Connection

    Basic Connection 1. Connect the supplied power cable from the camera to a power outlet. 2. Connect the camera to a switch using an Ethernet cable. CB-100A Series - 10 -...
  • Page 18 CB-500A Series When powering up, the power LED will light up and the camera will boot up. The status LED will turn amber when the camera is obtaining the IP address. After obtaining the IP address, the link LED will flash orange while the network connection is processing. - 11 -...

  • Page 19: Software Installation

    1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly from the CD-ROM to start the installation. When installing the Brickcom software kit for the first time, select a desired language for the interface. The available languages are listed in the scroll box.
  • Page 20 2. In the Install Shield Wizard dialog box, click <Next> to continue. 3. Read the End-User License Agreement and check the option “I accept the terms of the license agreement”. Click <Next> to continue. - 13 -...
  • Page 21 4. Select either “Complete” setup or “Custom” setup to install the system. a. If COMPLETE SETUP is selected: i. All program features will be installed into the default directory. Check the option “Complete” and then click <Next>. ii. Select to create shortcuts.
  • Page 22 iii. The installation information will be displayed. Click <Next> to continue. b. If CUSTOM SETUP is selected: This option is recommended for advanced users. It can be used to install the system to a preferred directory or to select specific program feature(s). Check the option “Custom”, and then click <Next>.
  • Page 23 iii. Select the features to install. Click <Next> to continue. Click <Change> to change the appointed folder where installation and program files will be stored. Click <Next> to continue. - 16 -...
  • Page 24 v. Select programs to create shortcuts. Click <Next> to continue. vi. The installation information will be displayed. Click <Next> to continue. - 17 -...
  • Page 25 5. To launch EasyConfig or PC-NVR Standard, select the application and click <Finish>. When launching the PC-NVR program, please refer to the PC-NVR user manual. - 18 -...

  • Page 26: Easyconfig

    C:\Program Files\Brickcom\EasyConfig unless the program was saved to a preferred directory. 1. Click <Start> to continue. The program will automatically search for the camera in the intranet. NOTE - Check “Skip the hardware installation guide” to skip checking the hardware connection.
  • Page 27 - 20 -...
  • Page 28 2. Select either “Simple Mode” or “Professional Mode” to obtain the camera’s IP settings. If “Simple Mode” is selected, EasyConfig will set up the connection automatically. If “Professional Mode” is selected, the user will need to configure the IP settings manually. - 21 -...
  • Page 29 3. There may be many cameras in the local network. Differentiate the cameras using their UPnP name. Double click on the camera from the survey list to connect. 4. Enter the username and password of the camera. For first time use, the default username and password are “admin/admin.”...
  • Page 30 5. For configuring the IP address settings, select either <Settings remain the same>, <Automatically obtain an IP Address (DHCP)> or <Set IP Address configuration manually>. The DHCP setting is recommended. a. If <Set IP Address configuration manually> is selected, the following pages will be displayed.
  • Page 31 6. If the camera supports the EasyLink function, the following page will be displayed. Otherwise, this page will not be shown. *If desired, click <Skip> to skip this setting. - 24 -...
  • Page 32 EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses. When this feature is enabled, users can log onto [uniqueEasyLinkname].mybrickcom.com to view the camera’s web GUI and live...
  • Page 33 7. When the IP address settings have been configured, the screen will either display a successful or failed connection message. If the connection failed, either try again or quit the installation. a. If “DHCP IP address settings” was selected, the failure page will be displayed as below: b.
  • Page 34 c. If the connection was successful, the user will see the message: “Congratulations. The installation of the camera is complete.” When this window is displayed, click <PC-NVR> to start the PC-NVR program, <Live View> to view the live video from the connected IP camera, or <X> in the top right corner of the screen to close the installation window.

  • Page 35: Accessing The Network Camera

    Accessing the Network Camera Check Network Settings The camera can be connected either before or immediately after the software installation. The Administrator should complete the network settings on the configuration page, including entering the correct subnet mask and IP address of gateway and DNS. Ask the network administrator or Internet service provider for the detail information.

  • Page 36: Installing The Plug-In

    Installing the Plug-In For the initial access to the camera in Windows, the web browser may prompt the administrator for permission to install a new plug-in for on Internet Explorer. Permission request depends on the Internet security settings of the user’s PC or notebook. If the highest security level is set, the computer may prohibit any installation and execution attempt.

  • Page 37: Live View

    Live View NOTE - (*) These are optional features. Please refer to the Product List for the full list of optional features available for the product. Live View is the default page that opens when accessing the camera. Live video is displayed directly in the browser window.
  • Page 38 TCP - This protocol guarantees the complete delivery of streaming data and provides better video quality. The downside of using this protocol is that the quality of its real-time effect is less than that of the UDP protocol. UDP - This protocol allows for more real-time audio and video streams. However, network packets may be lost due to network burst traffic and images may be broken.
  • Page 39 mode. Full Screen - Switch to full screen mode. Press the “Esc” key to return to normal mode. Motion Detection Alert - Enable the motion detection alert function. Mute – Turn off the sound. Talk(*) – To communicate through the camera using the computer MIC. Set Default –...

  • Page 40: Configuration

    Configuration Click <Configuration> on the main page to change the camera settings pages. NOTE - Only Administrators can access the Configuration page. Camera/Video/Audio Camera Profile – Up to five profiles can be created for different lighting environments. Day and night are default profiles and users can create up to three additional profiles. Select a profile from the drop-down menu or select different icons to change profile settings.
  • Page 41 Exposure Control Auto: The camera will automatically control exposure. Manual: Select this option to define the exposure manually Mirror and Flip Mirror - Enable to horizontally reflect the display of the live video. Flip - Enable to vertically reflect the display of the live video. De-Noise Auto - The camera will automatically filter the frame-to-frame defects to reduce the visual impact of blur.

  • Page 42: Video

    Schedule – Select Schedule to schedule specific time periods for different profiles. Digital Inputs (Only available with models with a DI terminal)- Select Digital Input to have the profile management controlled by an external sensor. Select profiles from the drop down menu.
  • Page 43 Stream 1 & Stream 2 Aspect Ratio – Select the width to height image aspect ratio. Video Codec - The Network Camera offers three choices of video codec standards for real-time viewing: H.264, MPEG-4 and MJPEG. Video Resolution - Select from the drop-down menu to choose the best resolution recording settings.
  • Page 44 RTP with Quantization Table Header : Choose this option to explicitly include JPEG quantization table in the RTP stream [RFC 2435, section 3.1.8]. HTTP Transport: If MJPEG is used for Video Codec, HTTP Transport protocol must be enabled to remotely access the video stream. NOTE - a higher bitrate will use higher network bandwidth.
  • Page 45 RTSP Server To utilize RTSP authentication, the user must first set a password for the camera. RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default the port number is set to 554. Authentication - Depending on the network security requirements, the camera provides two types of security settings for streaming via RTSP protocol: NONE and DIGEST.

  • Page 46: Audio

    Recording folder path - The destination for saving the recording video files. Click Browse to specify the saving path. Snapshot folder path - The destination for saving the snapshot files. Click Browse to specify the saving path and select the format from the drop-down menu. Advanced Settings Video usability information (VUI)- Enable this feature to insert extra information into the bit stream to enhance the use of the video for a wide variety of purposes.

  • Page 47: Multicast

    Advanced Settings Camera Speaker – If the speaker is enabled, select the volume from the drop-down menu. Echo Cancellation Enabled - Enable to avoid an echo. Click Apply to apply settings or Cancel to cancel changes. Multicast Multicast sends a video stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.

  • Page 48: Privacy Mask Control

    Protocol) controls the delivery of streaming media. Click “Enable” to enable Multicast stream 1 or Multicast stream 2. The default value for multicast address and port are 234.1.2.3 and 10000. Use different port number for different streams. It is recommended to use the default values. NOTE - Using the IP address of the Network Camera enables access to the video.

  • Page 49: Enabling De-Warp Function For Camera

    Enabling De-Warp Function For Camera From the camera search list, select the camera you wish to add. Enter the username and password for the camera (the default username is admin and the default password is admin), then click Add. Drag the camera from the camera tree list to the live view window. The live view window will show the camera's image as below.
  • Page 50 Click and choose Settings in the menu. In Panorama Settings, click Enable and select the lens type of the selected camera. - 43 -...
  • Page 51  Immervision A8TRT: For the 360P cameras (ex: MD-300Np-360P), please select Immervision A8TRT. In the preview window, you can see an oval image with the black background. If you do not get the oval image, the de-warp function will not work properly. Click OK to save and apply the panorama settings.
  • Page 52  FishEye: For the 360C cameras (ex: MD-300Np-360C), please select FishEye. In the preview window, you can see a circular image with the black background. If you do not get the circular image, the de-warp function will not work properly. Click OK to save and apply the panorama settings.
  • Page 53  Immervision A0**V: If you have a CS-mount ImmerVision Panomorph lens and want to use it with the camera (ex: CB-502Ap), please select Immervision A0**V. In the preview window, you can see an oval image with the black background. If you do not get the oval image, the de-warp function will not work properly.
  • Page 54 On the BRC64 PC-NVR, you can use the mouse or the software control panel to perform the PTZ (pan, tilt, zoom) operations. For the mouse-based PTZ control, the drag operation of the mouse changes the viewing direction, and the mouse wheel does the zoom-in and zoom-out of the image.
  • Page 55 The BRC64 PC-NVR offers a few display modes for the FishEye / Immervision A0**V / Immervision A8TRT cameras, such as the normal PTZ-capable display, simultaneous quadruple PTZ-capable display, and the 180° perimeter display. To select the display mode, please right click on the FishEye / Immervision A0**V / Immervision A8TRT camera image for the menu to pop up.
  • Page 56 PTZ Control Panel: Click the PTZ Setting button (marked by 1 on the picture) on the control panel to show the PTZ control section (marked by 2 on the picture). The PTZ control section consists of 8 directions and the Home button at the center. Click the direction buttons to change the viewing direction on the image.
  • Page 57 On the PTZ control section, click the arrow (marked by 3 on the picture) for the Preset Point and Patrol section to come up. To set up the pre-set point(s): 1. Determine the desired viewing direction and zoom level using the PTZ commands.
  • Page 58 3. When a patrol rule is selected, in the Edit Patrol section the user can see which pre-set points are included and put in order for the patrol rule. The user can select the desired pre-set point(s) on the drop-down list in the Edit Patrol section, then click to add a pre-set point to the patrol rule, or click to delete a pre-set point from the patrol rule.

  • Page 59: Network

    Network IP Settings This section explains how to configure a wired network connection for the camera. There are several ways to setup the camera over the Internet: (1) obtain an available dynamic IP address assigned by a DHCP server, (2) use a static IP, or use PPPoE (Point-to-point over Ethernet). Select the desire setup mode from the IP settings drop-down menu.
  • Page 60 3. PPPoE (Point-to-point over Ethernet): Use this mode if connecting to the Internet through a DSL Line. NOTE - To utilize this feature, it requires an account provided by an Internet Service Provider. Enter the user name and password provided by the ISP. Click Apply to apply settings or Cancel to cancel changes.

  • Page 61: Upnp

    d. The network camera can now be accessed over a 3G network. To access the video feed through the internet, open a web browser and enter the network camera’s IP address. A dialog window will pop up requesting a username and password. As stated on the previous page, the default username and password for the Administrator account are “admin/admin”...

  • Page 62: Ddns (Dynamic Domain Name Service)

    DDNS DDNS links a domain name to an IP address, allowing users to easily access their camera even with a changing IP address. Brickcom network cameras are compatible with three DDNS service providers (1) DynDNS, (2) TZO, and (3) No-IP.

  • Page 63: Easylink

    EasyLink EasyLink is a unique Brickcom function which allows users to assign a unique EasyLink name to their network camera’s IP address. There is no need to configure the router to open up ports or remember hard-to-memorize IP addresses. When this function is enabled, users can log onto [uniqueEasyLinkname].mybrickcom.com to view the camera’s web GUI and live...
  • Page 64 4. If Manual mode is selected, the following page will be displayed. a. Manually enter the Public IP Address, HTTP port and RTSP port or leave the default values. Click Apply to apply settings or Cancel to cancel changes. NOTE - The EasyLink function will not work if the following conditions occur: 1.

  • Page 65: Wireless

    Wireless devices have a default SSID set by the factory. Brickcom wireless products use Brickcom as the default name. It is recommended for users to rename their SSID to something unique in order to distinguish their wireless device from surrounding wireless networks.
  • Page 66 Security - Encryption protects data transmitted over a wireless network. Wi-Fi Protected Access (WPA-Personal/WPA2-personal) and Wired Equivalent Privacy (WEP) offer different levels security wireless communication. network encrypted with WPA-Personal/WPA2-personal is more secure than a network encrypted with WEP because WPA-Personal/WPA2-personal uses dynamic key encryption. To protect the information as it passes through the airwaves, it is recommended to enable the highest level of encryption supported by the network equipment.
  • Page 67 WEP- Wired Equivalent Privacy (WEP) is a basic encryption method which transmits network broadcast messages using radio signals. It is not as secure as WPA. Tx Key - Select a key from the drop-down menu. WEP Encryption - Select a level of WEP encryption: 64 bits 10 hex digits or 128 bits 26 hex digits.
  • Page 68 WPA-Personal - WiFi Protected Access (WPA)-Personal Encryption - Supports two encryption methods with dynamic encryption keys: Temporal Key Integrity Protocol (TKIP) and Advanced Encryption Standard (AES). Select the algorithm type from the drop down menu: TKIP or AES. The default is TKIP. Shared Key - Enter the key shared between the Router and the server keys.
  • Page 69 WPA2-Persona l - WiFi Protected Access (WPA2-Personal) Encryption - WPA2 supports AES encryption method with dynamic encryption keys. Shared Key - Enter the key shared between the Router and the server keys. Enter a password of 8-63 characters. NOTE - If using WPA or WPA2, each device in the wireless network must use the same WPA or WPA2 method and shared key or else the network will not function properly.
  • Page 70 Advanced Settings Network Mode - From the drop-down menu, select the wireless standards running on the network.  If there are Wireless-B, Wireless-G and Wireless-N (2.4GHz) devices on the network, use the default setting, BGN-Mixed.  If there are Wireless-B and Wireless-G devices on the network, select BG-Mixed. ...

  • Page 71: Http/Https

    Wi-Fi Protected Setup Use this method if the client device has a Wi-Fi Protected Setup PIN number. 1. Enter the network name from the device in the field. 2. Click <Register> to start WPS. 3. Click “Enable” to enable the WPS Button. If this feature is not enabled, the user will not be able to use the WPS button Click Apply to apply settings or Cancel to cancel changes.
  • Page 72 To enable HTTPS, users have to create and install a certificate. 1. Click “Continue to this website” to install. 2. Enter the User name and Password of the camera. - 65 -...
  • Page 73 3. Click “Certificate Error” on the top right corner of the window to view the certificate. 4. Click “Install Certificate” and follow the steps to finish the installation. - 66 -...

  • Page 74: Event

    Event Event Settings When an event (such as unauthorized movement) occurs, the camera can be scheduled to perform certain actions. An Event Type is a set of parameters that defines these actions. This section describes how to configure the camera to perform certain actions when events occur.
  • Page 75 2. Set Event Schedule to define when the event is activated by selecting from Always (24 hours), Schedule or Recurrence pattern. If Schedule is selected from the Event Schedule, the following page will be displayed: A Scheduled Event can be programmed for certain times and day. Click individual boxes to schedule specific times for the camera to detect events.
  • Page 76 i. An event schedule can be programmed to recur at different times according to the user’s needs. Select the days for the event schedule to occur. Select a start time and specify the duration. 3. Define what will trigger an event to occur by selecting an option from the Event drop-down list.
  • Page 77 a. When <Send to Email> is selected, the following page will be shown: i. Sender - Enter the email address of the sender. ii. Recipient - Enter the email address of the recipient. To enter multiple recipients, separate each using a comma. iii.

  • Page 78: Motion Detection

    Motion Detection Motion can be detected by measuring changes in the speed or vector of an object or objects in the monitored area. This section explains how to configure the Network Camera to enable motion detection. Detection Setting – Use this setting to enable and define the motion detection windows. The user can defined up to three areas on the live view window for motion detection.

  • Page 79: Pir(*)

    PIR(*) The PIR (Passive InfraRed) sensor measures infrared light radiating from objects in its field of view. This can be used to detect a moving object, such as a person, in dimly lit areas. Sensitivity – Adjust the sensitivity of the PIR Sensor from the drop down menu. The sensitivity can be set from 10 - 100%;...

  • Page 80: Notifications

    Notifications Use the tools in this section to specify what type of notification will be sent when an event occurs. The camera can send buffered images to an FTP server, Samba, Email, or HTTP. FTP Settings File Transfer Protocol (FTP) is used as an application component to automatically transfer files for program internal functions.

  • Page 81: E-Mail Settings

    E-mail Settings Select “Primary Email Server” option from the Server Selection drop down menu to send media files to an email server when an event is triggered. SMTP Server - Enter the server host name of the email server. SMTP Port - Enter the port number of the email server; by default, the SMTP port is set to Authentication - Select the authentication type from the drop-down menu.

  • Page 82: Http Settings

    HTTP Settings Select this option to send the media files via an HTTP notification when an event is triggered. URL –Specify the URL to send HTTP requests. The URL is normally written as: http://ip_address/ notification.cgi?parameter ip_address – type the IP address or host name of the HTTP host. Parameter –...

  • Page 83: Video Clip

    Video Clip This function is used to determine when video clips will be recorded and stored after an event is triggered. Pre-alarm buffer - Images can be stored internally on the server from the time immediately preceding the trigger. Enter the desired length of time. Post-alarm buffer - Images can be stored internally on the server from the time immediately following the trigger.

  • Page 84: Audio Clip(*)

    Audio Clip(*) Audio Recording – Audio clips can be recording and played when an event occurs. Click Browse to import a file from a local hard drive or network disk. Select the file and click Import. NOTE – The camera can only play audio clips which are saved as .wav files with G.711 u-law encoding in 8000 Hz sampling rate.

  • Page 85: Led Light(*)

    LED Light(*) Mode – Select “Keep active during event” or “Keep active for” a specific amount of time when an event is triggered. LED Control - The LED on the front of the camera can be set to flash at a configurable interval when an event is triggered.

  • Page 86: System

    System System Log Log – Set up the camera to record a system log when an event is triggered. This page displays the system’s log in chronological order. The system log is stored in the camera’s buffer area and will be overwritten when the buffer area is full. Click Retrieve to retrieve the log or click Save to file to save the system log.

  • Page 87: Date And Time

    Remote Logging The user can configure the camera to send the system log file to a remote server as a log backup. Click to enable remote log and enter the IP address of the remote server. Enter the port number of the remote server. Click Apply to apply settings or Cancel to cancel changes.

  • Page 88: Device Information

    Device Information System Information – Displays the complete system information of the camera. Network Settings –Displays the complete network settings information of the camera. Video/Audio Settings –Displays the complete video/audio settings information of the camera. - 81 -...
  • Page 89 Wireless - Displays the complete wireless information of the camera. Client Information- Displays the RTSP Client .You will see a list of RTSP clients with the following information: IP Address and channel. - 82 -...

  • Page 90: Storage Management(*)

    Storage Management (*) Storage Management is used to view all the recorded files on the Micro-SD/SDHC card. Click Reload to refresh the list of recorded files. Click Remove to safely remove the Micro-SD/SDHC memory card. Click Format to format the Micro-SD/SDHC memory card. Left click on the folder to list the recorded files.

  • Page 91: Led Indicators

    Advanced Settings Automatic Recycle (*) – Enable to automatically overwrite older files when the available space remaining on the Micro-SD/SDHC card is less than 100MB. If the Automatic Recycle function is disabled, there must be at least 50MB hard drive space available for the camera to be able to record video files.
  • Page 92 this function. Click Apply to apply settings or Cancel to cancel changes. - 85 -...

  • Page 93: Maintenance

    Maintenance User Management This section explains how to enable password protection and create multiple accounts. The administrator account name is “admin”, which is permanent and cannot be deleted. Click Add to create an account. Enter the new user’s name, password and confirm password. Administrators can add up to 10 user accounts.

  • Page 94: Language

    Administrator - user has access to view and change the Configuration page. Users with  administrator privilege can change other user’s access rights and delete user accounts. Click Delete or Update to delete or modify a user’s account. Viewer - user can only access the main page for live viewing. ...

  • Page 95: Firmware Upgrade

    Firmware Upgrade This feature allows the user to upgrade the camera firmware. It will take a few minutes to complete the process. NOTE - Do not power off the camera or camera during the upgrade. Upgrade - Click Browse… and specify the firmware file. Click Upgrade. The camera will begin upgrading and will reboot automatically when the upgrade is finished.

  • Page 96: Reset To Default

    Reset to Default This section is used to restore the camera to default factory settings. Check the boxes to preserve the IP, Wireless, Date and Time, EasyLink, or Language settings. Click Apply to restore the camera to default factory settings. Reboot This feature will reboot the camera.
